Product Details
Place of Origin: China
Brand Name: Warom
Certification: GB;IEC;EN;GOST
Model Number: FAZ-G
Payment & Shipping Terms
Packaging Details: carton packing/wooden box package
Payment Terms: T/T

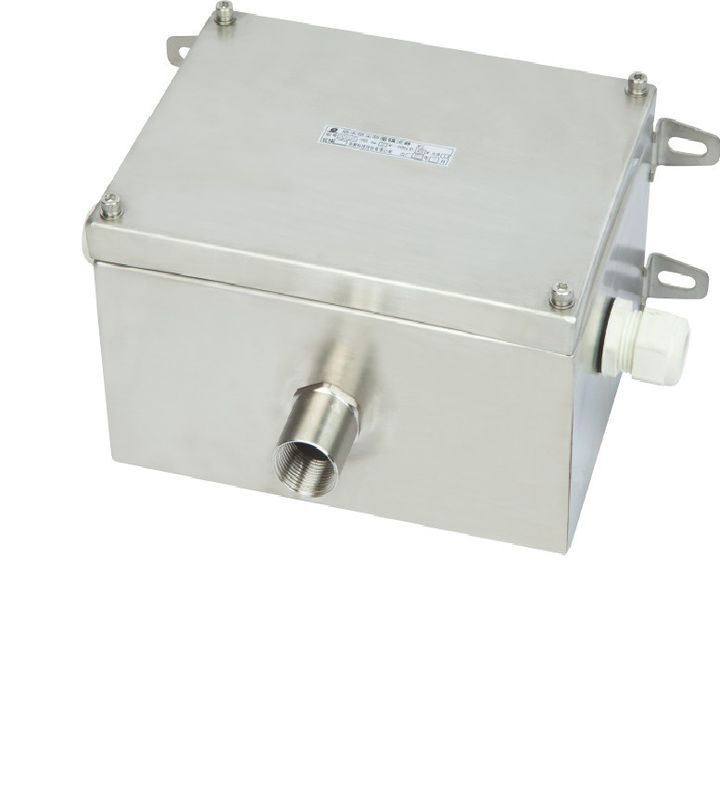

FAZ-G Enclosure: |
Is Made Of High Quality Stainless Steel Through Bending And Welding |
Used As: |
Terminal Box And Branching Box, Together With Single One Lamp, High Power Factor, CosФ0.90 |
The Technical Parameters Of Built-in Ballast: |
The Technical Parameters Of Built-in Ballast Are The Same As Philips,Osram And Yaming Lamp, So Philips, Osram, Yaming Lamp Is Recommended. |
Degree Of Protection: |
IP66 |
FAZ-G Enclosure: |
Is Made Of High Quality Stainless Steel Through Bending And Welding |
Used As: |
Terminal Box And Branching Box, Together With Single One Lamp, High Power Factor, CosФ0.90 |
The Technical Parameters Of Built-in Ballast: |
The Technical Parameters Of Built-in Ballast Are The Same As Philips,Osram And Yaming Lamp, So Philips, Osram, Yaming Lamp Is Recommended. |
Degree Of Protection: |
IP66 |
Product Introduction
Model Specifications | Rated power(W) | Enclosure type | Weight(kg) |
FAZ-G-G80 | 80 | Ⅰ | 3.0 |
FAZ-G-G125 | 125 | 3.6 | |
FAZ-G-L70 | 70 | 3.2 | |
FAZ-G-L100 | 100 | 3.6 | |
FAZ-G-L150 | 150 | 3.6 | |
FAZ-G-N70 | 70 | 3.0 | |
FAZ-G-N100 | 100 | 3.6 | |
FAZ-G-N110 | 110 | 3.6 | |
FAZ-G-N150 | 150 | 3.8 | |
FAZ-G-G175 | 175 | 3.8 | |
FAZ-G-G250 | 250 | 3.9 | |
FAZ-G-L250 | 250 | 3.9 | |
FAZ-G-N250 | 250 | Ⅱ | 4.7 |
FAZ-G-N400 | 400 | 6.5 | |
FAZ-G-L400 | 400 | 4.9 | |
FAZ-G-G400 | 400 | 4.7 |
Degree of protection | IP66 |
Cable gland | suitable for cable of φ10mm~φ14mm |
FAZ-G Series Weatherproof Ballasts
(Download here:FAZ-G Series Weatherproof Ballasts.pdf)
