Product Details
Place of Origin: China
Brand Name: Warom
Certification: GB;IEC;EN;GOST
Model Number: FAM-E
Payment & Shipping Terms
Packaging Details: carton packing/wooden box package
Payment Terms: T/T
Enclosure Material: |
Aluminium Alloy Heat Dissipation |
Cover Material: |
Tempered Glass |
Installation Method: |
Pole-mounted |
Light Source: |
LED |
Voltage: |
220V |
Operating Temperature: |
-40°C To 50°C |
Ip Rating: |
IP66 |
Enclosure Material: |
Aluminium Alloy Heat Dissipation |
Cover Material: |
Tempered Glass |
Installation Method: |
Pole-mounted |
Light Source: |
LED |
Voltage: |
220V |
Operating Temperature: |
-40°C To 50°C |
Ip Rating: |
IP66 |
| Model Specifications | FAM-E01 80 | FAM-E01 100 | FAM-E01 120 | FAM-E01 160 | FAM-E01 200 | FAM-E02 80 | FAM-E02 100 | FAM-E02 120 | FAM-E02 150 | FAM-E02 180 |
| Enclosure type | Light fitting 01 | Light fitting 02 | ||||||||
| Ⅰ | Ⅱ | Ⅲ | Ⅰ | Ⅱ | ||||||
| Lamp power | 80W | 100W | 120W | 160W | 200W | 80W | 100W | 120W | 150W | 180W |
| Lamp luminous flux | ≥8800lm | ≥11000lm | ≥13200lm | ≥17600lm | ≥22000lm | ≥8800lm | ≥11000lm | ≥13200lm | ≥16500lm | ≥21000lm |
| Weight | 4.7kg | 7.4kg | 7.5kg | 10.7kg | 10.9kg | 4.2kg | 4.3kg | 4.5kg | 5.5kg | 5.7kg |
| Rated voltage |
220V AC 50/60Hz(GB) |
| Ambient temperature | -40℃～+55℃ ( -60℃～+60℃ is optional) |
| Degree of protection | IP66 |

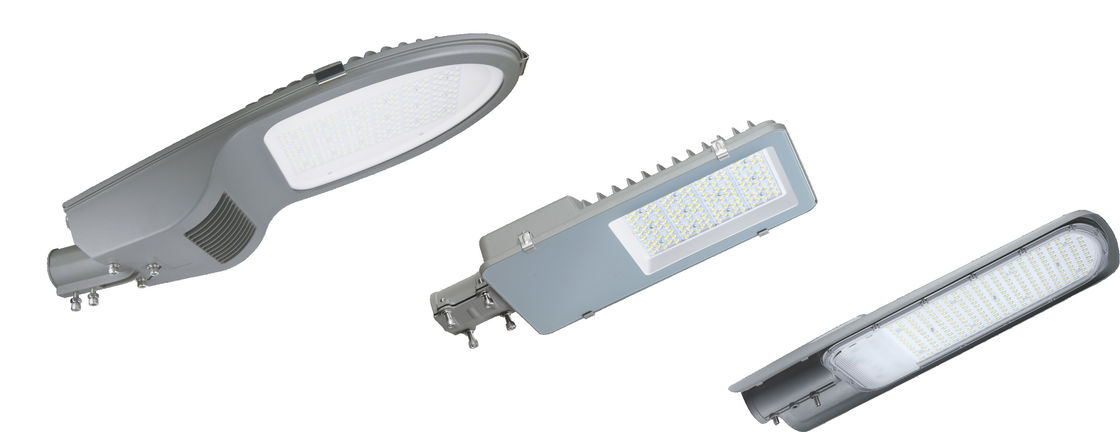

FAM-E Series High Efficiency Energy-saving LED Street Lamps
(Download here:FAM-E Series High Efficiency Energy-saving LED Street Lamps.pdf)
