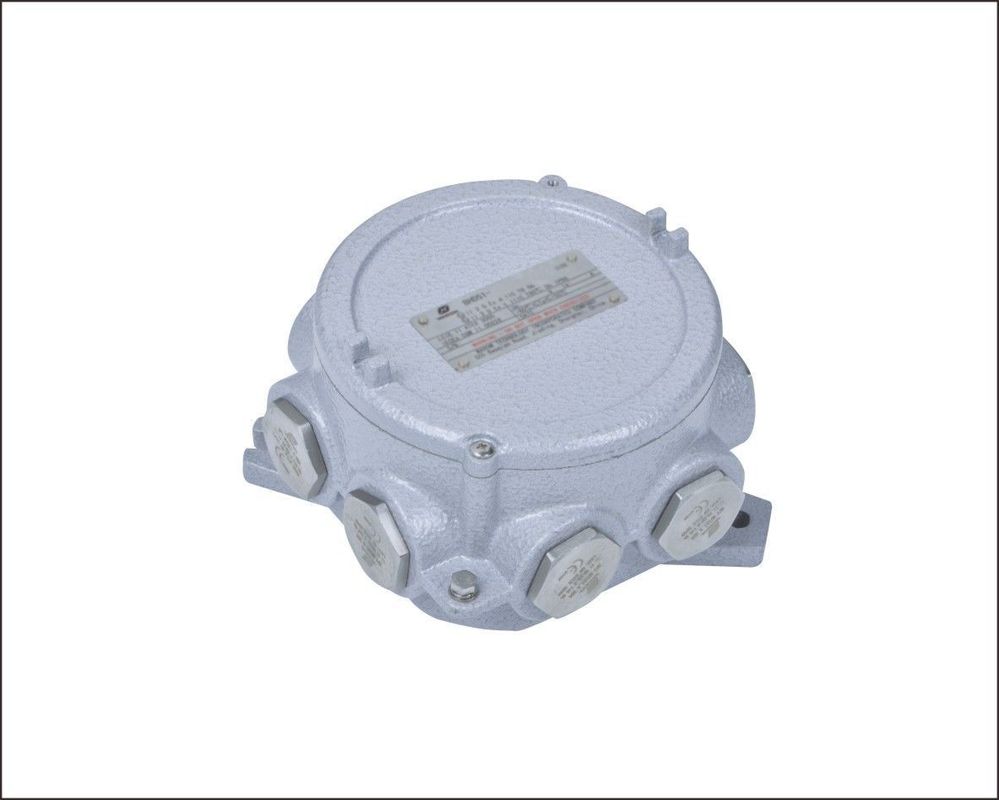

BHD91 Series Round Explosion Proof Electrical Junction Box IP66 IECEx ATEX Certificated

Product Details

Place of Origin: China

Brand Name: Warom

Certification: IECEx; ATEX; CU-TR;UL

Model Number: BHD91

Payment & Shipping Terms

Packaging Details: carton packing/wooden box package

Payment Terms: T/T

Get Best Price
Contact Now
Specifications
Highlight:

atex certificated ex proof junction box

,

IP66 round explosion proof junction box

,

IECEx explosion proof electrical junction box

Explosion Protection Standards:
CENELEC,IEC,NEC
Can Be Used In:
Zone1,2,21,22,Class I,Zone 1,2.Class I,Division 1,Groups A,B,C,D
Four Types:
A,B,C,D Copper-free Aluminium Alloy Enclosure, Powder Coated Surface
Explosion Protection Standards:
CENELEC,IEC,NEC
Can Be Used In:
Zone1,2,21,22,Class I,Zone 1,2.Class I,Division 1,Groups A,B,C,D
Four Types:
A,B,C,D Copper-free Aluminium Alloy Enclosure, Powder Coated Surface
Description
BHD91 Series Round Explosion Proof Electrical Junction Box IP66 IECEx ATEX Certificated



Product Introduction

20190704150330439.jpg@!w400






Specification
Global (IECEx) IECEx CQM 15.0061X
Gas and dust Ex db IIC T6 Gb
  Ex tb IIIC T80℃ Db IP66
Europe (ATEX) CNEX 16 ATEX 0006
Gas and dust 20190603152349458.jpg@!w400 II 2 G Ex db IIC T6 Gb
  20190603152349458.jpg@!w400 II 2 D Ex tb IIIC T80℃ Db IP66
Certificates IECEx; ATEX; CU-TR;UL
Conformity to standards EN;IEC
Degree of protection IP66
Ambient temperature -60℃~+60℃



Data
Material Copper-free Aluminium Alloy, powder coated surface
Weight 1.2kg
Dimensions 146mm×163mm×100mm
Enclosure colour Window grey (RAL7040)
Exposed fastener Stainless steel
Rated voltage Max. 500V AC
Rated current 24A, 32A, 41A
Internal&external earthing M5/M5
Cable gland(optional) DQM-II(Ex d), DQM-III(Ex d)



Download

BHD91 Series Explosion-proof Junction Boxes

(Download here:icon_pdf.gifBHD91 Series Explosion-proof Junction Boxes.pdf)



Global (IECEx): IECEx CQM 15.0061X

(Download here:icon_pdf.gifIECEx CQM 15.0061X )
