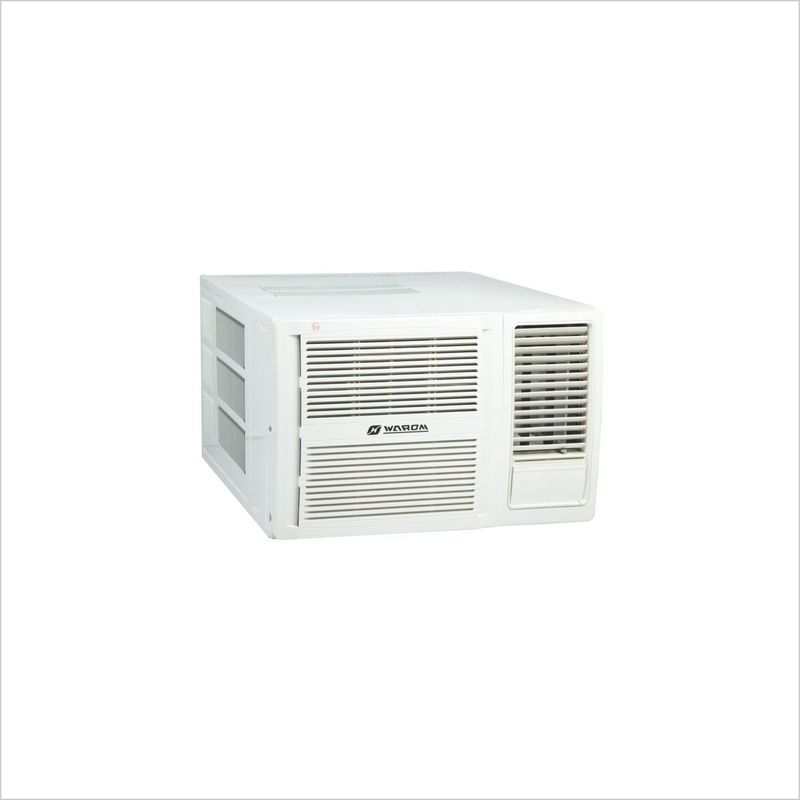

BKC Series Explosion Proof Window Air Conditioners 5400W 7000W For Zone 2

Product Details

Place of Origin: China

Brand Name: Warom

Certification: IECEx; ATEX; CU-TR

Model Number: BKC

Payment & Shipping Terms

Packaging Details: carton packing/wooden box package

Payment Terms: T/T

Get Best Price
Contact Now
Specifications
Highlight:

explosion proof window air conditioners

,

zone 2 explosion proof ac

,

ex proof air conditioner

Explosion Protection:
CENELEC,IEC,NEC
Can Be Used In:
Zone 2
Warranty:
1 Year
Power Supply:
220-240V, 50Hz
Cooling Capacity:
18000 BTU 24000 BTU
Dimensions:
730 X 680 X 450
Cooling Power Consumption:
5400W 7000W
Filter Type:
Anti-Bacterial
Explosion Protection:
CENELEC,IEC,NEC
Can Be Used In:
Zone 2
Warranty:
1 Year
Power Supply:
220-240V, 50Hz
Cooling Capacity:
18000 BTU 24000 BTU
Dimensions:
730 X 680 X 450
Cooling Power Consumption:
5400W 7000W
Filter Type:
Anti-Bacterial
Description
BKC Series Explosion Proof Window Air Conditioners 5400W 7000W For Zone 2
Product Introduction

20190618095603300.png@!w400




Specification
Global (IECEx) IECEx CQM 11.0021X
Gas Ex d nC IIB T4 Gc
Europe (ATEX) LCIE 11 ATEX 1002X
Gas 20190620162533962.jpg@!w400 II 3 G Ex d nC IIB T4 Gc
Certificates IECEx; ATEX; CU-TR
Conformity to standards EN;IEC



Data
Type BKC-50/220 BKC-70/220
Cooling capacity W 5400 7000
BTU 18000 24000
Rated voltage/Frequency (V/Hz) 220~240/50 220~240/50
Input power (P) 2P 3P
Cooling input power (W) 2750 3770
Rated current (A) 12.8 17.4
Application areas (m²) 22~32 30~40
Sound level (dB) Indoor unit ≤53 ≤57
Outdoor unit ≤60 ≤63
Outline dimensions (L x W x H) (mm) 730 x 680 x 450 730 x 680 x 450
Weight (kg) 50.00 55.00

Note: The above technical data is for normally supplied products of T3 (-7℃~+55℃) temperature class, voltage is

              220~240V AC/50Hz, other voltages are available, such as 220~240V AC/60Hz, please specify when ordering.

              The above data is only for reference, the actual product shall prevail.



Download

BKC Series Explosion-proof Window Air Conditioners

(Download here:icon_pdf.gifBKC Series Explosion-proof Window Air Conditioners.)



Global (IECEx): IECEx CQM 11.0021X

(Download here:icon_pdf.gifIECEx CQM 11.0021X )
