Product Details
Place of Origin: China
Brand Name: Warom
Certification: CCS,BV,ABS
Model Number: CBY20-1
Payment & Shipping Terms
Packaging Details: carton packing/wooden box package
Payment Terms: T/T
Application: |
Accommodations, Passage And Corresponding Areas |
Housing: |
High Quality Steel Plate With White Plastic Powder Sprayed On The Surface |
Cover: |
Milk White PC Material |
Mounting: |
Fix By Means Of 4×Φ5mm Mounting Holes |
Application: |
Accommodations, Passage And Corresponding Areas |
Housing: |
High Quality Steel Plate With White Plastic Powder Sprayed On The Surface |
Cover: |
Milk White PC Material |
Mounting: |
Fix By Means Of 4×Φ5mm Mounting Holes |
Technical parameters | |
Conformity to standards | IEC60598, IEC60092-306, CCS standard |
Ambient temperature | -25℃~+55℃ |
Light source | LED module |
Lamp holder | T5, G13 |
Degree of protection | IP44 |
Cable entris | Φ10~Φ14mm cable |
Terminal |
3×1.5~4mm2 |

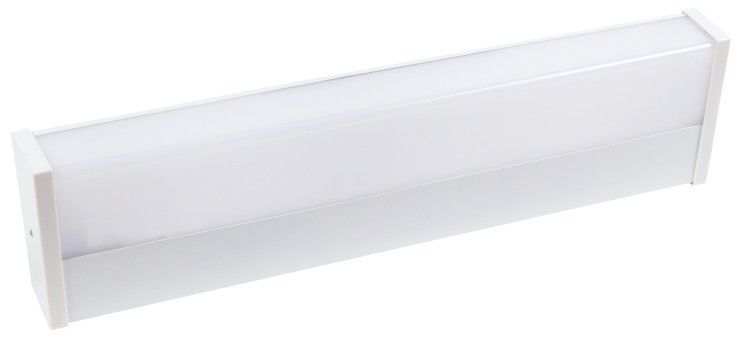

CBY20-1 Fluorescent Wall Light
(Download here:CBY20-1 Fluorescent Wall Light.pdf)
