Product Details
Place of Origin: China
Brand Name: Warom
Certification: CCS,BV,ABS,GB(EX)
Model Number: BSZD85
Payment & Shipping Terms
Packaging Details: carton packing/wooden box package
Payment Terms: T/T
Application: |
Widely Used For Aircraft Abstruction Indication Of Tall Facilities Or Buildings In Variousmarine Platforms, Chemical Tankers, LNG Ships And Hazardous Cargo Wharfs |
Explosive Hazardous Atmosphere: |
Zone 1, Zone 2, Zone 21, Zone 22 |
Housing: |
High Quality Maritime Aluminum Alloy, Powder Coated On Surface |
Cover: |
Toughened Glass |
Electric: |
Equipped With An Integrated Chip, With A Variety Of Protection Circuits, Multiple Luminaires Syn-chronous Flashing Can Be Achieved By Syn-chronizing Signal Line Connection. |
Options: |
With Solar Panel Y: Wired Sync T: Wireless Sync |
Application: |
Widely Used For Aircraft Abstruction Indication Of Tall Facilities Or Buildings In Variousmarine Platforms, Chemical Tankers, LNG Ships And Hazardous Cargo Wharfs |
Explosive Hazardous Atmosphere: |
Zone 1, Zone 2, Zone 21, Zone 22 |
Housing: |
High Quality Maritime Aluminum Alloy, Powder Coated On Surface |
Cover: |
Toughened Glass |
Electric: |
Equipped With An Integrated Chip, With A Variety Of Protection Circuits, Multiple Luminaires Syn-chronous Flashing Can Be Achieved By Syn-chronizing Signal Line Connection. |
Options: |
With Solar Panel Y: Wired Sync T: Wireless Sync |
| Technical parameters | |
| Conformity to standards | IEC60079, EN60079, GB3836, GB12476, CCS standard |
| Ambient temperature | -40℃~+65℃/70℃ |
| Light source | LED module/Xenon lamp |
| Degree of protection | IP66 |
| Corrosion-proof | WF2 |
| Cable entry |
BSZD85-E: 2xM25x1.5 plug (Aluminum alloy), BSZD85-℃: 4xG3/4" plug (Aluminum alloy) BSZD85-G: 4xG3/4' plug (Aluminum alloy), BSZD85-GA: 4xM25x1.5 plug (Aluminum alloy),DOM-I/l gland (Nickel plated brass) is recommended, suitable for Ф12.5- 0 20.5mm cable |
| Terminal | 1.5×2.5mm2 |

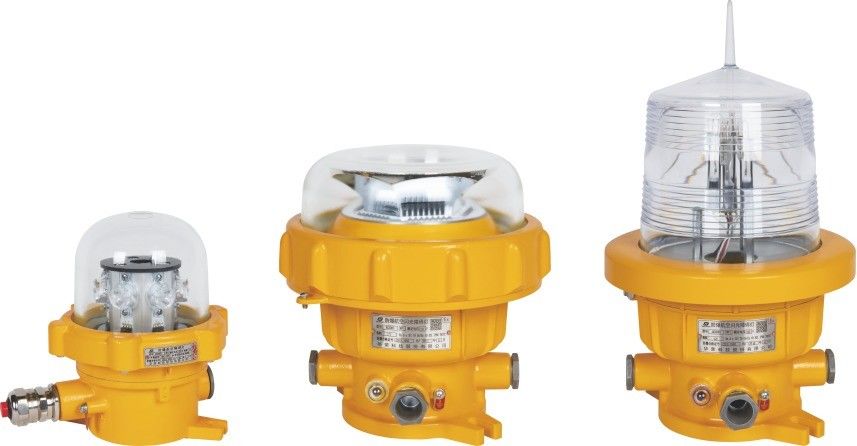

BSZD85 Explosion-proof Aviation Obstruction Light
(Download here:BSZD85 Explosion-proof Aviation Obstruction Light.pdf)
