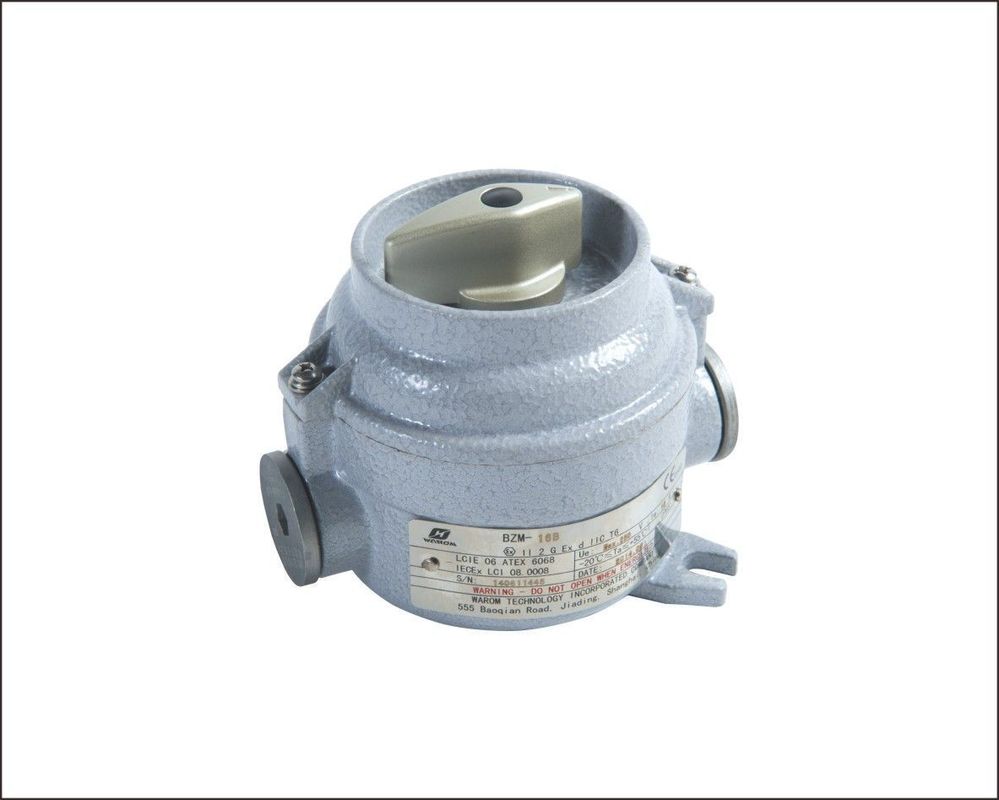

BZM Series Explosion Proof Illumination Switches Electrical Switches Powder Coated Surface

Product Details

Place of Origin: China

Brand Name: Warom

Certification: IECEx; ATEX; CU-TR

Model Number: BZM

Payment & Shipping Terms

Packaging Details: carton packing/wooden box package

Payment Terms: T/T

Get Best Price
Contact Now
Specifications
Highlight:

IP66 explosion proof illumination switches

,

IEC explosion proof electrical switches

,

powder coated explosion proof light switch

Explosion Protection:
CENELEC,IEC,NEC
Can Be Used In:
Zone1,2,21,22,Class I,Zone 1,2.Class I,Division 1,Groups A,B,C,D
Enclosure:
Copper-free Aluminium Alloy Enclosure, Powder Coated Surface.
Two Options:
-On-off Switch -Changeover Switch
Type:
Explosion Proof Light Switch
Explosion Protection:
CENELEC,IEC,NEC
Can Be Used In:
Zone1,2,21,22,Class I,Zone 1,2.Class I,Division 1,Groups A,B,C,D
Enclosure:
Copper-free Aluminium Alloy Enclosure, Powder Coated Surface.
Two Options:
-On-off Switch -Changeover Switch
Type:
Explosion Proof Light Switch
Description
BZM Series Explosion Proof Illumination Switches Electrical Switches Powder Coated Surface
Product Introduction

20190702113124779.png@!w400




Specification
Global (IECEx) IECEx LCI 08. 0008X
Gas and dust Ex db IIC T6 Gb
  Ex tb IIIC T80℃ Db
Europe (ATEX) LCIE 06 ATEX 6068X
Gas and dust 20190603152349458.jpg@!w400 II 2 G Ex db IIC T6 Gb
  20190603152349458.jpg@!w400 II 2 D Ex tb IIIC T80℃ Db
Certificates IECEx; ATEX; CU-TR
Conformity to standards EN; IEC
Degree of protection IP66
Ambient temperature -60℃~+60℃



Data
Material Copper-free Aluminium Alloy, powder coated surface
Weight 0.85kg~0.95kg
Dimensions 110mm×124mm×108mm
Enclosure colour Window grey (RAL7040)
Switch function On-off switch or changeover switch
Exposed fastener Stainless steel
Rated voltage Max. 250V AC
Rated current 16A, 25A
Internal&external earthing M4/M5
Cable connection 3 x (2.5~4)mm2
Cable entries

Standard 2 x M25 x 1.5 plugs

2 x NPT3/4" plugs on request

Cable gland(optional) DQM-II(Ex d), DQM-III(Ex d)



Download

BZM Series Explosion-proof Illumination Switches

(Download here:icon_pdf.gifBZM Series Explosion-proof Illumination Switches.pdf.)



Global (IECEx): IECEx LCI 08. 0008

(Download here:icon_pdf.gifIECEx LCI 08.0008X )
