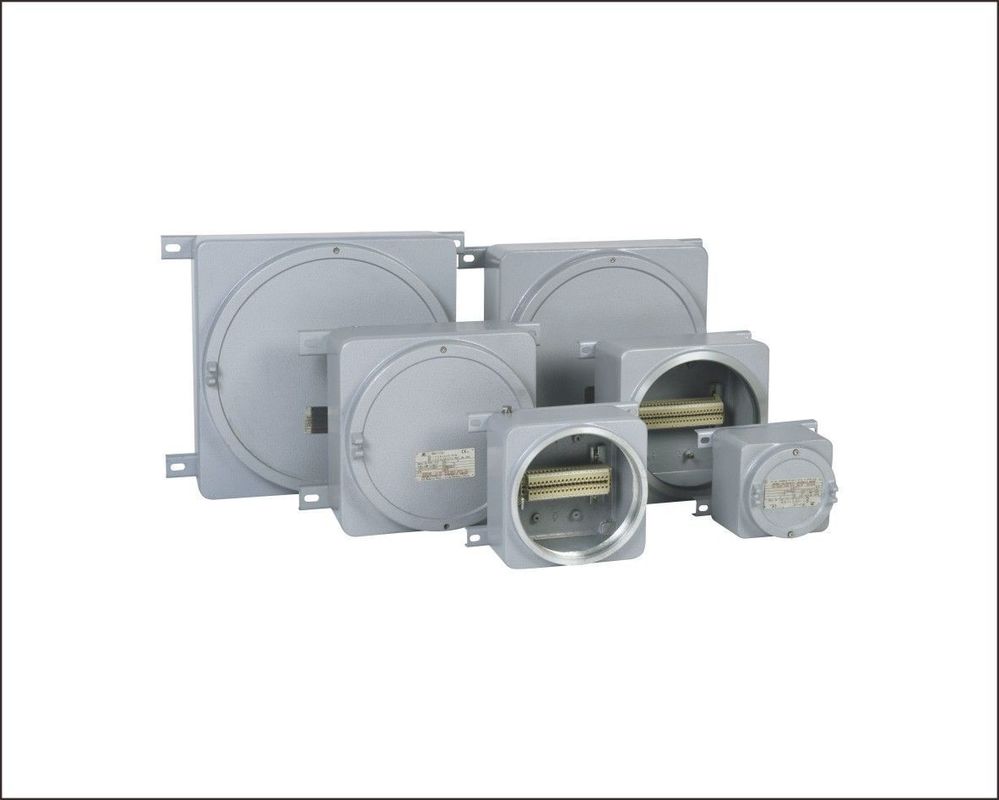

BXJ-IIC Series Explosion Proof Terminal Boxes Aluminium Alloy IP65 Protection Industrial

Product Details

Place of Origin: China

Brand Name: Warom

Certification: IECEx; ATEX; CU-TR

Model Number: BXJ-IIC

Payment & Shipping Terms

Packaging Details: carton packing/wooden box package

Payment Terms: T/T

Get Best Price
Contact Now
Specifications
Highlight:

ip65 protection explosion proof terminal boxes

,

aluminium explosion proof terminal boxes

,

industrial explosion proof terminal box

Explosion Protection To:
CENELEC,IEC,NEC
Can Be Used In:
Zone1,2,21,22,Class I,Zone 1,2.Class I,Division 1,Groups A,B,C,D Class I,Division 2,Groups A,B,C,D
Enclosure:
Copper-free Aluminium Alloy(carbon Steel Or Stainless Steel Is Optional),powder Coated Surface
Explosion Protection To:
CENELEC,IEC,NEC
Can Be Used In:
Zone1,2,21,22,Class I,Zone 1,2.Class I,Division 1,Groups A,B,C,D Class I,Division 2,Groups A,B,C,D
Enclosure:
Copper-free Aluminium Alloy(carbon Steel Or Stainless Steel Is Optional),powder Coated Surface
Description
BXJ-IIC Series Explosion Proof Terminal Boxes Aluminium Alloy IP65 Protection Industrial



Product Introduction

20190617085541145.png@!w400




Specification

Global (IECEx)

IECEx CQM 11.0027

Gas and dust

Ex d IIC T6 Gb



Ex tb IIIC T80℃ Db IP65

Europe (ATEX)

Nemko 09 ATEX 1012

Gas and dust

20190603152349458.jpg@!w400 II 2 G Ex d IIC T6 Gb



20190603152349458.jpg@!w400 II 2 D Ex tb IIIC T80℃ Db IP65

Certificates

IECEx; ATEX; CU-TR

Conformity to standards

EN; IEC

Degree of protection

IP65

Ambient temperature

-20℃~+55℃



Data
Material Copper-free Aluminium Alloy, powder coated surface
Weight 3.5kg~24.5kg
Dimensions According to design
Enclosure colour Window grey (RAL7040)
Exposed fastener Stainless steel
Rated voltage Max. 690V AC
Rated current 24A~250A
Internal&external earthing M5/M8
Cable gland(optional) DQM-II(Ex d), DQM-III(Ex d)



Download

BXJ-IIC Series Explosion-proof Terminal Boxes

(Download here:icon_pdf.gifBXJ Series Explosion-proof Terminal Boxes.pdf)



Global (IECEx): IECEx CQM 11.0027

(Download here:icon_pdf.gifIECEx CQM 11.0027 )
