Product Details
Place of Origin: China
Brand Name: Warom
Certification: IECEx; ATEX;
Model Number: BCZY
Payment & Shipping Terms
Packaging Details: carton packing/wooden box package
Payment Terms: T/T
Enclosure Colour: |
Black |
Explosion Protection: |
CENELEC,IEC,NEC |
Can Be Used In: |
Zone1,2,21,22 |
Type: |
Type A(portable Type) And Type B(push Type)for Option |
The Enclosure Of Type A(portable Type): |
Stainless Steel Or GRP(glass Fibre-reinforced Polyester Resin), The Max.transformer Capacity Of Stainless Steel Product: 1600V A;the Max |
Rated Voltage: |
3P:200~250V AC, 5P:380~415V AC |
Enclosure Colour: |
Black |
Explosion Protection: |
CENELEC,IEC,NEC |
Can Be Used In: |
Zone1,2,21,22 |
Type: |
Type A(portable Type) And Type B(push Type)for Option |
The Enclosure Of Type A(portable Type): |
Stainless Steel Or GRP(glass Fibre-reinforced Polyester Resin), The Max.transformer Capacity Of Stainless Steel Product: 1600V A;the Max |
Rated Voltage: |
3P:200~250V AC, 5P:380~415V AC |
| Global (IECEx) | IECEx (applied for ) |
| Gas and dust | Ex db eb IIC T4 Gb |
| Ex tb IIIC T80℃ Db IP66 | |
| Europe (ATEX) | ATEX(applied for ) |
| Gas and dust | II 2 G Ex db eb IIC T4 Gb |
| II 2 D Ex tb IIIC T80℃ Db IP66 |
|
| Certificates | IECEx; ATEX |
| Conformity to standards | EN; IEC ; IEC |
| Degree of protection | IP66 |
| Ambient temperature | -20℃~+55℃ |
| Material | GRP(glass fibre-reinforced polyester resin) |
| Weight | As per design |
| Dimensions | As per design |
| Enclosure colour | Black |
| Exposed fastener | Stainless steel |
| Rated voltage | 3P:200~250V AC, 5P:380~415V AC |
| Rated current | 16A |
| Cable gland(optional) | DQM-I is recommended. |

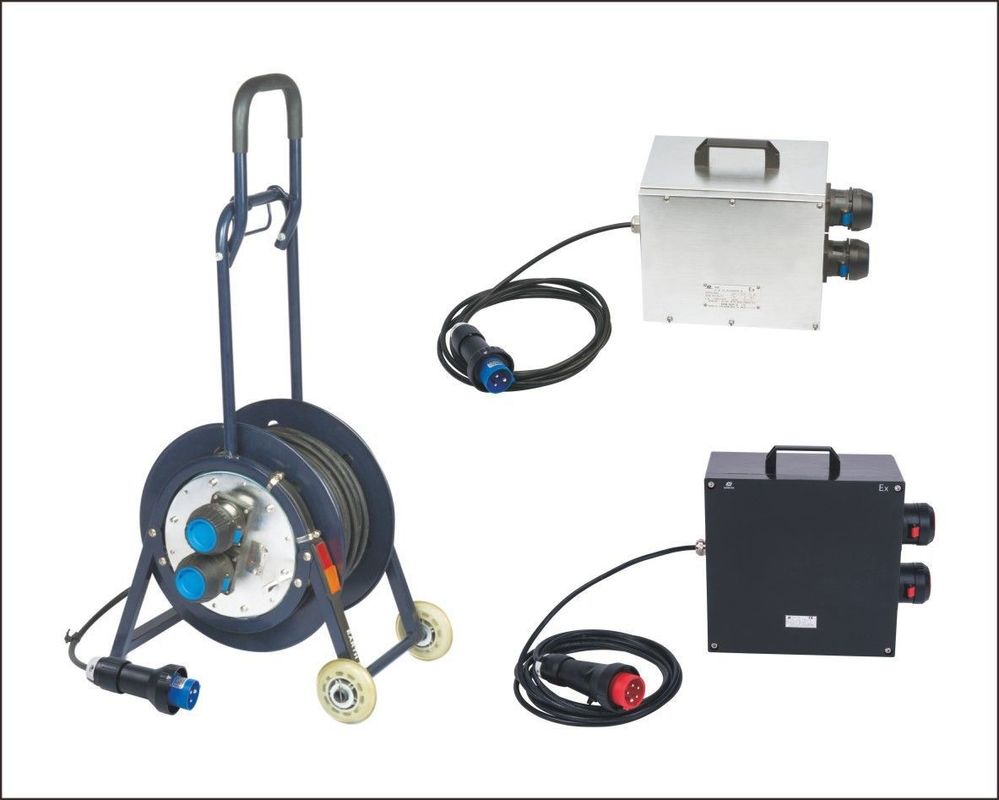

BCZY Series Explosion-proof Movable Switchboards
(Download here:BCZY Series Explosion-proof Movable Switchboards.)
