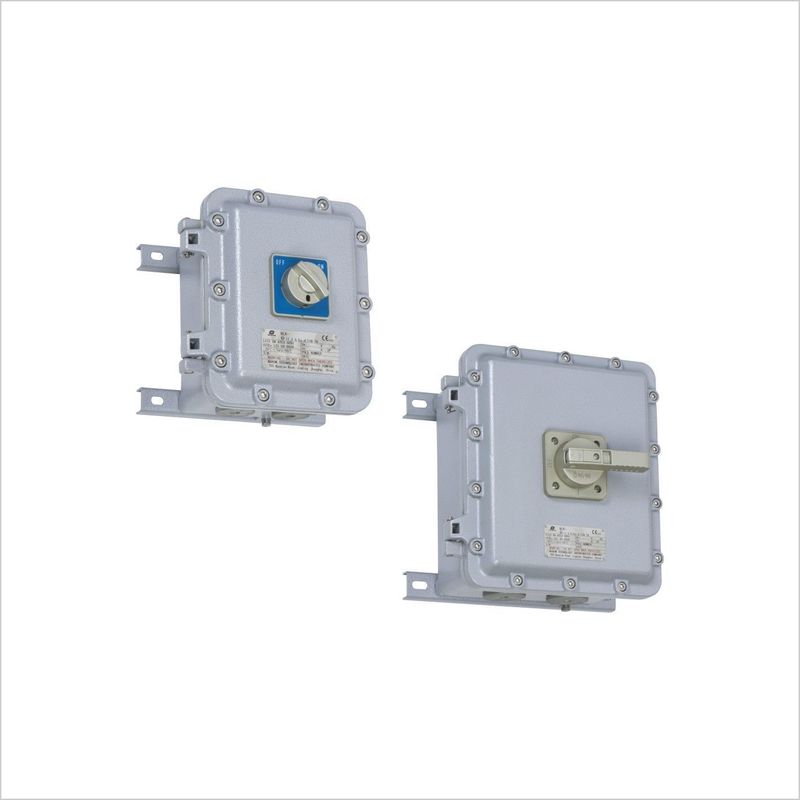

BLK Series Explosion Proof Motor Switches (Ex D IIB) 16A 32A 63A 1P 2P 3P 4Pole

Product Details

Place of Origin: China

Brand Name: Warom

Certification: IECEx; ATEX; CU-TR

Model Number: BLK

Payment & Shipping Terms

Packaging Details: carton packing/wooden box package

Payment Terms: T/T

Get Best Price
Contact Now
Specifications
Highlight:

explosion proof motor switches

,

electric motor switch explosion proof

,

ATEX electric motor switch

Explosion Protection:
CENELEC,IEC,NEC
Can Be Used In:
Zone1,2,21,22,Class I,Zone 1,2.Class I,Division 1,Groups A,B,C,D
Enclosure:
Copper-free Aluminium Alloy Enclosure, Powder-coated Surface
Explosion Protection:
CENELEC,IEC,NEC
Can Be Used In:
Zone1,2,21,22,Class I,Zone 1,2.Class I,Division 1,Groups A,B,C,D
Enclosure:
Copper-free Aluminium Alloy Enclosure, Powder-coated Surface
Description
BLK Series Explosion Proof Motor Switches (Ex D IIB) 16A 32A 63A 1P 2P 3P 4Pole
Product Introduction

20190617174608252.png@!w400




Specification
Global (IECEx)

IECEx CNEx 18.0034X

Gas and dust

Ex db IIB T6 Gb

Ex tb IIIC T80℃ Db

Europe (ATEX) CNEX 18 ATEX 0027 X
Gas and dust spacer.gif20190603152349458.jpg@!w400 II 2 G Ex db IIB T6 Gb
  spacer.gif20190603152349458.jpg@!w400 II 2 D Ex tb IIIC T80℃ Db
Certificates IECEx; ATEX; CU-TR
Conformity to standards EN; IEC
Degree of protection IP66
Ambient temperature -60℃~+60℃



Data
Material Copper-free Aluminium Alloy, powder coated surface
Enclosure Weight 8.00kg
Dimensions 200Wx250Hx170D(mm)
Enclosure colour Window grey (RAL7040)
Exposed fastener Stainless steel
Circuit breaker MCB (miniature circuit breaker)
Max. working voltage 440V AC 50/60Hz
Rated voltage 1P/230V AC, 2P/3P/4P/400V AC 50/60Hz
Rated current 16A/32A/63A
Number of pole 1P, 2P, 3P, 4P
Breaking capacity 6kA, 10kA, 15kA
Tripping characteristic Instantaneous tripping range (5~10) In, (7~10) In or (10~14) In
Impulse withstand voltage 6kV
Internal&external earthing M6/M6;M6/M8
Cable entries

Standard 1~16A: 2 x M25 x 1.5 plugs

              20~32A: 2 x M32 x 1.5 plugs

              40~63A: 2 x M40 x 1.5 plugs

Cable gland (optional) DQM-II(Ex d) or DQM-III(Ex d)
Earth leakage protection On request



Download

BLK Series Explosion-proof Motor Switches(Ex d IIB)

(Download here:icon_pdf.gifBLK Series Explosion-proof Motor Switches (Ex db IIB).pdf)



Global (IECEx): IECEx CNEx 18.0034X

(Download here:icon_pdf.gifIECEx CNEX 18.0034X
