Product Details
Place of Origin: China
Brand Name: Warom
Certification: IECEx; ATEX; CU-TR
Model Number: BLK
Payment & Shipping Terms
Packaging Details: carton packing/wooden box package
Payment Terms: T/T
Explosion Protection: |
CENELEC,IEC,NEC |
Can Be Used In: |
Zone1,2,21,22,Class I,Zone 1,2.Class I,Division 1,Groups C,D |
Enclosure: |
Copper-free Aluminium Alloy Enclosure, Powder-coated Surface |
Weight: |
6.50 Kg/28.00kg |
Rated Current: |
1A~63A |
Breaking Capacity: |
6kA, 10kA, 15kA |
Explosion Protection: |
CENELEC,IEC,NEC |
Can Be Used In: |
Zone1,2,21,22,Class I,Zone 1,2.Class I,Division 1,Groups C,D |
Enclosure: |
Copper-free Aluminium Alloy Enclosure, Powder-coated Surface |
Weight: |
6.50 Kg/28.00kg |
Rated Current: |
1A~63A |
Breaking Capacity: |
6kA, 10kA, 15kA |
|
Global (IECEx) |
IECEx CQM 12.0037X |
| Gas and dust |
Ex db IIC T6 G Ex tb IIIC T80℃ Db IP66 |
| Europe (ATEX) | Presafe 17 ATEX 10687X |
| Gas and dust | II 2 G Ex db IIC T6 Gb |
| II 2 D Ex tb IIIC T80℃ Db IP66 |
|
| Certificates | IECEx; ATEX; CU-TR |
| Conformity to standards | EN; IEC |
| Degree of protection | IP66 |
| Ambient temperature | -60℃~+55℃ |
|
Material |
Copper-free Aluminium Alloy, powder coated surface |
| Weight | 6.50 kg/28.00kg |
| Dimensions | 215Wx215Hx170D(mm) |
| Enclosure colour | Window grey (RAL7040) |
| Exposed fastener | Stainless steel |
| Circuit breaker | MCB (miniature circuit breaker) |
| Max. working voltage | Max.690V AC 50/60Hz; 500V DC |
| Rated voltage | 1P/230V AC, 2P/3P/4P/400V AC 50/60Hz |
| Rated current | 1A~63A |
| Number of pole | 1P, 2P, 3P, 4P |
| Breaking capacity | 6kA, 10kA, 15kA |
| Tripping characteristic | Instantaneous tripping range (5~10) In, (7~10) In or (10~14) In |
| Impulse withstand voltage | 6kV(MCB);8kV(MCCB) |
| Internal&external earthing | M5/M8 |
| Cable entries |
Standard 1~16A: 2 x M25 x 1.5 plugs 20~32A: 2 x M32 x 1.5 plugs 40~63A: 2 x M40 x 1.5 plugs |
| Cable gland (optional) | DQM-II(Ex d), DQM-III(Ex d) |

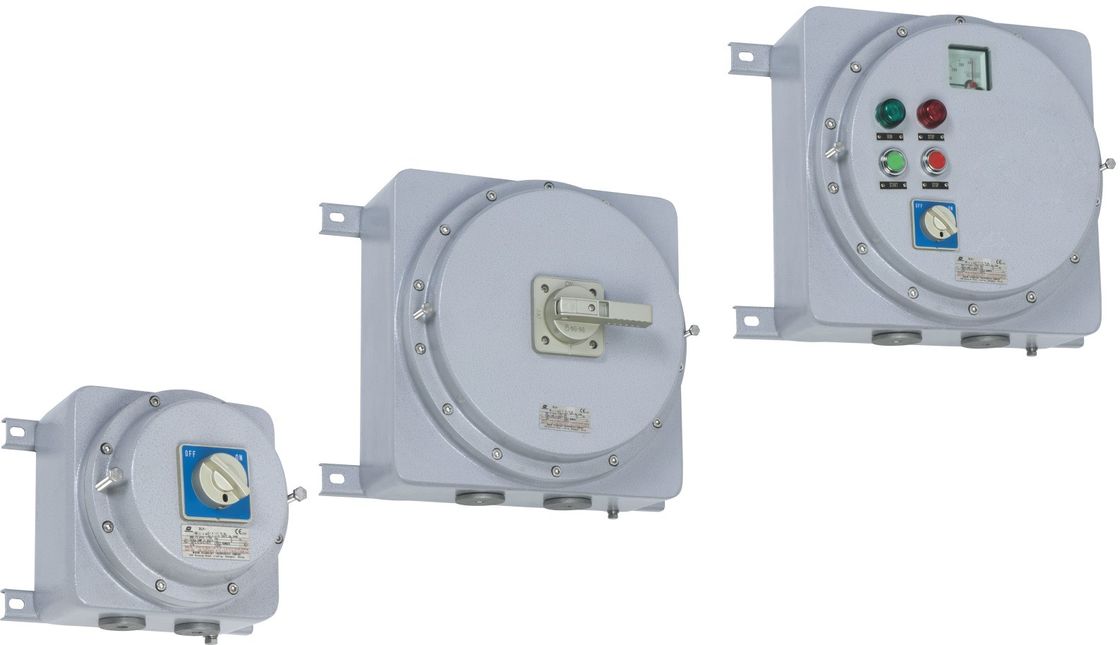

BLK Series Explosion-proof Motor Switches(Ex d IIC)
(Download here:BLK Series Explosion-proof Motor Switches (Ex db IIC).pdf)
Global (IECEx): IECEx CQM 12.0037X
(Download here:IECEx CQM 12.0037X )
