Product Details
Place of Origin: China
Brand Name: Warom
Certification: GB
Model Number: FAD-G
Payment & Shipping Terms
Packaging Details: carton packing/wooden box package
Payment Terms: T/T
Enclosure Material: |
Aluminum Alloy Through Stretching High-volatage Electrostatic |
Material: |
Tempered Glass Transparent Cover |
Corrosion-proof: |
WF1,WF2 (Optional) |
Enclosure Material: |
Aluminum Alloy Through Stretching High-volatage Electrostatic |
Material: |
Tempered Glass Transparent Cover |
Corrosion-proof: |
WF1,WF2 (Optional) |
Model Specifications | High pressure sodium lamp (N) | Metal halide lamp(L) | Degree of protection | Lampholder specification | Weight | |
FAD-G-□(Type1) |
70W 110)100)W |
70W 100W 150W |
IP65 | E27 | 2.5kg | |
FAD-G-□(Type2) | 150W,250W | 250W | IP65 | E40 | 4.0kg |
Rated voltage | 220V AC 50/60Hz |
Ambient temperature | -40℃~+45℃ |
Degree of protection | IP65 |
Cable gland | G3/4" entry specification,suitable for cable of φ10mm~φ14mm |
Terminal | ≤2.5mm2 reliable wire connection |
Mounting | Ceiling type(x),pendant pole type (g),flange type (f),fence type1(h1),fence type2(h2),wall type 30°(b1),wall type 90°(b2) |
Lamp power | N150w N250W L250W |

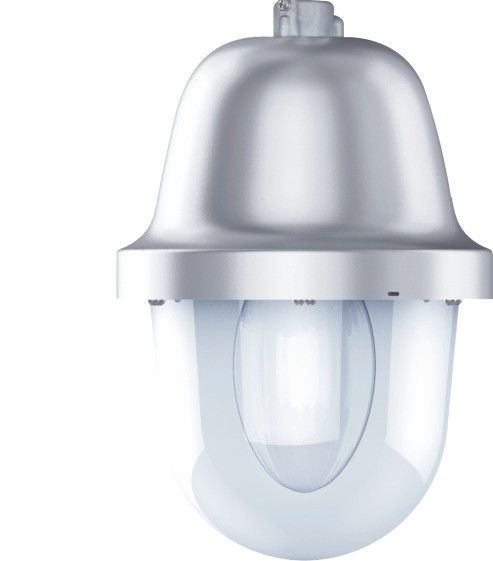

FAD-G Series Weatherproof Light Fittings
(Download here:FAD-G Series Weatherproof Light Fittings.pdf)
