Product Details
Place of Origin: China
Brand Name: Warom
Certification: CCS,BV,ABS,IEC,IECEX,EX
Model Number: HDL-C
Payment & Shipping Terms
Packaging Details: carton packing/wooden box package
Payment Terms: T/T
Application: |
Explosive Hazardous Atmosphere Zone 1, Zone 2, Zone 21, Zone 22 |
Suitable For: |
Temperature Of -40℃~+60℃ |
Enclosure Uses: |
High Quality Maritime Aluminium Alloy, Which Is Applied To The Ocean Environment |
Light Source: |
LED Yellow Light Source, Service Life Is Up To 100000 Hours |
Application: |
Explosive Hazardous Atmosphere Zone 1, Zone 2, Zone 21, Zone 22 |
Suitable For: |
Temperature Of -40℃~+60℃ |
Enclosure Uses: |
High Quality Maritime Aluminium Alloy, Which Is Applied To The Ocean Environment |
Light Source: |
LED Yellow Light Source, Service Life Is Up To 100000 Hours |
| Technical parameters | ||||
| Conformity to standards | IEC60079, EN60079, GB/T 3836, CCS, CAP437 | |||
| Ex-Mark | GB |
Ex db eb IIC T6 Gb Ex tb IIIC T80℃ Db |
||
| IECEX |
Ex db eb IIC T6 Gb Ex tb IIC T80℃ Db IP66/IP67 |
|||
| ATEX | II 2 G Ex db eb IIC T6 Gb II 2 D Ex tb IIIC T80℃ Db IP66/IP67 |
|||
| Ambient temperature | -40℃~+60℃ | |||
| Light source | LED | |||
| Light intensity | (Elevation) | 0°~10° | >10°~20° | >20°~90° |
| (Intensity)Max | 60cd | 45cd | 15cd | |
| Degree of protection | IP66/IP67/IP69 | |||
| Corrosion-proof | WF2 | |||
| Cable entry | 4×1.0mm2 | |||

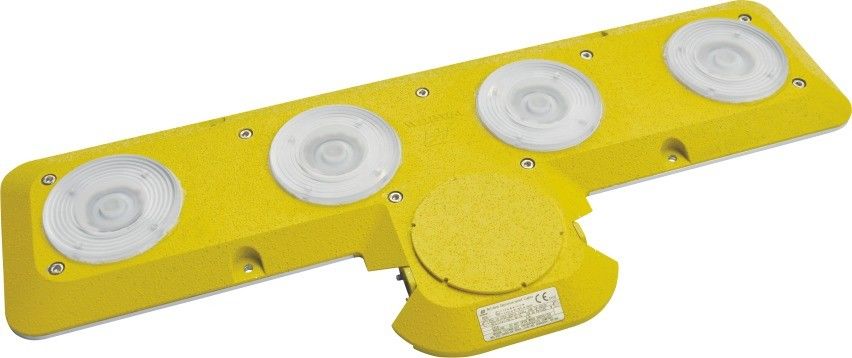

HDL-C Helideck Explosion-proof Light
(Download here:HDL-C Helideck Explosion-proof Light.pdf)
(Contact us for more information:IECEx TUR 18.0057X Issue No.0.pdf )
