Product Details
Place of Origin: China
Brand Name: Warom
Certification: CCS,BV,ABS,IEC,IECEX,EX,GB(EX)
Model Number: HDL-W
Payment & Shipping Terms
Packaging Details: carton packing/wooden box package
Payment Terms: T/T
Features: |
Flexible Slip Ring Structure, Horizontal 360° Free Rotation With Wind |
Application: |
Used For Indicating The Wind Direction On Helideck |
Explosive Hazardous Atmosphere: |
Zone 1, Zone 2,Zone 21, Zone 22 |
Suitable For: |
Temperature Of -40℃~+55℃ |
Light Source: |
LED White Light Source, Service Life Is Up To 60000 Hours |
Features: |
Flexible Slip Ring Structure, Horizontal 360° Free Rotation With Wind |
Application: |
Used For Indicating The Wind Direction On Helideck |
Explosive Hazardous Atmosphere: |
Zone 1, Zone 2,Zone 21, Zone 22 |
Suitable For: |
Temperature Of -40℃~+55℃ |
Light Source: |
LED White Light Source, Service Life Is Up To 60000 Hours |
| Technical parameters | ||||
| Conformity to standards | IEC60079, EN60079, GB/T 3836, CCS | |||
| Ex-Mark | GB |
Ex db eb IIC T6 Gb Ex tb IIIC T80℃ Db |
||
| IECEX |
Ex db eb op is IIC T6 Gb Ex tb op is IIIC T80℃ Db IP66 |
|||
| ATEX |
|
|||
| Ambient temperature | -40℃~+55℃ | |||
| Light source | LED | |||
| Degree of protection | IP66 | |||
| Corrosion-proof | WF2 | |||
| Cable entry | 2×M25×1.5 | |||
| Terminal | 1.5~4mm2 | |||

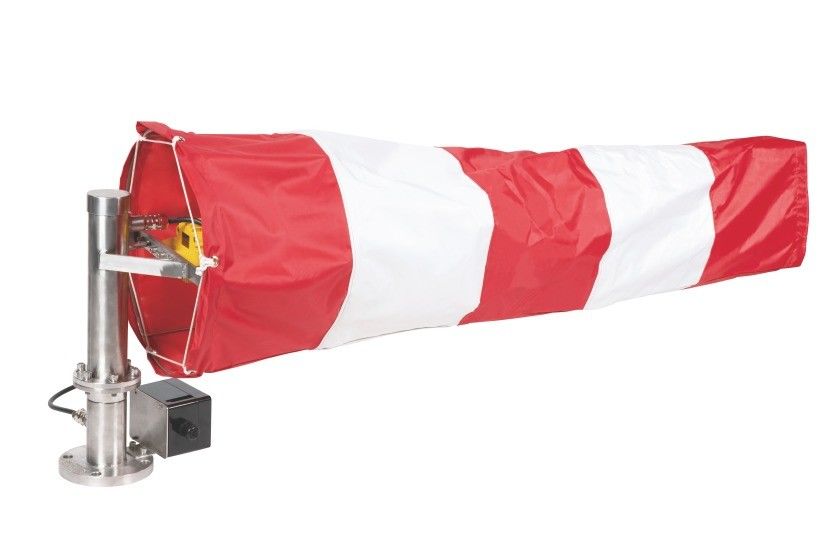

HDL-W Explosion-proof Wind Direction Lamp
(Download here:HDL-W Explosion-proof Wind Direction Lamp.pdf)
