Product Details
Place of Origin: China
Brand Name: Warom
Certification: CCS,BV,ABS,GB(EX)
Model Number: BJK-S/GD
Payment & Shipping Terms
Packaging Details: carton packing/wooden box package
Payment Terms: T/T
Application: |
Widely Used For The Supervisory Control On Various Marine Platforms, Chemical Tankers, LNG Ships And Hazardous Cargo Wharfs |
Can Reliably Work In: |
Severe Environment Exposed In Moisture, Vibration Or Corrosion |
Explosive Hazardous Atmosphere: |
Zone 1, Zone 2, Zone 21, Zone 22 |
Application: |
Widely Used For The Supervisory Control On Various Marine Platforms, Chemical Tankers, LNG Ships And Hazardous Cargo Wharfs |
Can Reliably Work In: |
Severe Environment Exposed In Moisture, Vibration Or Corrosion |
Explosive Hazardous Atmosphere: |
Zone 1, Zone 2, Zone 21, Zone 22 |
|
Executive standards |
GB,IEC,EN |
|
Explosion-proof mark |
Ex d ⅡC T6 Gb / Ex tD A21 IP68 T80℃ |
|
Protection rating |
IP68 |
|
Corrosion-proof grade |
WF2 |
|
Material |
304 stainless steel or 316L |
|
Horizontal rotation |
30°(horizontally) by manual adjustment |
|
Vertical rotation |
±60° by manual adjustment |
|
Installation methods |
Fixing brackets, base, upright posts |
|
Input voltage |
12V DC / 24V AC / 220V AC |
|
Ambient temperature |
-40℃~+60℃ |
|
Through head |
The standard configuration specification is 2×M20×1.5, and other specifications if used shall be specified |
|
Cable OD |
Suitable for Φ9mm~Φ16mm cables |
|
Weight |
5.8kg |

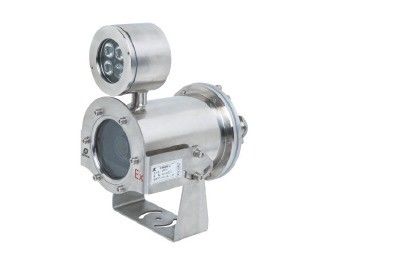

BJK-S/GD Explosion-proof Camera
(Download here:BJK-S/GD Explosion-proof Camera.pdf)
