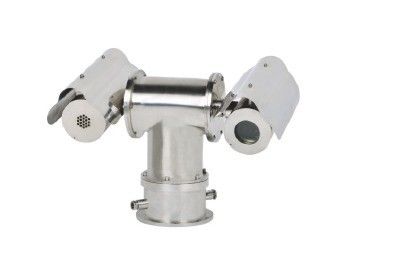

Bjk-Ytr Explosion Proof Video Surveillance System Integrated Infrared Thermal Imager

Product Details

Place of Origin: China

Brand Name: Warom

Certification: CCS,BV,ABS,GB(EX)

Model Number: BJK-YTR

Payment & Shipping Terms

Packaging Details: carton packing/wooden box package

Payment Terms: T/T

Get Best Price
Contact Now
Specifications
Highlight:

explosion proof video surveillance system

,

explosion proof infrared thermal imager

,

marine infrared thermal imager

Features:
Strong Detection Ability,Long Detection Distance,Temperature Identification
Application:
Widely Used For The Supervisory Control On Various Marine Platforms, Chemical Tankers, LNG Ships And Hazardous Cargo Wharfs
Explosive Hazardous Atmosphere:
Zone 1, Zone 2, Zone 21, Zone 22
Features:
Strong Detection Ability,Long Detection Distance,Temperature Identification
Application:
Widely Used For The Supervisory Control On Various Marine Platforms, Chemical Tankers, LNG Ships And Hazardous Cargo Wharfs
Explosive Hazardous Atmosphere:
Zone 1, Zone 2, Zone 21, Zone 22
Description
Bjk-Ytr Explosion Proof Video Surveillance System Integrated Infrared Thermal Imager
Product Introduction

BJK-YTR Explosion-proof integrated infrared therma


Specification

Executive standards

GB,IEC,EN

Explosion-proof mark

Ex d ⅡC T6 Gb / Ex tD A21 IP68 T80℃

Protection rating

IP68

Corrosion-proof grade

WF2

Material

304 stainless steel or 316L

Input voltage

176VAC~264VAC

Power consumption

≤100W

Ambient temperature

-30℃~+50℃

Horizontal   rotation

continuous   rotation°

Vertical   rotation

+90°~-90°

Weight

35kg

Download

BJK-YTR Explosion-proof integrated infrared thermal imager

(Download here:pdfBJK-YTR Explosion-proof integrated infrared thermal imager.pdf)
