Product Details
Place of Origin: China
Brand Name: Warom
Certification: CCS,BV,ABS
Model Number: CTG31-LED
Payment & Shipping Terms
Packaging Details: carton packing/wooden box package
Payment Terms: T/T
Application: |
Suitable For Spotlight And Floodlight Illumination In Open Spaces Like Ships, Offshore Platforms, Ports And Wharfs |
Housing: |
Housing In Stretching Formed Stainless Steel, Powder Coated Surface |
Cover: |
Toughened Glass |
Buckle/chain: |
Stainless Steel |
Application: |
Suitable For Spotlight And Floodlight Illumination In Open Spaces Like Ships, Offshore Platforms, Ports And Wharfs |
Housing: |
Housing In Stretching Formed Stainless Steel, Powder Coated Surface |
Cover: |
Toughened Glass |
Buckle/chain: |
Stainless Steel |
| Technical parameters | |
| Conformity to standards | GB 11472, GB7000.7, GB/T 24954, IEC 60598, CCS standard |
| Ambient temperature | -40℃~+55℃ |
| Lamp source | LED module |
| Degree of protection | IP66 |
| Cable entry | 2×M25×1.5, suitable for cable to Φ10~Φ18mm cable |
| Terminal | 3×1.5~4mm² |

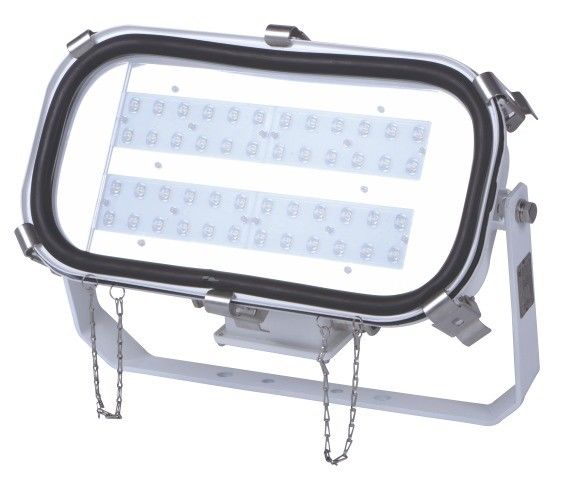

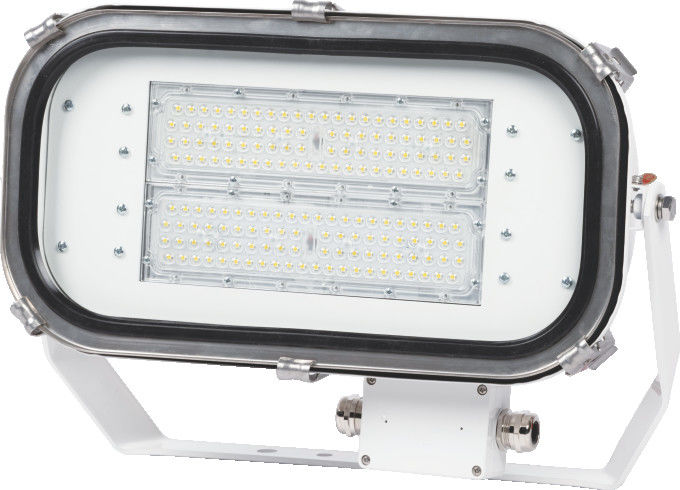

CTG31-LED LED Spot Light
(Download here:CTG31-LED LED Spot Light.pdf)
