Product Details
Place of Origin: China
Brand Name: Warom
Certification: IECEx; ATEX;
Model Number: BL8060
Payment & Shipping Terms
Packaging Details: carton packing/wooden box package
Payment Terms: T/T
Explosion Protection: |
CENELEC,IEC,NEC |
Zone Rating: |
Zone 1,2.Class I,Zone 1,2 Class I ,Division 2,Groups A,B,C,D |
Explosion Protection: |
CENELEC,IEC,NEC |
Zone Rating: |
Zone 1,2.Class I,Zone 1,2 Class I ,Division 2,Groups A,B,C,D |
Product Introduction
Specification
|
Global (IECEx) |
IECEx CQM 14.0031U |
|
Gas |
Ex db eb IIC Gb |
|
Europe (ATEX) |
EUT 14 ATEX 1301U |
|
Gas |
|
|
Certificates |
IECEx; ATEX |
|
Conformity to standards |
EN 60079-0, EN 60079-1, EN 60079-7 IEC 60079-0, IEC 60079-1, IEC 60079-7 |
Data
|
Enclosure Material |
GRP(glass fibre-reinforced polyester resin) |
|
Dimensions |
As per design |
|
Rated voltage |
Max.690V AC 50/60Hz, Max. 500V DC |
|
Rated current |
1A, 2A, 4A, 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A |
|
Mechanical life |
20000 times |
|
Auxiliary contact |
1NO+1NC (indicating contact in OFF state) |
|
Nunmber of pole |
1P, 2P,3P,4P 1PL,2PL |
|
Ambient temperature |
-20℃~+70℃ |
Download

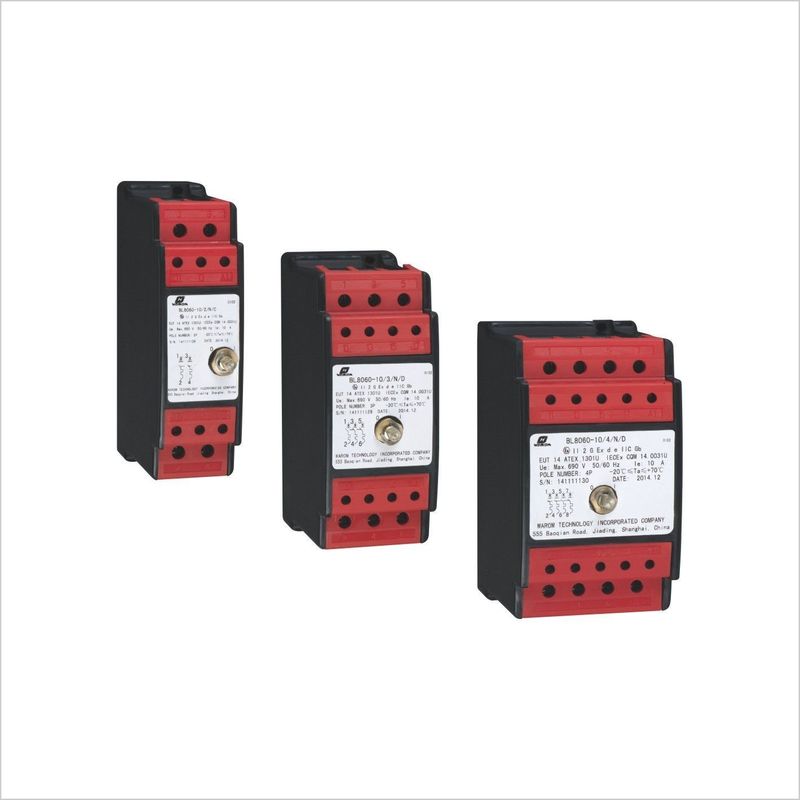

BL8060 Series Explosion-proof Circuit Breaker Modules (Ex d e IIC)
(Download here:BL8060 Series Explosion-proof Circuit Breaker Modules.pdf.)
Global (IECEx): IECEx CQM 14.0031U
(Download here:IECEx CQM 14.0031U Issue No.2.pdf )
