Product Details
Brand Name: WAROM
Model Number: HRMD96
Payment & Shipping Terms
Flameproof Enclosure: |
Which Can Be Used As Feeddistribution Equipment In Control And Distribution System (suchas Distribution Box, Switch Box Of Main Circuit ,control Box,terminal Box Or Motor Starting Box Etc.) |
Enclosure: |
304 Stainless Steel, 316L Stainless Steel And Q235. |
Equipped With Specialized Hinge Structure: |
Which Can Preventthe Flameproof Joints From Damage When Opening And Closingthe Box, And Greatly Prolong The Service Life Of Box. |
Flameproof Enclosure: |
Which Can Be Used As Feeddistribution Equipment In Control And Distribution System (suchas Distribution Box, Switch Box Of Main Circuit ,control Box,terminal Box Or Motor Starting Box Etc.) |
Enclosure: |
304 Stainless Steel, 316L Stainless Steel And Q235. |
Equipped With Specialized Hinge Structure: |
Which Can Preventthe Flameproof Joints From Damage When Opening And Closingthe Box, And Greatly Prolong The Service Life Of Box. |
Product Introduction
Specification
| Global (IECEx) | IECEx PCET 24.0027X |
| Gas and Dust |
Ex db IlC T6...T41)Gb |
| Europe (ATEX) |
applied for |
| Gas and Dust |
|
| Certificates | IECEx; ATEX;CU-TR |
| Conformity to standards |
EN 60079-0, EN 60079-1, EN 60079-11, EN 60079-31 IEC 60079-0, IEC 60079-1, IEC 60079-11, IEC 60079-31 |
| Degree of protection | IP66 |
| Ambient temperature | -60℃(-40℃)≤Ta≤+40(+60℃),-40℃~+60℃(+40℃) |
Data
| Material | 304 stainless steel, 316L stainless steel and Q235 |
| Dimensions | As per design |
| Rated voltage |
MAX. 1000V AC 50/60Hz; MAX. 1500V DC |
| Rated current | Max.1000A |
| Internal&external earthing | M8/M8 |
| Cable entries |
Standard MX1.5 plug |
Download

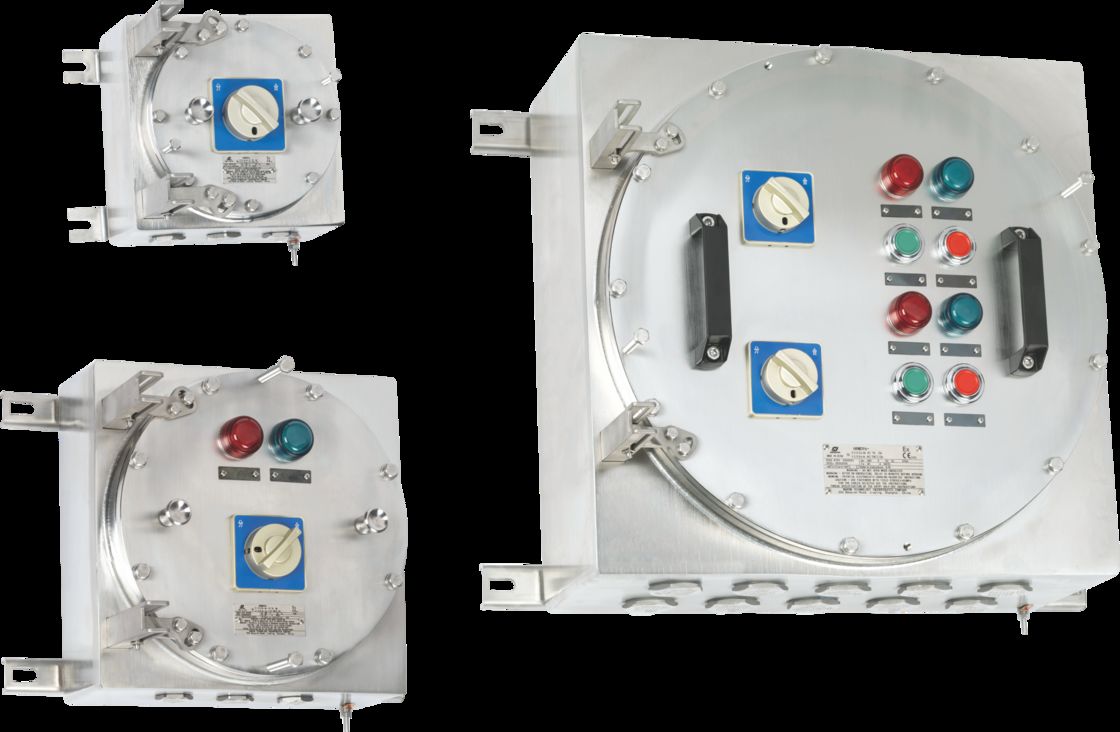

HRMD96 Series Explosion-proof Distribution Panels
(Download here:7.HRMD96 Series Explosion-proof Distribution Panels.pdf)
