Product Details
Place of Origin: CHINA
Brand Name: WAROM
Model Number: HRMD95
Payment & Shipping Terms
Flamepmof Enclosure (Ex D LlB+H2): |
Which Can Be Used As Feeddistribution Equipment In Control And Distribution System(suchas Distribution Box, Switch Box Of Main Circuit ,control Box, Terminalbox Or Motor Starting Box Etc.) |
Copper-free Aluminium Alloy Enclosure: |
Powder Coated Surface |

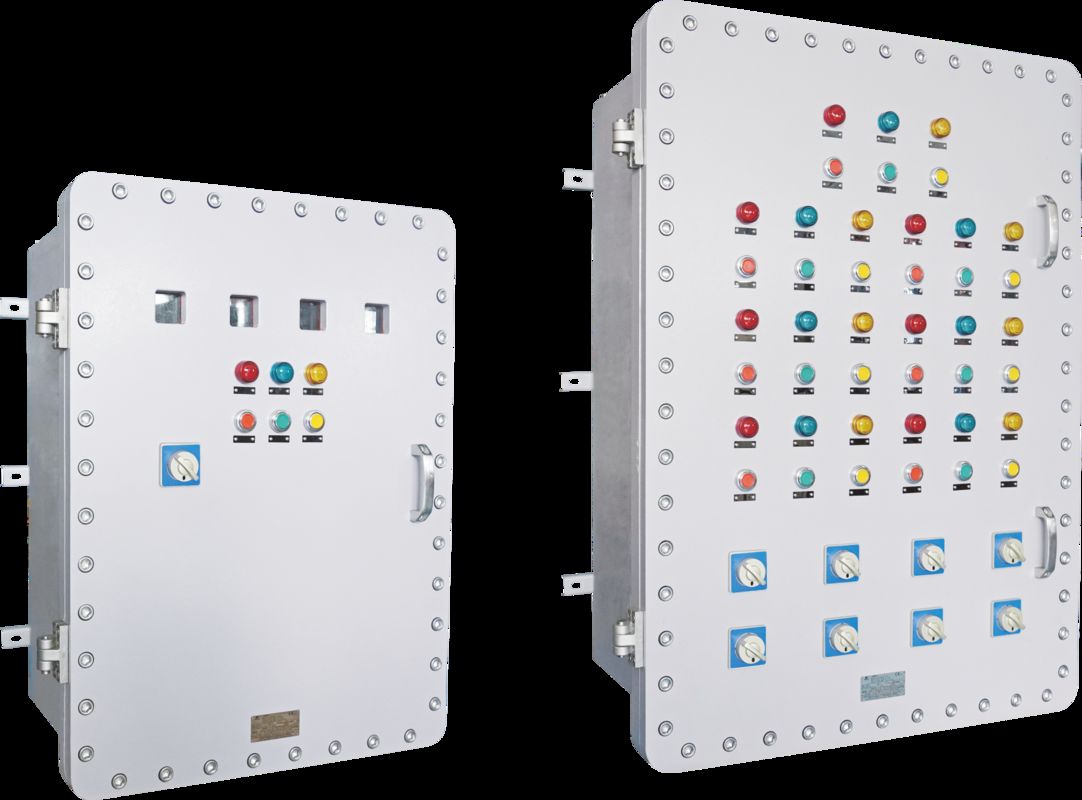

Equipped With Specialized Hinge Structure: |
Which Can Preventthe Flameproof Joints From Damage When Opening And Closingthe Box, And Greatly Prolong The Service Life Of Box. |
Flamepmof Enclosure (Ex D LlB+H2): |
Which Can Be Used As Feeddistribution Equipment In Control And Distribution System(suchas Distribution Box, Switch Box Of Main Circuit ,control Box, Terminalbox Or Motor Starting Box Etc.) |
Copper-free Aluminium Alloy Enclosure: |
Powder Coated Surface |
Equipped With Specialized Hinge Structure: |
Which Can Preventthe Flameproof Joints From Damage When Opening And Closingthe Box, And Greatly Prolong The Service Life Of Box. |
Product Introduction
Specification
| Global (IECEx) | IECEx PCET 24.0030X |
| Gas and Dust |
Ex db llB+H2 T口'Gb Ex db fia Ga]lB+H2 Tㄩ"Gb Ex db [ib Gb] lB+H T口"Gb Ex tb llC T’Db |
| Europe (ATEX) |
applied for |
| Gas and Dust |  ll 2 G Ex db llB+H2 T口'Gbll 2 G Ex db [ia Ga] llB+H2 T口"Gbll2 G Ex db [ib Gb] llB+H2 T口"GbII 2 D Ex tb llIC T口"Db'See table for max. dissipated power |
| Certificates | IECEx; ATEX; |
| Conformity to standards |
EN 60079-0, EN 60079-1, EN 60079-11, EN 60079-31 IEC 60079-0, IEC 60079-1, IEC 60079-11, IEC 60079-31 |
| Degree of protection | IP66 |
| Ambient temperature | -60℃(-40℃)≤Ta≤+40(+60℃) |
Data
| Material | Copper-free Aluminium Alloy, powder coated surface,Window grey (RAL7040) |
| Dimensions | As per design |
| Rated voltage |
MAX. 1000V AC 50/60Hz; MAX. 1500V DC |
| Rated current | Max.2000A |
| Internal&external earthing | M8/M8 |
| Cable entries |
Standard MX1.5 plug |
Download
HRMD95 Series Series-Proof Distribution Panels
(Download here:HRMD95 Series Explosion-proof Distribution Panels.pdf.)
