Product Details
Place of Origin: China
Brand Name: Warom
Certification: CCS,BV,ABS
Model Number: FXJ
Payment & Shipping Terms
Packaging Details: carton packing/wooden box package
Payment Terms: T/T
Application: |
Widely Used In Ocean Platforms,ships |
Can Reliably Work: |
In Severe Environment Where Is Easily Affected By Moisture,vibration Or Corrosion |
Suitable For: |
The Switching On/off Of AC/DC Low-voltage Electric Circuit Of Ships And Offshore Platform |
Application: |
Widely Used In Ocean Platforms,ships |
Can Reliably Work: |
In Severe Environment Where Is Easily Affected By Moisture,vibration Or Corrosion |
Suitable For: |
The Switching On/off Of AC/DC Low-voltage Electric Circuit Of Ships And Offshore Platform |
Specification
| Executive standards | GB | (IEC/EN) | American standards |
| Rated voltage | 220V/380V,230V/400V | 690V(max.1000V optional) | 480V |
| Ambient temperature | -40℃～+55℃ ( -60℃～+60℃ is optional) | ||
| Rated currnet | ≤630A | ≤1000A | |
| Degree of protection | IP66/IP67 | ||
| Terminals | Internationa brand of terminal | ||
| Thread specification | Supplied upon users’ request. | ||
| Enclosure material | SMC(PC Optiona) | ||
| Note:This technical parameters is suitable for FXJ-S. If you want to know other types, please refer to the catalogue in the Download. | |||

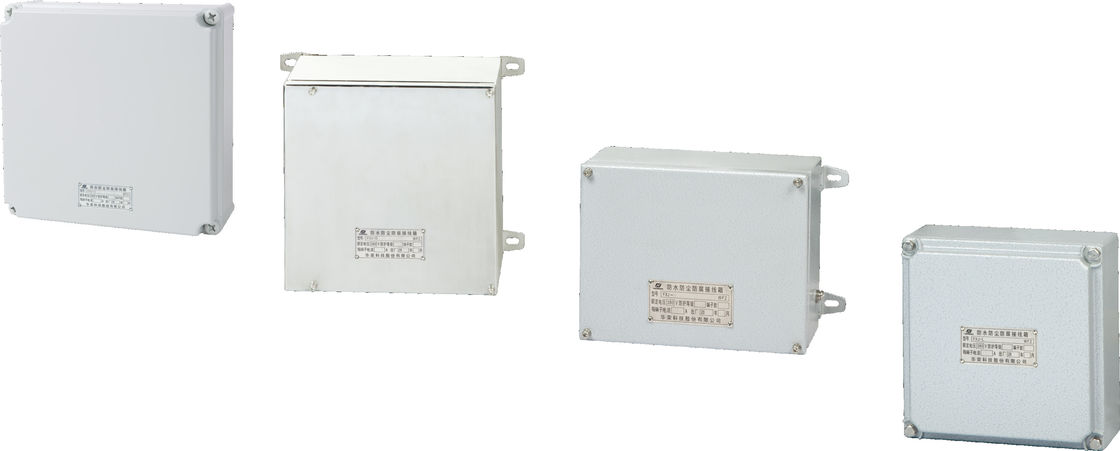

FXJ Series Weatherproof Terminal Boxes
(Download here:FXJ Series Weatherproof Terminal Boxes.pdf)
