Product Details
Place of Origin: China
Brand Name: Warom
Certification: GB;IEC;EN;GOST
Model Number: FXK
Payment & Shipping Terms
Packaging Details: carton packing/wooden box package
Payment Terms: T/T
Ordering: |
Please Indicate The Quantity And Size Of Inlet And Outlet Or Cable |
Cable Wiring: |
(please Specify If Steel Pipe Wiring Is Required) |
Ordering: |
Please Indicate The Quantity And Size Of Inlet And Outlet Or Cable |
Cable Wiring: |
(please Specify If Steel Pipe Wiring Is Required) |
| Executive standards | GB | (IEC/EN) | American standards |
| Rated voltage | 220V/380V,230V/400V |
440V(Max.1000V AC, Max.1500V DC) |
480V |
| Ambient temperature | -40℃～+55℃ ( -60℃～+60℃ is optional) | ||
| Rated current | 3A(Other current is optional) | ||
| Degree of protection | IP65/IP66 | ||
| Corrosion-proof | WF2 | ||
| Thread for inlet and outlet | M25×1.5 Cable entry Please specify,the special requirements(if any) | ||
| Cable outer diameter | Suitable for cable of Φ9mm～Φ16mm | ||
| Enclosure material | SMC/PC Optional | ||
| Note:This technical parameters is suitable for FXK-S.If you want to know other types, please refer to the catalogue in the Download. | |||

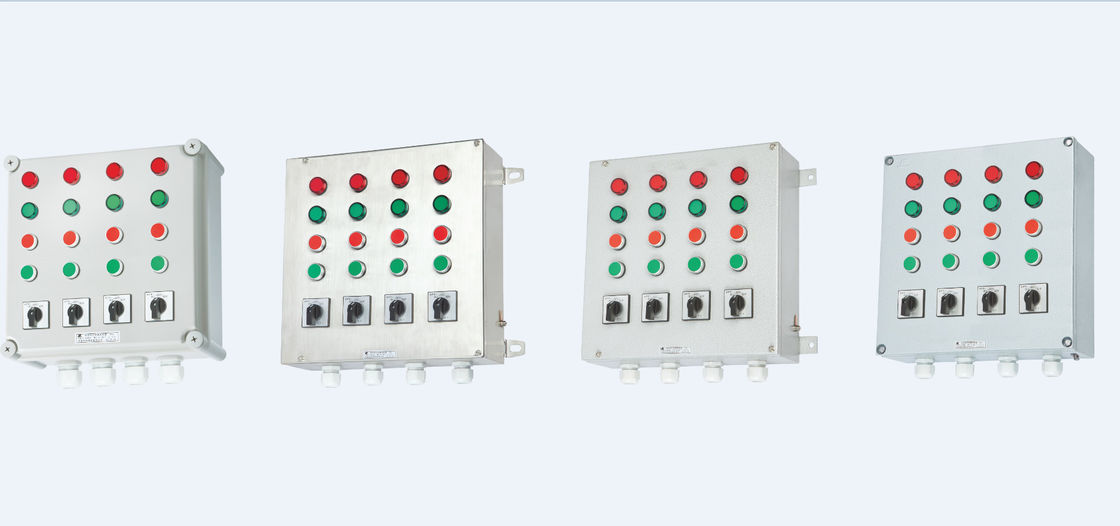

FXK Series Weatherproof Control Boxes
(Download here:FXK Series Weatherproof Control Boxes.pdf)
