BZC8050 Series Aluminium Alloy Control Station IP65 Protection ATEX IECEx Certified

Product Details

Place of Origin: China

Brand Name: Warom

Certification: IECEx; ATEX; CU-TR

Model Number: BZC8050

Payment & Shipping Terms

Packaging Details: carton packing/wooden box package

Payment Terms: T/T

Get Best Price
Contact Now
Specifications
Highlight:

aluminium alloy control station ip65

,

iecex certified aluminium control station

,

atex aluminium control station

Explosion Protection:
CENELEC,IEC,NEC
Can Be Used In:
Zone1,2,21,22,Class I,Zone 1,2.Class I,Division 2,Groups A,B,C,D
Explosion Protection:
CENELEC,IEC,NEC
Can Be Used In:
Zone1,2,21,22,Class I,Zone 1,2.Class I,Division 2,Groups A,B,C,D
Description

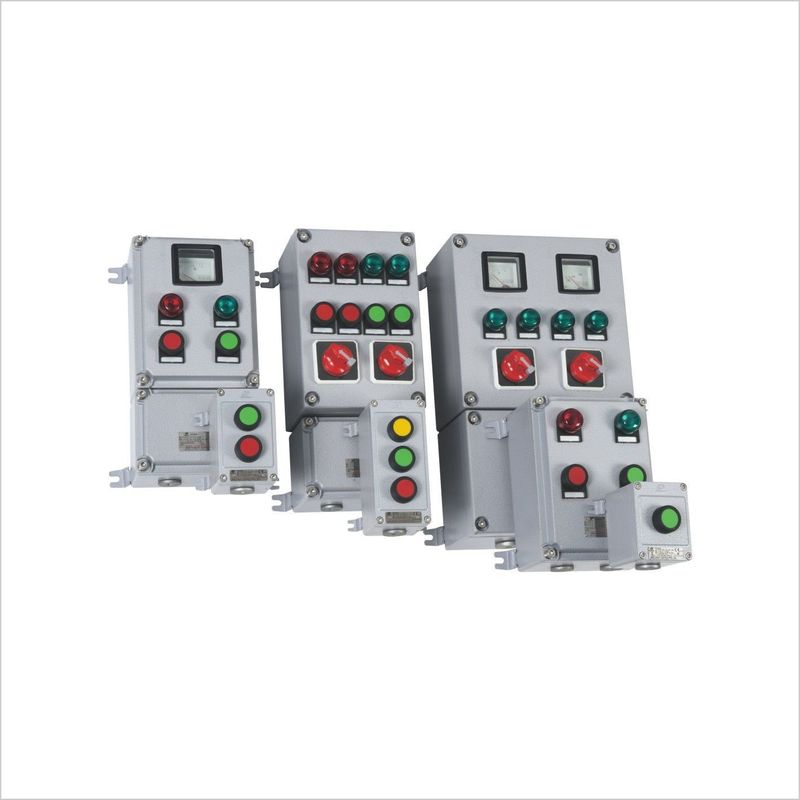

BZC8050 Series Aluminium Alloy Control Station IP65 Protection ATEX IECEx Certified
Product Introduction

20190619143235992.jpg@!w400




Specification
Global (IECEx) IECEx CQM 11. 0029
Gas  Ex d e IIC T6 Gb
Europe (ATEX) LCIE 09 ATEX 3099
Gas and dust 20190619143321117.jpg@!w400II 2 G Ex d e IIC T6 Gb
  20190619143321117.jpg@!w400II 2 D Ex tb IIIC T80℃ Db IP65
Certificates IECEx; ATEX; CU-TR
Conformity to standards EN; IEC
Degree of protection IP65
Ambient temperature -20℃~+55℃



Data
Material Copper-free Aluminium Alloy, powder coated surface
Dimensions As per design
Enclosure colour Window grey (RAL7040)
Exposed fastener Stainless steel
Rated voltage Max. 415V AC
Rated current 6A,16A,10A
Internal&external earthing I, II, III: M4/M4; IV, V, VI,VII: M6/M6
Cable entries M□ x 1.5 plug
Cable gland (optional) DQM-I (Ex e)
Mounting Surface type



Download

BZC8050 Series Control Stations (Aluminium Alloy)

(Download here:icon_pdf.gifBZC8050 Series Control Stations (Copper-free Aluminium Alloy.)



Global (IECEx): IECEx CQM 11. 0029

(Download here:icon_pdf.gifIECEx CQM 11.0029 Issue No.0.pdf)
