Product Details
Place of Origin: CHINA
Brand Name: WAROM
Model Number: BZC-HMI
Payment & Shipping Terms
Can Be Used In: |
Zone 2 Zone 21 And Zone 22 Class I, Zone 2 Class I, Division 2, Groups A , B, C, D |
With High-definition Display Capabilities: |
It Makes Images And Text Clearly Visible, Allowing Operators To Accurately Gather Information. |
The Explosion-proof Touchscreen: |
Is A Human-machine Interaction Device Specifically Designed For Hazardous Locations. |
It Supports Various Interface Types: |
Facilitating Connection And Integration With Other Devices, Achieving Inter-connectivity Of Systems. |
Can Be Used In: |
Zone 2 Zone 21 And Zone 22 Class I, Zone 2 Class I, Division 2, Groups A , B, C, D |
With High-definition Display Capabilities: |
It Makes Images And Text Clearly Visible, Allowing Operators To Accurately Gather Information. |
The Explosion-proof Touchscreen: |
Is A Human-machine Interaction Device Specifically Designed For Hazardous Locations. |
It Supports Various Interface Types: |
Facilitating Connection And Integration With Other Devices, Achieving Inter-connectivity Of Systems. |
| Global (IECEx) | IECEx (applied for) |
| Gas and dust |
Ex db eb nA IIC T6 Gc Ex tb IIIC T80℃ Db |
| Europe (ATEX) | ATEX(applied for) |
| Gas and dust |
|
|
|
|
| Certificates | IECEx; ATEX; |
| Conformity to standards | EN; IEC |
| Degree of protection | IP65 |
| Ambient temperature | -0℃~+50℃ |
| Enclosure material | Stainless steel |
| Enclosure colour | Metal colour |
| Enclosure colour | Window grey(RAL7040) |
| Exposed fastener | Stainless steel |
| Screen Size | 7.0 inches 9.0 inches 12.1 inches |
| Resolution | 800×480 800×480 1280×800 |
| Rated voltage | 24V DC |
| Rated current | 10A |
| Internal&external earthing | M6/M6 |
| Cable entries | Standard M□ x 1.5 plug. |
| Cable gland (optional) | DQM-II (Ex d),DQM-III (Ex d) is recommended |
| Mounting | Surface type |

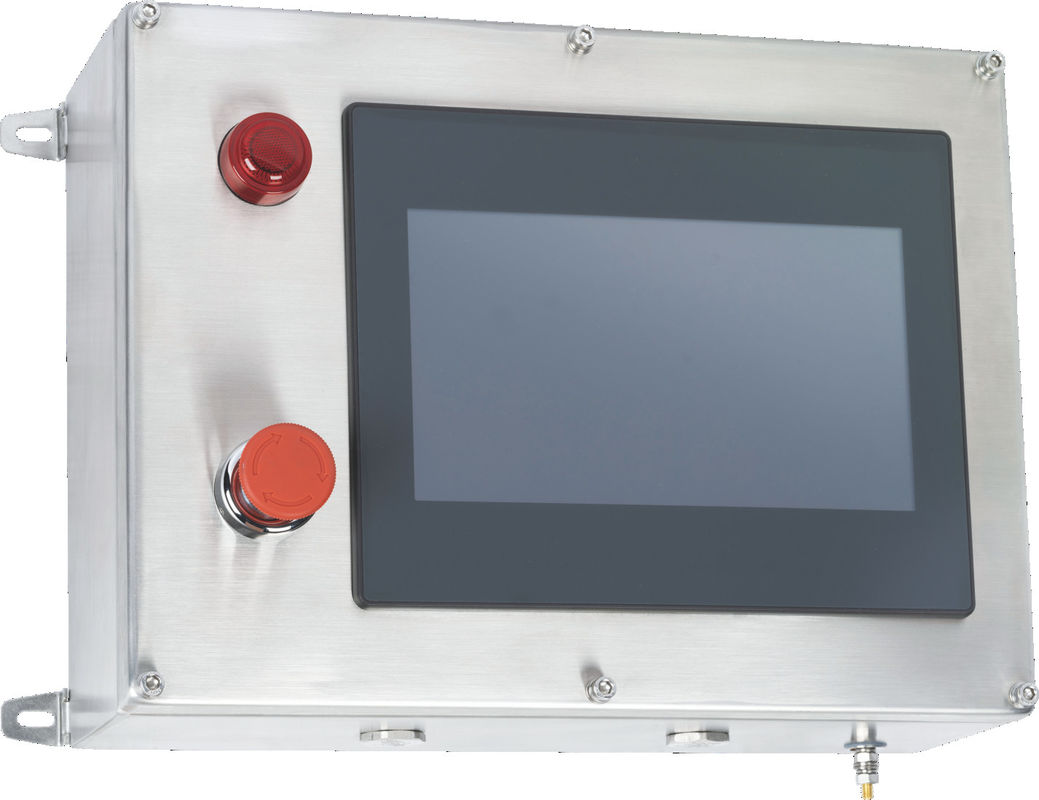

BZC-HMI Series Explosion-proof Touchscreen
(Download here:BZC-HMl Series Explosion-proof Touchscreen.pdf)
