Product Details
Place of Origin: China
Brand Name: Warom
Certification: IECEx; ATEX; CU-TR
Model Number: BZA85
Payment & Shipping Terms
Packaging Details: carton packing/wooden box package
Payment Terms: T/T
Explosion Protection Standard: |
CENELEC,IEC,NEC |
Can Be Used In: |
Zone1,2,21,22,Class I,Zone 1,2.Class I,Division 1,Groups A,B,C,D |
Material: |
Copper-free Aluminium Alloy, Powder Coated Surface |
Explosion Protection Standard: |
CENELEC,IEC,NEC |
Can Be Used In: |
Zone1,2,21,22,Class I,Zone 1,2.Class I,Division 1,Groups A,B,C,D |
Material: |
Copper-free Aluminium Alloy, Powder Coated Surface |
Material | Copper-free Aluminium Alloy, powder coated surface |
Dimensions | As per design |
Enclosure colour | Window grey (RAL7040) |
Exposed fastener | Stainless steel |
Rated voltage | Max.500V AC, 250V DC |
Rated current | Max.10A (AC), 6A (DC) |
Cable entries |
Standard 2 x M25 x 1.5 plugs 2 x NPT3/4" plugs on request |
Cable gland (optional) | DQM-II(Ex d),DQM-III(Ex d) |
Global (IECEx) | IECEx CQM 17.0021X |
Gas and dust |
Ex db IIC T6 Gb Ex tb IIIC T80℃ Db IP66 |
Europe (ATEX) | TUV CY 18 ATEX 0206093 X |
Gas and dust |
|
Certificates | IECEx; ATEX; CU-TR |
Conformity to standards | EN;IEC |
Degree of protection | IP66 |
Ambient temperature | -60℃~+60℃ |

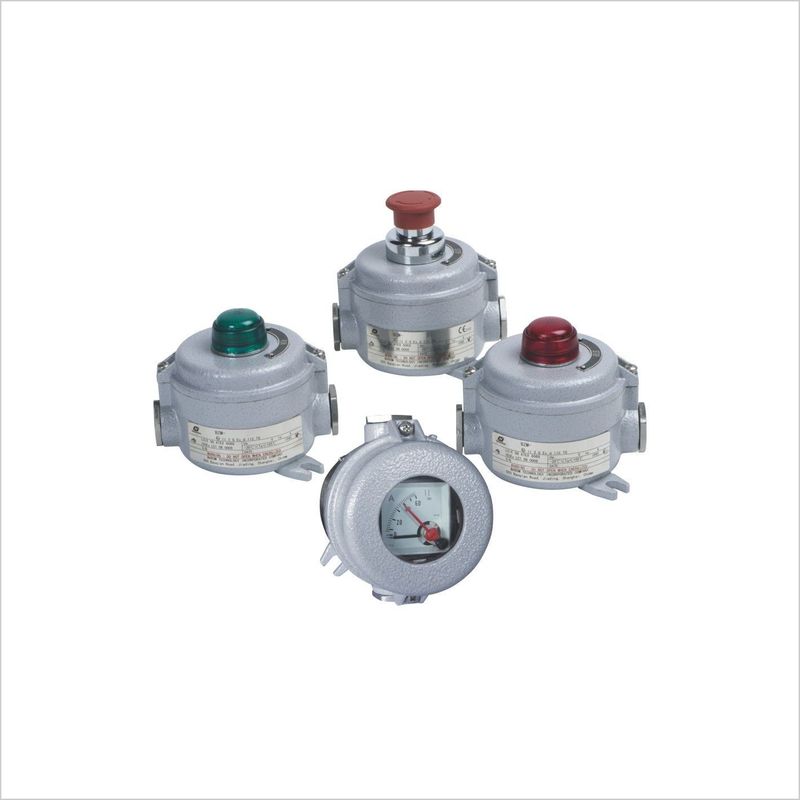

BZA85 Series Explosion-proof Control Unit Systems
(Download here:BZA85 Series Explosion-proof Control Unit Systems.)
Global (IECEx): IECEx CQM 17.0021X
(Download here:IECEx CQM 17.0021X Issue NO.0.pdf)
