Product Details
Place of Origin: CHINA
Brand Name: WAROM
Model Number: BA8060
Payment & Shipping Terms
Can Be Used In: |
Zone 1 And Zone 2 Zone 21 And Zone 22 Class I, Zone 1 And Zone 2 Class I, Division 2, Groups A , B, C, D |
2 Versions Of Component: |
-1 NO -1 NC |
Two-wire Interface: |
Can Be Paralleled, The Maximum Wire Diameter Is 2.5mm². |
Can Be Used In: |
Zone 1 And Zone 2 Zone 21 And Zone 22 Class I, Zone 1 And Zone 2 Class I, Division 2, Groups A , B, C, D |
2 Versions Of Component: |
-1 NO -1 NC |
Two-wire Interface: |
Can Be Paralleled, The Maximum Wire Diameter Is 2.5mm². |
| Global (IECEx) | IECEx CQM 24.0016U |
| Gas and dust |
Ex db eb IIC Gb |
| Europe (ATEX) | CML 24 ATEX 1224U |
| Gas and dust |
|
| Certificates | IECEx; ATEX; |
| Conformity to standards | EN; IEC |
| Degree of protection | IP66 |
| Ambient temperature | -60℃~+90℃ |
| Enclosure Material | Polyamide (PA66) |
| Rated voltage | 500V AC |
| Rated current | 10A |
| Washer | Silicon rubber |
| Spring-return control button | Spring-return control button |
| Mushroom stay-put emergency control button | Self-latching when pulled, self-locking |
| Key-operated control button | Rotate to lock; release with key, key movable in both ways |
| Rotary control button | Two-position switch function, key movable in 90° |
| Double control button | Spring-return control button, 1 control button element has the function of 2 control buttons |
| Mushroom turn-to-release emergency control button | Rotary resetting control button; self-locking |

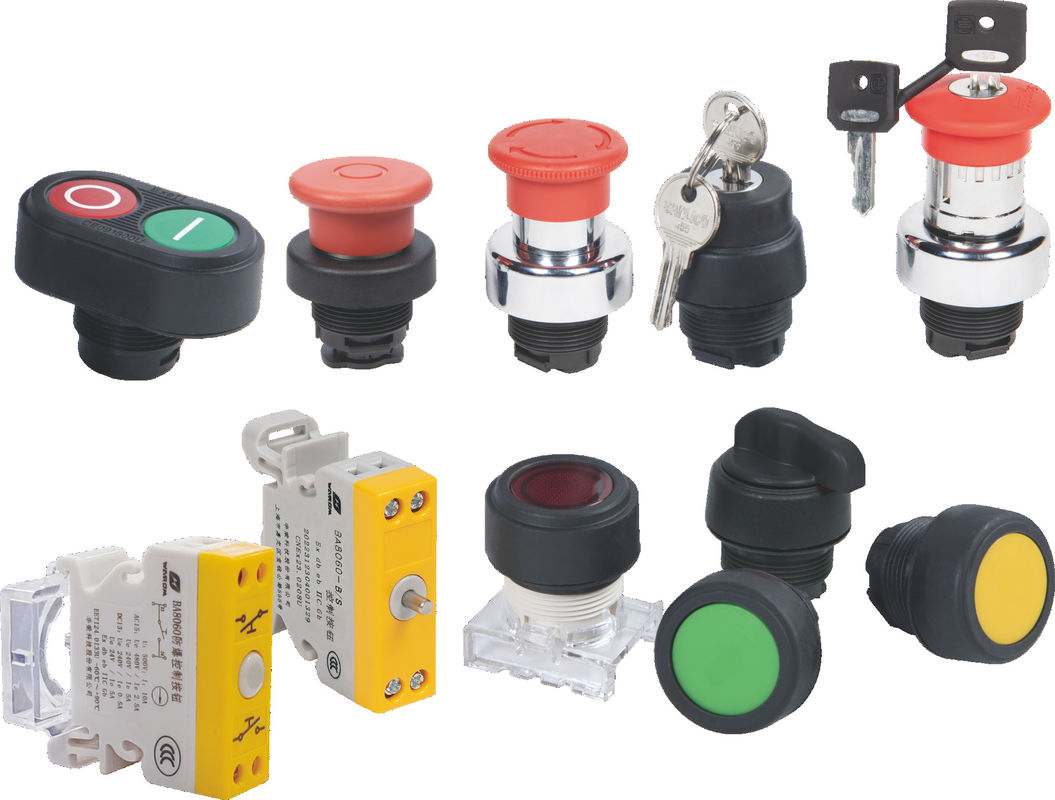

BA8060 Series Control Buttons
(Download here:BA8060 Series Control Buttons.pdf)
Global (IECEx): IECEx CQM 24.0016U
(Download here:IECEx CQM 24.0016U Issue No.0.pdf)
