TECHNICAL DATA
Specifications
| Explosion Protection: | CENELEC,IEC,NEC | Can Be Used In: | Zone1,2,21,22,Class I,Zone 1,2.Class I,Division 1,Groups A,B,C,D |
Product Introduction
Specification
| Global (IECEx) | IECEx CQM 12.0035X |
| Gas and dust | Ex db ib IIC T6 Gb
Ex tb IIIC T80℃ Db |
| Europe (ATEX) | LCIE 11 ATEX 3111X |
| Gas and dust |
II 2 G Ex d ib IIC T6 Gb
II 2 D Ex t IIIC T80℃ Db IP66 |
| Certificates | IECEx; ATEX; CU-TR |
| Conformity to standards | EN; IEC |
| Degree of protection | IP66 |
Data
| Enclosure | Copper-free Aluminium Alloy, powder coated surface, yellow
(RAL1021) |
| Transparent cover | Toughened glass, stands 4J impact |
| Exposed fastener | Stainless steel |
| Rated voltage | 220~240V AC 50/60Hz; 24V DC/AC |
| Lamp specification | LED |
| Lamp power (W) | 5W |

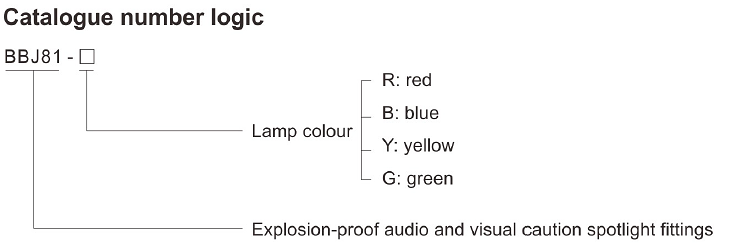

| Lamp colour | Red, blue, yellow, green |
| Flash frequency | 70 (times/min) |
| Sound intensity | 85~105dB (R=1m) |
| Earthing protection | M5 (internal & external earth bolts) |
| Ambient temperature | -40℃~+55℃ |
| Terminal | 3 x 1.5~2.5mm2(L+N+PE) |
| Cable entries | 3 x M25 x 1.5 plugs |
| Cable gland | DQM-II (Ex d) or DQM-III (Ex d) is recommended. |
