BCZ8060 Series Explosion-proof Plugs...
- ◆ This Explosion-proof Plug And Sockets is made of high-performance composite material GRP, which is lightweight, high-strength and corrosion-resistant.

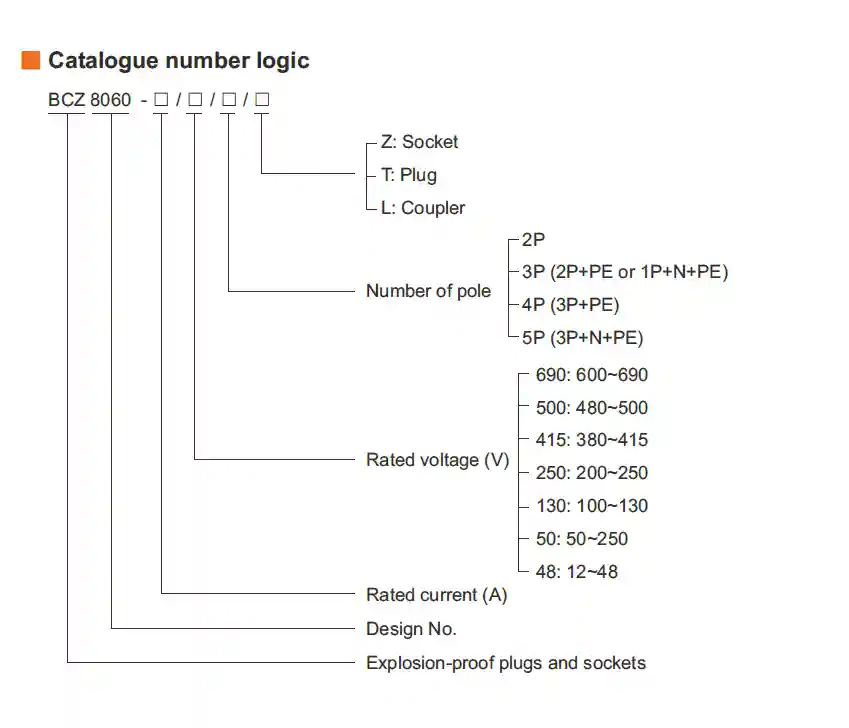

- ◆ Plugs are classified by the number of poles into 2P, 3P, 4P, and 5P.
- ◆The Flameproof Plug and Sockets are quipped with interlocking switch, plug can only be pulled out after switching off; and can be switched after inserting the plug .
TECHNICAL DATA
Explosion Protection Type
- Standards: CENELEC, IEC, NEC.
- Zones: Zone 1 and Zone 2; Zone 21 and Zone 22; Class I, Zone 1 and Zone 2; Class I, Division 2, Groups A, B, C, D.
- Explosion Protection Ratings:
- IECEx (Gas and dust): Ex db eb IIC T6 Gb; Ex tb IIIC T80°C Db.
- ATEX (Gas and dust): II 2 G Ex db eb IIC T6 Gb; II 2 D Ex tb IIIC T80°C Db.
Product Parameters
- Product Type: BCZ8060.
- Certificates: IECEx; ATEX; CU-TR.
- Material: * Enclosure: GRP (glass fibre-reinforced polyester resin).
- Exposed fastener: Stainless steel.
- Electrical Data:
- Rated voltage: AC 480V~500V, 380V~415V, 200V~250V, 100V~130V, 12V~48V; DC 50V~250V, 12V~48V.
- Rated current: 10A, 16A.
- Protection:
- Degree of protection: IP66.
- Ambient temperature: -20°C ~ +55°C.
- Connection & Entries:
- Cross section of cable: 2.5~4 $mm^{2}$.
- Cable entries (Socket): Standard 1 x M25x1.5 cable gland (plastic), 1 x M25x1.5 plug (plastic).
- Cable glands: Cable gland (optional).
Product Classification & Origin
- HS code: 853690.
- Country of origin: China.
Applicable Industries
- Engineered for: Petrochemical, natural gas, coal, metallurgy, military, nuclear power, aerospace, firefighting, pharmaceuticals, textiles, grain & oil, municipal services, public security, shipping, ports, railways, and more.
- Utility: Offers standardized, convenient power interfaces for mobile equipment, eliminating complex temporary wiring in harsh industrial conditions.
- Safety Performance: High ingress IP protection against dust and moisture, preventing operational failures in hazardous locations.
Credibility
- Certifications: Certified to ATEX, IECEx, EAC and other global standards to meet stringent requirements.
- Reliability: Delivers reliable performance even in damp, vibrating, and corrosive environments.
- Support: Warom offers seamless, end-to-end service from initial design assessment to final certification and occupational health and safety compliance.
FAQ
- Q1: How to select the appropriate explosion-proof rating based on my operating environment?
- A: Selection depends on three key factors: a. Area Classification (e.g., Zones 0/1/20/21 require high protection like Ex d); b. Explosive Substance Properties (gas groups/temperature classes like T6); c. Environmental Conditions (IP ratings and corrosion protection).
- Q2: What is the relationship between IP ratings and explosion-proof ratings?
- A: They are independent but equally critical. IP rating focuses on preventing ingress of solids and water, while Explosion-proof rating ensures internal sparks cannot ignite the external hazardous atmosphere. Outdoor applications typically require at least IP56.
- Q3: What are the key precautions for installing explosion-proof connectors?
- A: Installation must be performed by Qualified Personnel. Key steps include using compatible Cable Sealing (glands) and ensuring Reliable Grounding of the enclosure to prevent leakage risks.
