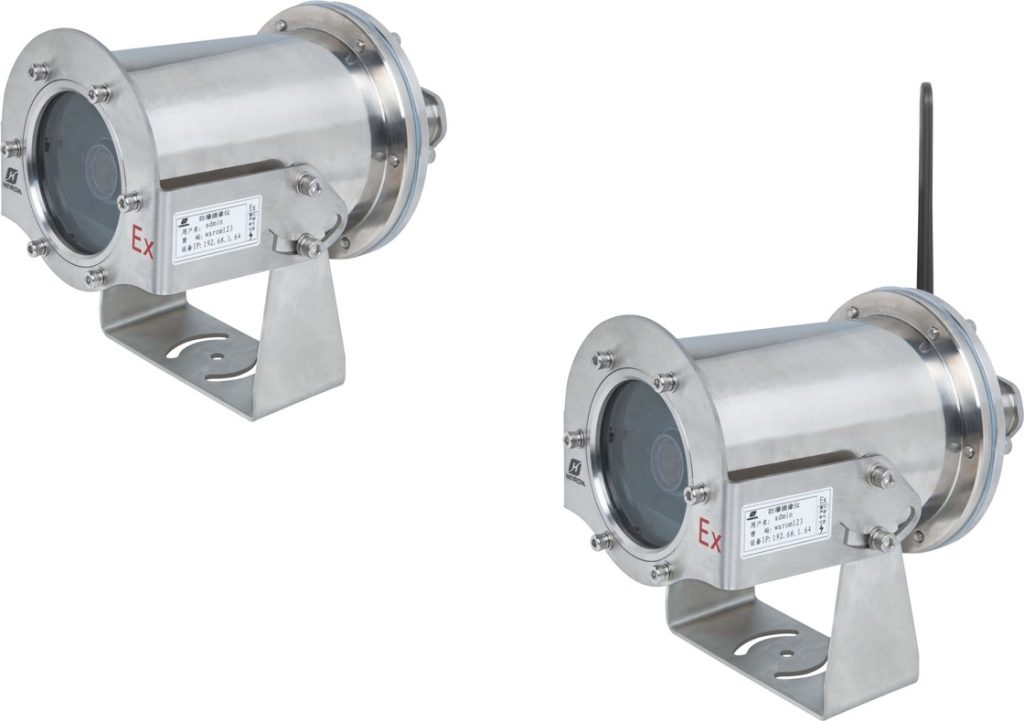

BJK-S&G Explosion-proof Camera

◆ The explosion-proof integrated camera is used as a fixed terminal in the intelligent video surveillance system for on-site scanning transmission, real-time video transmission or real-time video storage, remote network image transmission and other functions.
◆ Suitable for fixed-point monitoring of key areas; equipped with semi-fixed pan-tilt, whose angles can be manually adjusted vertically and horizontally.
◆ Intelligent temperature control devices can be installed inside the certified ex cameras, and the product can be applied to -60℃ to +63℃ harsh working conditions.
◆ The camera of hazardous areas is configured with wireless module for transmitting video signals by using 4G, 5G, WIFI, and other wirelessnetworks.

TECHNICAL DATA

Explosion Protection Ratings:
- IECEX(Gas and dust): Ex db IIC T6 Gb
- Ex tb IIIC T80℃ Db
- ATEX(Gas and dust): II 2 G Ex db IIC T6 Gb
- II 2 D Ex tb IIIC T80℃ Db
Degree of Protection: IP66
Maximum Input Voltage: DC 7.0V
Maximum Input Current: 282mA
Maximum Input Power: 494mW
Maximum Internal Capacitance: $12\mu F$
Maximum Internal Inductance: 0mH
Port: USB 2.0

Core Function: A rugged computing solution specifically engineered for explosive environments containing flammable gases, vapors, or dust to ensure safe operation by preventing the device from becoming an ignition source.
Applicable Industries: Petroleum, chemical, mining, military, offshore oil platforms, and cruise ships.
Certifications: Pursuing or holding key certifications including ATEX, IECEx, and EAC.

Q1: What is an explosion-proof mouse? How is it different from a regular tablet?
A1: It is specifically engineered for flammable environments using technologies like intrinsic safety to prevent it from becoming an ignition source, whereas regular rugged tablets only offer basic environmental protection.
Q2: In which hazardous areas can it be safely used?
A2: It is certified for safe operation in Zone 1 and Zone 2 hazardous areas.
Q3: Are there special requirements for battery life and charging?
A3: Safety charging is critical; the original explosion-proof certified charger must be used, and charging within a hazardous area is strictly forbidden.
Q4: What should I do if the screen or housing is damaged?
A4: Immediately cease use in any hazardous area and contact official after-sales service for professional repair; do not disassemble it yourself.
Q5: What are the absolute prohibitions for daily use?
A5: Never charge or disassemble the device in a hazardous area, never use non-original batteries or chargers, and never continue use if the housing is cracked or damaged.

Description	Document Type	Language	Download
BJK-S G Series Explosion-proof Camera	PDF
W12-08.BJK-S_IECEx TUR 22.0044X Issue No.0	PDF
