BJK-S/GD Series Security Explosion...

◆ The explosion-proof integrated camera is used as a fixed terminal in the intelligent video surveillance system for on-site scanning transmission, real-time video transmission or real-time video storage, remote network image transmission and other functions.
◆ Suitable for fixed-point monitoring of key areas; equipped with semi-fixed pan-tilt, whose angles can be manually adjusted vertically and horizontally.
◆ Intelligent temperature control devices can be installed inside the certified ex cameras, and the product can be applied to -60℃ to +63℃ harsh working conditions.
◆ The camera of hazardous areas is configured with wireless module for transmitting video signals by using 4G, 5G, WIFI, and other wirelessnetworks.

TECHNICAL DATA

Explosion Protection Ratings:
- IECEX(Gas and dust): Ex db IIC T6 Gb
- Ex tb IIIC T80℃ Db
- ATEX(Gas and dust): II 2 G Ex db IIC T6 Gb
- II 2 D Ex tb IIIC T80℃ Db

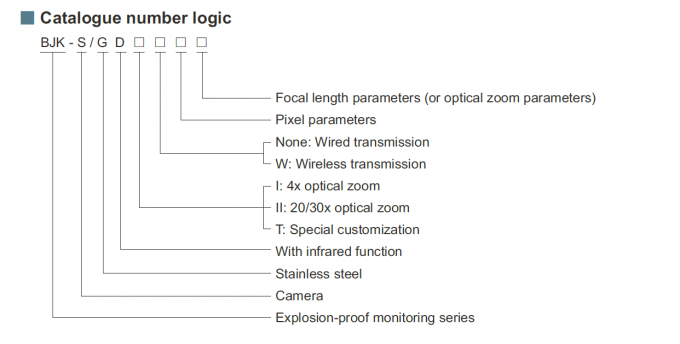

Product Type: BJK-S/GD
Housing Material: 304 stainless steel or 316 or 316L
Rated Voltage: 176-264VAC, 88-132VAC, 24VAC, 24VDC and 12VDC
Resolution: 2/3/4 million pixels
Infrared Fill Light Distance: 30m, 50m, 100m
Minimum Illumination: Color $\le$ 0.001lx (AGC ON), Black & White $\le$ 0.0001lx (AGC ON)
Video Coding Format: H.265, H.264, H.264B, MJPEG
Wireless Module: Support 4G, 5G, WIFI connection
Degree of Protection: IP66/IP68
Ambient Temperature: -60°C to +63°C
Cable Gland: 2×M20×1.5 or NPT 1/2″ inlet port, suitable for $\Phi$6.5mm-$\Phi$14.5mm cable
Installation Method: Fixed bracket, base, column
Weight: 5kg

Core Function: A rugged explosion-proof integrated camera designed for harsh industrial environments to provide real-time monitoring and hazard warnings without becoming an ignition source.
Applicable Industries: Petroleum, chemical, natural gas, mining, offshore platforms, and cruise ships.
Certifications: Built to international standards and certified by bodies such as IECEx and ATEX.

Q1: How do I know if my location needs an explosion-proof camera?
A1: A professional assessment is required to classify hazardous zones (Zone 0, 1, 2); legally, cameras with appropriate ratings must be used in designated danger areas like tank farms.
Q2: Are these cameras suitable for outdoor use?
A2: Yes, but they require a minimum protection rating of IP66/IP67 and corrosion-resistant housing (stainless steel or heavy-duty coating).
Q3: What features are needed for offshore use?
A3: Beyond standard ratings, 316L stainless steel housing, IP66/IP67 durable seals, and marine standard certifications like NORSOK are highly recommended.
Q4: Can I repair a damaged housing or lens myself?
A4: No, opening the camera in a hazardous area voids its safety certification; always contact the manufacturer or an authorized service center for repairs.
