BKC Series Explosion Proof...
- Place of Origin: China
- Brand Name: Warom
- Certification: IECEx; ATEX; CU-TR
- Model Number: BKC
- Packaging Details: carton packing/wooden box package
- Payment Terms: T/T
TECHNICAL DATA
Specifications
| Explosion Protection: | CENELEC,IEC,NEC | Can Be Used In: | Zone 2 |
| Warranty: | 1 Year | Power Supply: | 220-240V, 50Hz |
| Cooling Capacity: | 18000 BTU 24000 BTU | Dimensions: | 730 X 680 X 450 |
| Cooling Power Consumption: | 5400W 7000W | Filter Type: | Anti-Bacterial |
Product Introduction
Specification
| Global (IECEx) | IECEx CQM 11.0021X |
| Gas | Ex d nC IIB T4 Gc |
| Europe (ATEX) | LCIE 11 ATEX 1002X |
| Gas |
II 3 G Ex d nC IIB T4 Gc |
| Certificates | IECEx; ATEX; CU-TR |
| Conformity to standards | EN;IEC |
Data

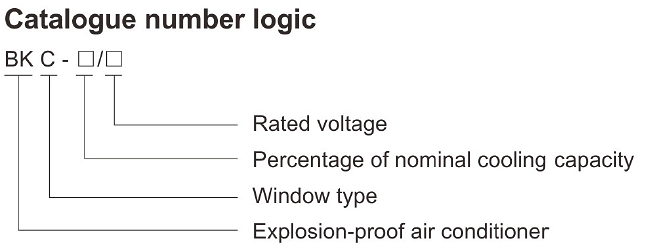

| Type | BKC-50/220 | BKC-70/220 | |
| Cooling capacity | W | 5400 | 7000 |
| BTU | 18000 | 24000 | |
| Rated voltage/Frequency (V/Hz) | 220~240/50 | 220~240/50 | |
| Input power (P) | 2P | 3P | |
| Cooling input power (W) | 2750 | 3770 | |
| Rated current (A) | 12.8 | 17.4 | |
| Application areas (m²) | 22~32 | 30~40 | |
| Sound level (dB) | Indoor unit | ≤53 | ≤57 |
| Outdoor unit | ≤60 | ≤63 | |
| Outline dimensions (L x W x H) (mm) | 730 x 680 x 450 | 730 x 680 x 450 | |
| Weight (kg) | 50.00 | 55.00 | |
| Note: The above technical data is for normally supplied products of T3 (-7℃~+55℃) temperature class, voltage is
220~240V AC/50Hz, other voltages are available, such as 220~240V AC/60Hz, please specify when ordering. The above data is only for reference, the actual product shall prevail. |
|||
