BLJ85 Series Explosion-proof Connector
- ◆ This Explosion-proof Plugs And Sockets is made of high-performance composite material Copper-free Aluminium Alloy, which is high-strength and corrosion-resistant.
- ◆ Plugs are classified by the number of poles into 3P, 4P, and 5P.
- ◆The Flameproof Plugs and Sockets are quipped with interlocking switch, plug can only be pulled out after switching off; and can be switched after inserting the plug .
TECHNICAL DATA
Explosion Protection Type
- Standards: CENELEC, IEC, NEC.
- Zones: Zone 2; Zone 21 and Zone 22; Class I, Zone 2; Class I, Division 2, Groups A, B, C, D.
- Explosion Protection Ratings:
- IECEx (Gas and dust): Ex ec IIC T6/T5 Gc; Ex tb IIIC T80°C Db.
- ATEX (Gas and dust): II 3 G Ex ec IIC T6/T5 Gc; II 2 D Ex tb IIIC T80°C Db.
Product Parameters

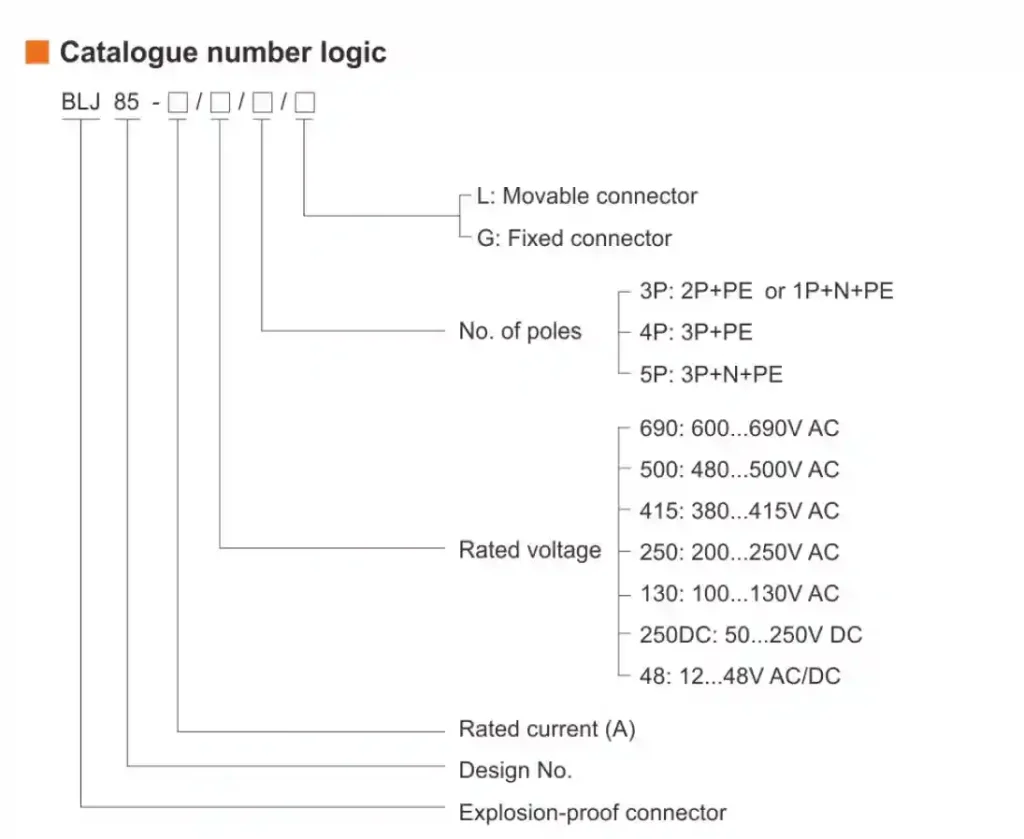

- Product Type: BLJ85-10/16.
- Certificates: IECEx; ATEX.
- Material:
- Enclosure: Copper-free Aluminium Alloy, anodic-oxidation treatment for surface.
- Exposed fastener: Stainless steel.
- Electrical Data:
- Rated voltage: AC 380…415V, 200…250V, 100…130V; DC 50…250V; AC/DC 12…48V.
- Rated current: 10A, 16A.
- Protection:
- Degree of protection: IP66.
- Ambient temperature: T6: -60°C~+40°C, T5: -60°C~+60°C.
- Connection & Entries:
- Cable gland: Suitable for cables of $\Phi9$ ~ $\Phi14$ (mm).
Product Classification & Origin
- HS code: 853690.
- Country of origin: China.
Applicable Industries
- Engineered for: Industries such as petrochemical, natural gas, coal, metallurgy, military, nuclear power, aerospace, firefighting, pharmaceuticals, textiles, grain & oil, municipal services, public security, shipping, ports, railways, and more.
- Utility: These high-strength, corrosion-resistant connectors provide standardized power interfaces for mobile equipment, eliminating complex temporary wiring.
- Safety Performance: They offer high ingress IP protection against dust and moisture, which is essential for preventing operational failures in hazardous locations.
Credibility
- Certifications: Warom’s connectors are certified to ATEX, IECEx, EAC, and other global requirements.
- Reliability: They deliver reliable performance even in damp, vibrating, and corrosive harsh environments.
- Support: Warom supports projects with seamless, end-to-end service, from initial design assessment to final certification and global standards adherence.
FAQ
- Q1: How to select the appropriate explosion-proof rating based on my operating environment?
- A: Selection depends on area classification (Zones 0/1/20/21 require Ex d, while Zones 2/22 may use Ex e), explosive substance properties (gas groups and temperature classes), and environmental conditions (IP and corrosion requirements).
- Q2: What is the relationship between IP ratings and explosion-proof ratings?
- A: They are independent but equally critical. IP ratings focus on preventing ingress of solids and water, while explosion-proof ratings ensure internal sparks cannot ignite the external atmosphere.
- Q3: What are the key precautions for installing explosion-proof connectors?
- A: Installation must be performed by qualified personnel using compatible, properly tightened cable glands and ensuring the enclosure is permanently and reliably grounded.
