BZC8050 Series Control Stations (Stainless Steel)

BZC8050 Series Control Stations...

◆ This explosion-proof control stations are made of Copper-free Aluminium Alloy, can ensure safety by containing internal explosions and isolating the external hazardous atmosphere.
◆ The explosion proof enclosures treated with anti-static coating and all fasteners are anti-loosening.
◆The layout of buttons, switches, and other componentson of the explosion-proof control panel is rational and straightforward,ensuring ease of use and quick mastery.
◆The control methods of ex control station can be selected based on actual needs, such as manual control, automatic control, or remote control, catering to varying application scenarios.

TECHNICAL DATA

Explosion Protection Type

Standards: CENELEC, IEC, NEC
Zones: Zone 1 and Zone 2; Zone 21 and Zone 22; Class I, Zone 1 and Zone 2; Class I, Division 2, Groups A, B, C, D
Explosion protection：IECEX(Gas and dust): Ex db eb mb IIC T6/T5 Gb1)
Ex db eb IIC T6/T5 Gb1)
Ex tb IIIC T80℃ Db1)
ATEX(Gas and dust): II 2 G Ex db eb mb IIC T6/T5 Gb1)
II 2 D Ex db eb IIIC T6/T5 Gb1)
II 2D Ex tb IIC T80℃ Db1)

Product Parameters

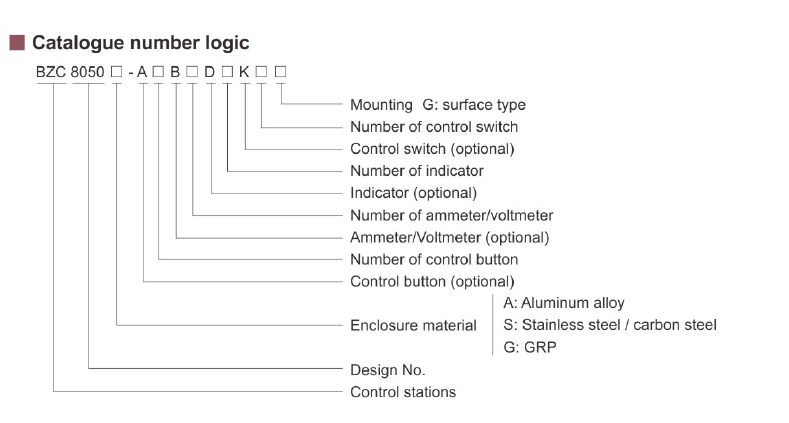

Product Type: BZC8050(SS)
Enclosure Material: Stainless steel
Exposed fastener: Stainless steel
Enclosure Color: metal colour
Degree of protection: IP66
Components:
1. Technical data of BA8060 control button on P4/38-41
2. Technical data of BD8060 indicator on P4/42-44
3. Technical data of BK8050 control switch on P4/45-50
4. Technical data of BB8050 explosion-proof ammeter/voltmeter on P4/51-53
Cable entries: Mox1.5 plug, please see the Selection table on P4/25
Cable glands: DQM-I(Ex e) is recommended.

Product Classification & Origin

HS code: 853710
Country of origin: China

Applicable Industries

Across heavy industries from oil and gas to petrochemical and other industries, flammable elements are a constant threat. A single spark from ordinary equipment can be devastating. Our explosion-proof control stations is the reliable solution. Its certified flameproof design ensures it will not become an ignition source, guaranteeing safety in hazardous areas. This explosion-proof control panel features a multi-position, multi-contact design, enabling it to issue complex command sequences (such as forward-reverse-speed change-stop). It is perfectly suited as a flameproof control stations for on-site equipment that requires precise process control and is built for harsh industrial environments.

Credibility

Hazardous Area Control Station of Warom are engineered for safety in hazardous environments. Certified to ATEX, IECEx, EAC and so on… they meet stringent global requirements. It serves not only as a guardian of personnel and the environment, but also as a reliable partner in ensuring production continuity.

FAQ

Q1: What does “Explosion-proof” mean for an explosion-proof control station?
- A1: “Explosion-proof” does not mean the equipment can withstand an external explosion. Rather, it signifies the device’s ability to prevent the ignition of a surrounding explosive atmosphere. It achieves this through specialized construction that contains any internal spark within the housing, or by limiting energy to levels incapable of igniting the external environment.
Q2: In which industries are explosion-proof operator stations primarily used?
- A2: They are widely used in any environment where flammable gases, vapors, or dusts are present, such as: Oil & Gas (Drilling platforms, refineries, pump stations); Chemical & Pharmaceutical (Chemical plants, solvent handling areas); Food Processing (Flour mills, sugar refineries, and other facilities with combustible dust); Marine & Offshore (Offshore platforms and ships).
Q3: Can we open the operator station ourselves for maintenance or component replacement?
- A3: No! Only specially trained and authorized personnel may open the ex control stations, and only in a confirmed safe area. Unauthorized opening compromises explosion-proof integrity and creates serious safety risks.
