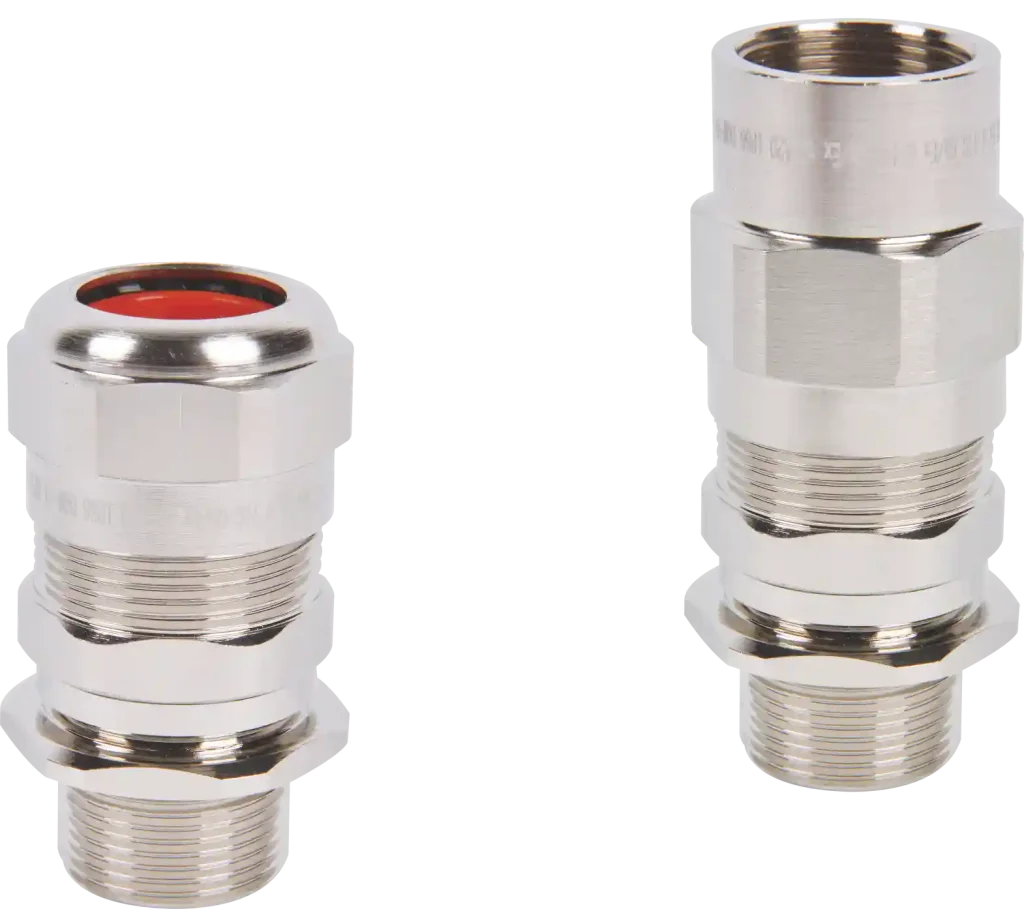

DQM-III/I Series industrial Ex...
- Place of Origin: China
- Brand Name: Warom
- Certification: IECEx; ATEX; CU-TR
- Model Number: DQM-III
- Packaging Details: carton packing/wooden box package
- Payment Terms: T/T
TECHNICAL DATA
Specifications
| Explosion Protection: | CENELEC,IEC,NEC | Can Be Used In: | Zone1,2,21,22,Class I,Zone 1,2.Class I,Division 1,Groups A,B,C,D |
Product Introduction
Specification
| Global (IECEx) | IECEx TUR 22.0035X |
| Gas and Dust | Ex db IIC Gb(M and NPT thread)
Ex eb IIC Gb(M, NPT and G thread) Ex ta IIIC Db(M and NPT thread) |
| Europe (ATEX) | TÜV 22 ATEX 8855X |
| Gas and Dust |  II 2 G Ex db IIC Gb(M and NPT thread);II 2 G Ex eb IIC Gb(M, NPT and G thread);II 2 D Ex tb IIIC Da(M and NPT thread) |
| Certificates | IECEx; ATEX; CU-TR |
| Conformity to standards | EN 60079-0, EN 60079-1, EN 60079-7, EN 60079-31 IEC 60079-0, IEC 60079-1, IEC 60079-7, IEC 60079-31 |
| Degree of protection | IP66/IP68 (unarmored cable gland M25×1.5 to M63×1.5 and NPT 1/2″ to NPT 2″)
IP66 (the other threads) |
| Ambient temperature | -60℃~+90℃ |
Data
| Material | Stainless steel or nickel plated brass |
| Connection thread | Metric thread is standard type; G thread or NPT thread is optional |
