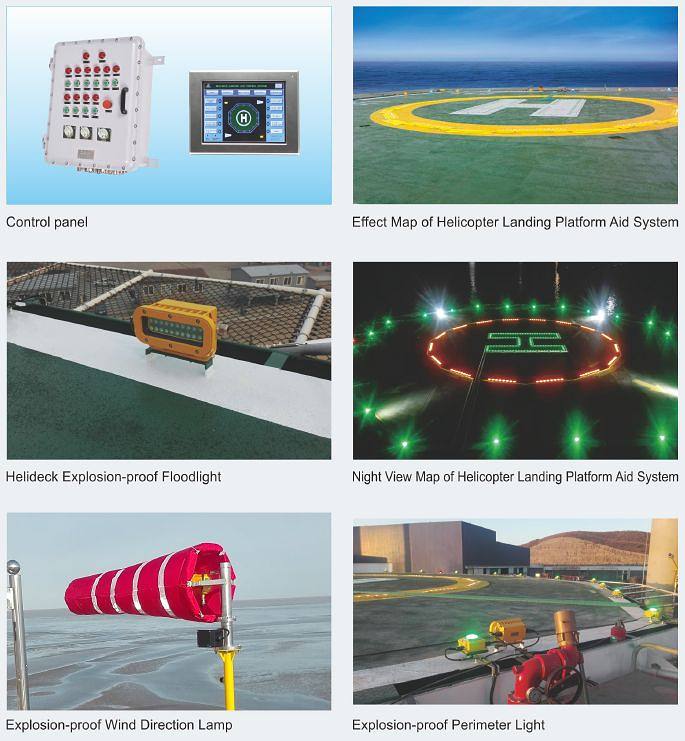

Explosion Proof Helicopter Landing...
- Place of Origin: China
- Brand Name: Warom
- Packaging Details: carton packing/wooden box package
- Payment Terms: T/T
TECHNICAL DATA
Specifications
| Explosive Hazardous Atmosphere: | Zone 1, Zone 2, Zone 21 And Zone 22 | Widely Used For: | Landing Aid Signal On Helideck Of Marine Engineering Oil And Gas Drilling Platforms And Ships Etc. Hazardous Area |
| Can Reliably Work In: | Severe Environment Where Is Easily Affected By Moisture, Vibration, Or Corrosion | Temperature: | -40℃~+55℃ |
Product Introduction
Specification
◆ Systematically meet CAP 437, ICAO standards;
◆ All the products and accessories installed on the platform of the helicopter platform are suitable for mounting in the range of ambient temperature (-40℃~+55℃);
◆ All explosion proof lamps and exposed fasteners installed on helicopter platforms can resist the corrosion of ocean environment.
◆ All lamps meet at least the requirements of the IEC international protection (IP) standard IP 66, i. e. Dust proof and strong water injection.
Data
| HDL-H
Helideck Explosion-proof H Light |
II 2 G Ex db eb IIC T6 Gb
II 2 D Ex tb IIIC T80℃Db IP66/IP67 |
| ◆ Enclosure uses high quality maritime aluminium alloy, which is applied to
the ocean environment. ◆ LED green light source, service life is up to 100000 hours. ◆ Standard light and bright light of light fittings can be switched through controlling the system and the dimming instruction of light fittings. ◆ Professional optics software designed secondary light distribution system, conform to CAP437 standard requirements. ◆ Total height is less than 25mm, protection degree is higher to IP66/IP67/IP69. |
|
| HDL-C
Helideck Explosion-proof Circle Light |
II 2 G Ex db eb IIC T6 Gb
II 2 D Ex tb IIIC T80℃ Db IP66/IP67 |
| ◆ Enclosure uses high quality maritime aluminium alloy, which is applied to
the ocean environment. ◆ LED yellow light source, service life is up to 100000 hours. ◆ Standard light and bright light of light fittings can be switched through controlling the system and the dimming instruction of light fittings. ◆ Professional optics software designed secondary light distribution system, conform to CAP437 standard requirements. ◆ Total height is less than 25mm, protection degree is higher to IP66/IP67/IP69. |
|
| HDL-P
Explosion-proof Perimeter Light |
II 2 G Ex db eb IIC T6 Gb
II 2 D Ex tb IIIC T80℃ Db IP66/IP67 |
| ◆ Enclosure is precision casting by 316 stainless steel, powder coated
on surface after finish machining, strong corrosion resistance. ◆ LED green light source, service life is up to 100000 hours. ◆ Professional optics software designed secondary light distribution system, conform to CAP437 standard requirements. ◆ Total height is less than 100mm, protection degree is higher to IP66/IP67. |
|
| HDL-F
Helideck Explosion-proof Floodlight |
II 2 G Ex db eb mb op is IIC T5 or T4 Gb
II 2 D Ex tb op IIIC T95℃ or T130℃Db IP66/IP67 |
| ◆ Enclosure uses maritime aluminium alloy, powder coated on surface after
preservative treatment. ◆ LED white light source, service life is up to 100000 hours. ◆ In-built constant voltage constant current driving power, wide voltage input, constant power output, fast start, stable performance, surge resistance, overcurrent, open circuit, short circuit, etc. protection function. ◆ Total height is less than 135mm, protection degree is higher to IP66/IP67. |
|
| HDL-S
Explosion-proof Status Light |
II 2 G Ex db eb mb op is IIC T6Gb
II 2 D Ex tb op is IIIC T80℃ Db IP66 |
| ◆ Enclosure uses maritime aluminium alloy, powder coated on surface after
preservative treatment. ◆ Professional optics software designed secondary light distribution system, conform to CAP437 standard requirements. ◆ Through the control system, status instructions are given to the lamps. The red LED light source flashes and gives warning signals. ◆ Total height is less than 100mm, protection degree is higher to IP66/IP67. |
|
| HDL-W
Explosion-proof Wind Direction Lamp |
II 2 G Ex db eb op is IIC T6 Gb
II 2 D Ex tb op is IIIC T80℃ Db IP66 |
| ◆ Enclosure uses maritime aluminium alloy, powder coated on surface after
preservative treatment. ◆ Professional optics software designed secondary light distribution system, conform to CAP437 standard requirements. ◆ Through the control system, status instructions are given to the lamps. The red LED light source flashes and gives warning signals. ◆ Total height is less than 100mm, protection degree is higher to IP66/IP67. |
|
| HRMD91
Explosion-proof Distribution Panels |
II 2 G Ex db IIB+H2T6 Gb
II 2 G Ex tb IIIC T80℃ Db IP66 |
| ◆ Copper-free Aluminium Alloy enclosure, powder coated surface.
◆ Equipped with specialized hinge structure, which can prevent the flameproof joints from damage when opening and closing the box, and greatly prolong the service life of box. ◆ The boxes can be combined and installed freely to save space and meet the requirements of various distribution systems. ◆ Special requirements on request. |
