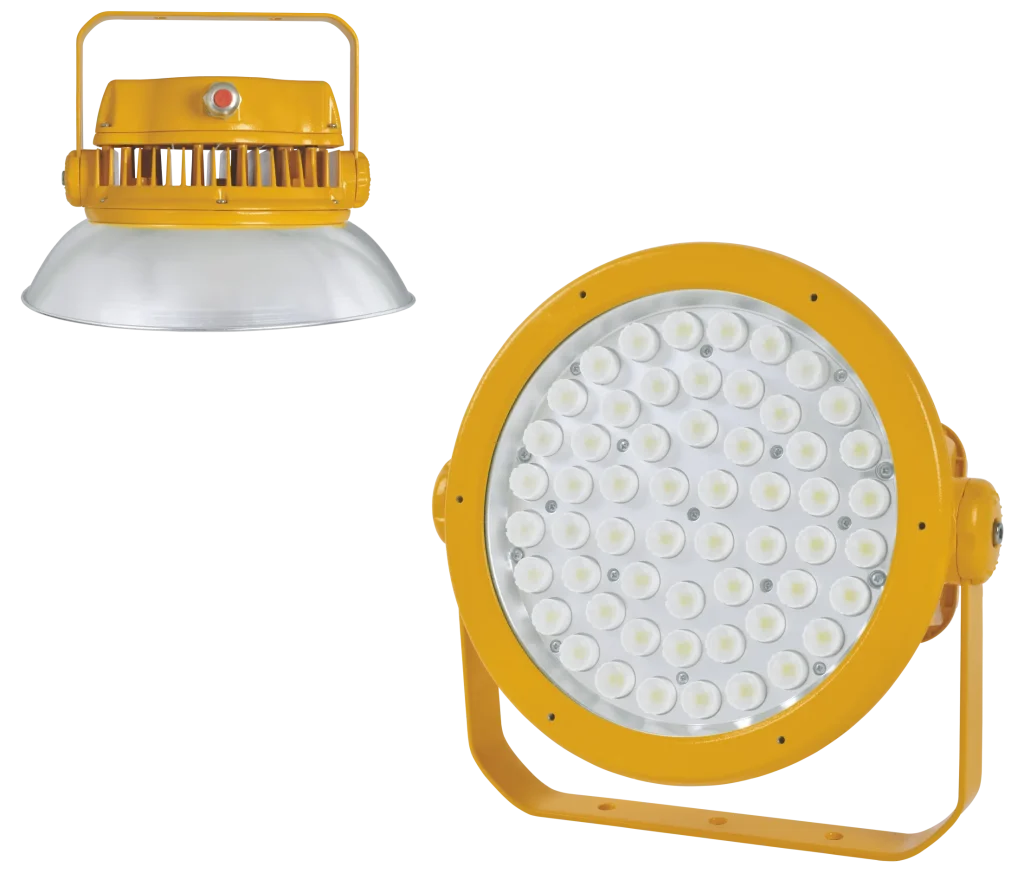

HRND95-□Z Series Explosion-proof LED...

◆Equipped with an intelligent control chip, it supports individual lamp control.
◆Built-in intelligent sensor chip continuously monitors lamp parameters including power, current, voltage, brightness, on/off status, and fault conditions.
◆Features an embedded Zigbee industrial wireless communication module.
◆The lamp housing can be equipped with a human presence detection module.

TECHNICAL DATA

Explosion Protection Type

Standards:CENELEC, IEC, NEC
Zones: Zone 2
- Zone 21 and Zone 22
- Class I, Zone 2
- Class I, Division 2, Groups A ,B, C, D

Product Parameters

Explosion protection:
IECEX(Gas and dust): Ex ec mc IIC T□¹⁾ Gc
- Ex tb IIIC T□¹⁾ Db
ATEX(Gas and dust): II 3 G Ex ec mc IIC T□¹⁾ Gc
- II 2 D Ex tb IIIC T□¹⁾ Db
Material:
Enclosure: Copper-free aluminium alloy, powder coated surface
Glass cover: Toughened glass, stands 4J impact
Exposed fastener: Stainless steel
LED driver:Wide voltage input, CC-CV (constant current – constant voltage) output, power factor ≥0.95, with function of distributed current, constant current, surge-proof and anti-electromagnetic interference, and protection against overcurrent, open circuit,and short circuit.
Lamp:
Lamp specification: LED module
Lamp power (W) : Type I: 40W,60W
- Type II:80W,120W
  - Type III:160W,200W
    - Type IV:240W, 300W
Colour rendering index (Ra): ≥80
Colour temperature (CCT): 5000K
Rated voltage:100-277V AC 50/60Hz
Degree of protection: IP66
Ambient temperature: -40℃~+58℃(+40℃)
Terminal: 3×1.5~4mm² (L+N+PE)
Cable entries : 1×M20×1.5 cable gland (DQM-I Ex eb)
HS code:940549
Country of origin: China

Applicable Industries

Explosion-Proof Intelligent Lights is specifically engineered for a wide range of industries and hazardous environments, including petrochemical, natural gas, coal, metallurgy, military, nuclear power, aerospace, firefighting, pharmaceuticals, textiles, grain & oil, municipal services, public security, shipping, ports, railways and so on.
It incorporates core advantages such as a high-strength explosion-proof structure, excellent sealing performance, high efficiency and energy savings, long service life, corrosion resistance, impact resistance, easy maintenance, and flexible installation. Capable of stable operation under harsh environmental conditions including high temperatures, dusty atmospheres, and corrosive gases, it provides continuous, reliable, safe, and bright lighting assurance for personnel in Hazardous Area.

Credibility

Warom Explosion-Proof Light Fittings meet the most stringent international standards, carrying full ATEX, IECEx, and EAC certifications to ensure compliance across with the global markets. Built to endure extreme conditions, our lighting luminaires boast IP65/IP66/IP67 ratings, being completely waterproof, dustproof and corrosion-resistant. We partner with clients through comprehensive technical support, robust warranty coverage, and global logistics. Wherever you operate, Warom ensures seamless project execution for safe and reliable illumination solutions in hazardous areas.
Warom Explosion-Proof Lighting: Engineered for Global Compliance and Reliability.

CTA

For more detailed information on our Intelligent Lighting Management and Control System, customized solutions, or to request a quote, please do not hesitate to contact us. We are committed to providing you with professional lighting solutions and comprehensive technical service support.

FAQ

Q1: Are the explosion-proof Intelligent lights suitable for outdoor environments?
A: Yes, the product features an IP66 protection rating, enabling it to withstand outdoor rain, snow, and dusty conditions.
Q2: Do you support customization for different voltages?
A: Yes, we support customization and can provide a range of voltages from 96V to 277V among other custom voltage specifications.
Q3: What installation options are available?
A: We offer various flexible installation methods, including pendant mounting, wall mounting, pole mounting, ceiling mounting, and pendant chain installation.
