BKG(R) Series Explosion Proof...

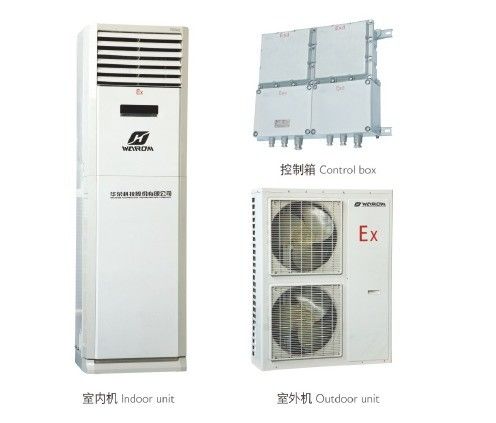

Name: BKG(R) Series Explosion Proof Tank Air Conditioner ATEX Approved For Zone 1 Zone 2
Brand: Warom
SKU: 1109

TECHNICAL DATA

Explosion Protection:

CENELEC,IEC,NEC

Can Be Used In:

Zone 1,2

BKG(R) Series Explosion Proof Tank Air Conditioner ATEX Approved For Zone 1 Zone 2

Global (IECEx)	IECEx (applied for)
Gas	Ex db eb ib [ib Gb] nC IIB T4 Gc Ex db eb ib [ib Gb] nC IIC T4 Gc
Europe (ATEX)	ATEX (applied for)
Gas	II 3 (2) G Ex db eb ib [ib Gb] nC IIB T4 Gc II 3 (2) G Ex db eb ib [ib Gb] nC IIC T4 Gc
Certificates	IECEx; ATEX
Conformity to standards	EN; IEC

Type		BKG-70/220	BKGR-70/220	BKG-120/380	BKGR-120/380
Cooling capacity	W	7300	7300	12200	12200
Cooling capacity	BTU	24000*	24000*	40000*	40000*
Heating capacity(W)		–	7800	–	14500
Rated voltage/Frequency(V/Hz)		220/50	220/50	380/50	380/50
Input power(P)		3P	3P	5P	5P
Cooling input power (W)		2780/12.1	2780/12.1	4380/7.8	4380/7.8
Heating input power (W)		─	2600/11.3	─	5000/8.9
Application areas (m2)		27~32	27~32	50~80	50~80
Sound level (dB)	Indoor unit	43*	43*	52*	52*
Sound level (dB)	Outdoor unit	53*	53*	56*	56*
Outline dimensions (L x W x H) (mm)	Indoor unit	1900 x 600 x 280*	1900 x 600 x 280*	1900 x 600 x 280*	1900 x 600 x 280*
	Outdoor unit	870 x 850 x 319*	870 x 850 x 319*	1258 x 970 x 369*	870 x 850 x 319*
	Control box	380 x 250 x 165	380 x 250 x 165	380 x 250 x 165	380 x 250 x 165*
Weight (kg)	Indoor unit	48.00*	48.00*	48.00*	48.00*
	Outdoor unit	75.00*	75.00*	119.00*	119.00*
	Control box	6.00	6.00	7.00	7.00
Note: 1.The above technical data is for normally supplied products of T1 (-7℃~+43℃) temperature class, rated voltage is 220V AC/50Hz, other voltages are available, such as 220V AC/60Hz, 230V AC/50Hz, 230V AC/60Hz, 240V AC/50Hz, 240V AC/60Hz, 380V AC/50Hz, 380V AC/60Hz etc., please specify when ordering. 2.The above data is only for reference, the actual product shall prevail. 3.Data with “*” are for ference, the specific kinf prevail.
