BDD81 Series Explosion Proof...



Here is the reorganized product information for model BDD81, formatted to match your requested style with H3 headings and no horizontal dividers.

Explosion Protection Type

Standards: CENELEC, IEC, NEC

Zones:

Zone 1 and Zone 2

Zone 21 and Zone 22

Class I, Zone 1 and Zone 2

Class I, Division 1, Groups A, B, C, D

Product Parameters

Explosion protection:

IECEx (Gas and dust): Ex d IIC T4 Gb; Ex t IIIC T130°C Db IP66

ATEX (Gas and dust): II 2 G Ex d IIC T4 Gb; II 2 D Ex t IIIC T130°C Db IP66

Product Type: BDD81

Material:

Enclosure: Copper-free Aluminium Alloy, powder coated surface, yellow (RAL1021)

Transparent cover: Toughened glass, stands 4J impact

Exposed fastener: Stainless steel

Lamp holder: E27

Available lamp and lamp power (W):

Incandescent lamp: 25W, 40W, 60W, 100W

Energy-saving lamp: 9W, 11W (for sealed atmosphere)

LED: 3W, 5W, 8W

Rated luminous flux: 201~1025lm

Rated voltage: 220~240V AC 50/60Hz

Earthing protection: M5 (internal & external earth bolts)

Degree of protection: IP66

Ambient temperature: -40°C~+55°C

Terminal: 3 x 1.5~4mm² (L+N+PE)

Cable entries: 4 x M25 x 1.5 for ceiling type and portable type; 1 x M25 x 1.5 for pendant pole type

Cable glands: DQM-II (Ex d) or DQM-III (Ex d) is recommended

Available cable outer diameter: Φ10~Φ14 (mm)

Weight: 2.5kg~4.5kg

Size: 146x250mm

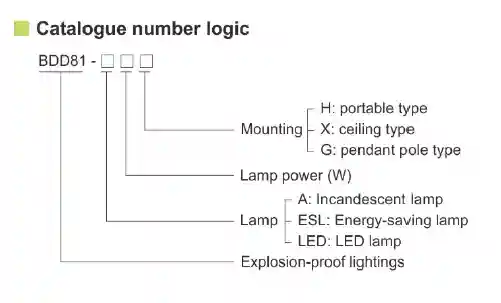

Mounting: X: ceiling type, G: pendant pole type, H: portable type

HS code: 940549

Country of origin: China

Applicable Industries

Explosion-Proof Pendant Light is specifically engineered for a wide range of industries and hazardous environments, including petrochemical, natural gas, coal, metallurgy, military, nuclear power, aerospace, firefighting, pharmaceuticals, textiles, grain & oil, municipal services, public security, shipping, ports, railways and so on.

It incorporates core advantages such as a high-strength explosion-proof structure, excellent sealing performance, high efficiency and energy savings, long service life, corrosion resistance, impact resistance, easy maintenance, and flexible installation. Capable of stable operation under harsh environmental conditions including high temperatures, dusty atmospheres, and corrosive gases, it provides continuous, reliable, safe, and bright lighting assurance for personnel in Hazardous Areas.

Credibility

Warom Explosion-Proof Light Fittings meet the most stringent international standards, carrying full ATEX, IECEx, and EAC certifications to ensure compliance across the global markets. Built to endure extreme conditions, our lighting luminaires boast IP65/IP66/IP67 ratings, being completely waterproof, dustproof and corrosion-resistant. We partner with clients through comprehensive technical support, robust warranty coverage, and global logistics. Wherever you operate, Warom ensures seamless project execution for safe and reliable illumination solutions in hazardous areas.

Warom Explosion-Proof Lighting: Engineered for Global Compliance and Reliability.

FAQ

Q1: Are the explosion-proof pendant lights suitable for outdoor environments?

A: Yes, the product features an IP66 protection rating, enabling it to withstand outdoor rain, snow, and dusty conditions.

Q2: Do you support customization for different voltages?

A: Yes, we support customization and can provide a range of voltages from 110V to 250V among other custom voltage specifications.

Q3: What installation options are available?

A: We offer various flexible installation methods, including pendant mounting, ceiling mounting, and portable installation.
