TECHNICAL DATA
Specifications
|
Explosion Protection:
|
CENELEC,IEC,NEC
|
Can Be Used In:
|
Zone1,2,21,22,Class I,Zone 1,2.Class I,Division 2,Groups A,B,C,D
|
Product Introduction
Specification
| Global (IECEx) | IECEx CQM 11.0042X |
| Gas and dust | Ex db eb IIC T4 Gb
Ex tb IIIC T80℃ Db IP66 |
| Europe (ATEX) | TUV CY 18 ATEX 0206016X |
| Gas and dust |   II 2 G Ex db eb IIC T6 Gb
|
| Certificates | IECEx; ATEX; CU-TR |
| Conformity to standards | EN; IEC |
| Degree of protection | IP66 |
| Ambient temperature | -40℃~+55℃ |
Data
| Material | Copper-free Aluminium Alloy, powder coated surface |
| Built-in components | MCB (miniature circuit breaker) or MCCB (moulded case circuit breaker) Note: earth leakage protection on requestMCB (miniature circuit breaker) or MCCB (moulded case circuit breaker) Note: earth leakage protection on request |

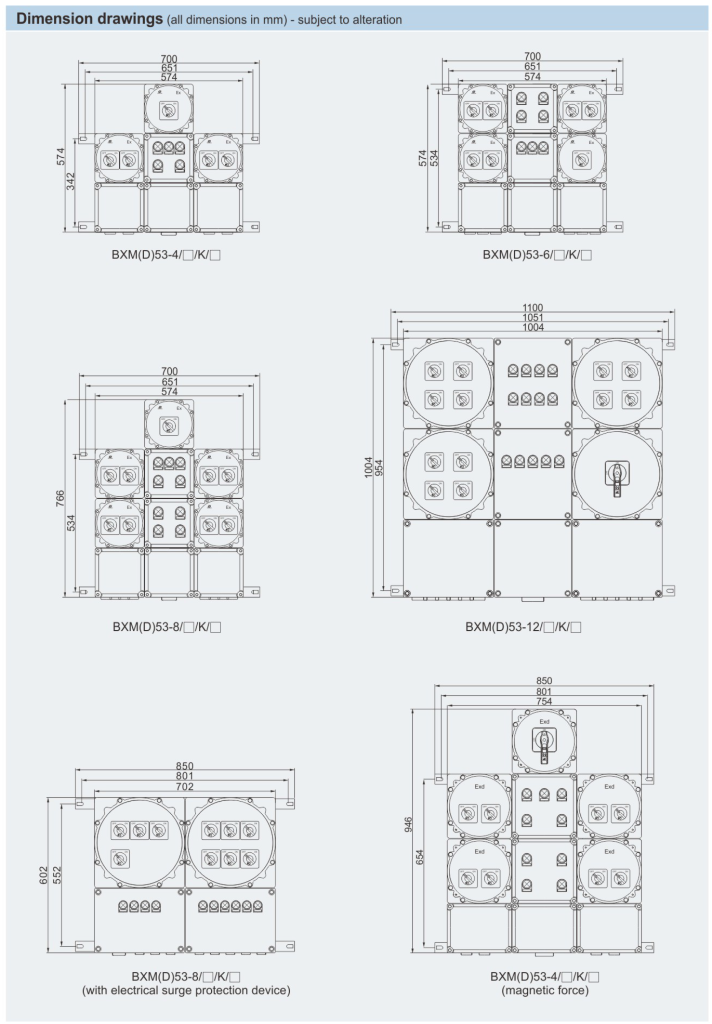

| Dimensions | As per design |
| Cable entries | Standard M囗 x1.5 plug (see the Selection table on P6/10) |
| Cable gland (optional) | DQM-l(Exe)is recommended, Please see P7/19-21 |
| Internal&external earthing | M6/M8 |
| Cable gland (optional) | DQM-I |
| Entry direction | Bottom |
| Mounting | Surface type (standard), Pedestal type (optional) |
