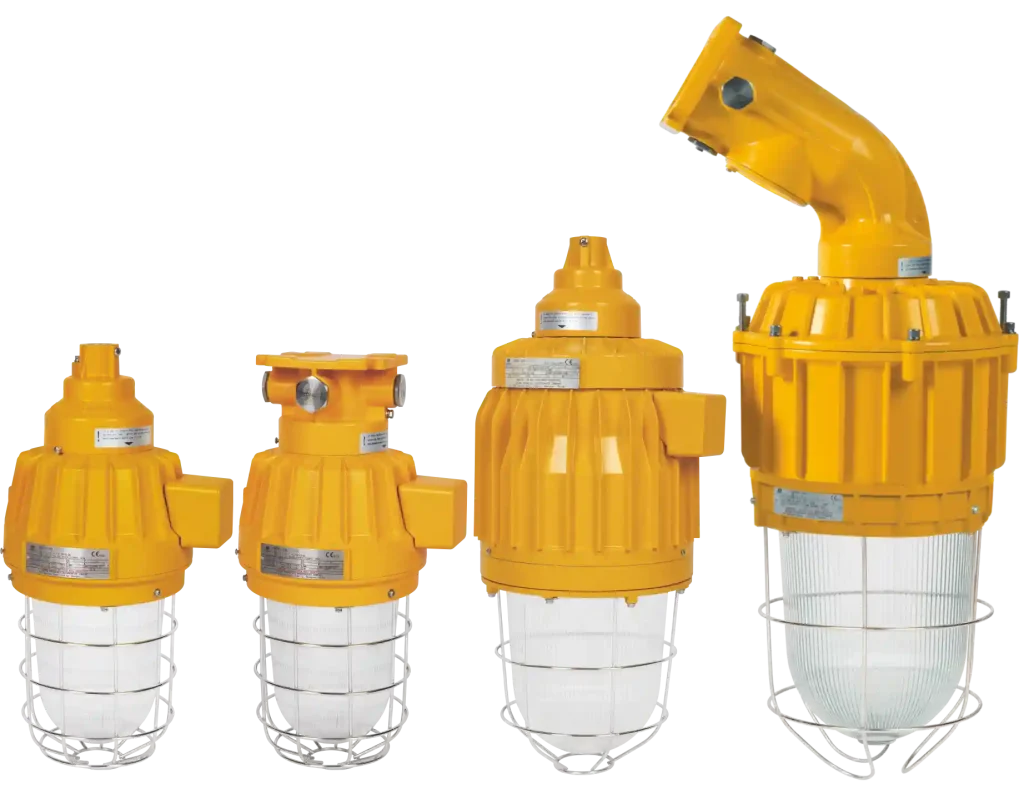

HRD61 Series Explosion Proof...



Explosion Protection Type

Standards: CENELEC, IEC, NEC

Zones:

Zone 1 and Zone 2

Zone 21 and Zone 22

Class I, Zone 1 and Zone 2

Class I, Division 1, Groups A, B, C, D

Product Parameters

Explosion protection:

IECEx (Gas and dust): Ex db IIC T4 or T3 Gb; Ex tb IIIC T130°C or T190°C Db

ATEX (Gas and dust): II 2 G Ex db IIC T4 or T3 Gb; II 2 D Ex tb IIIC T130°C or T190°C Db

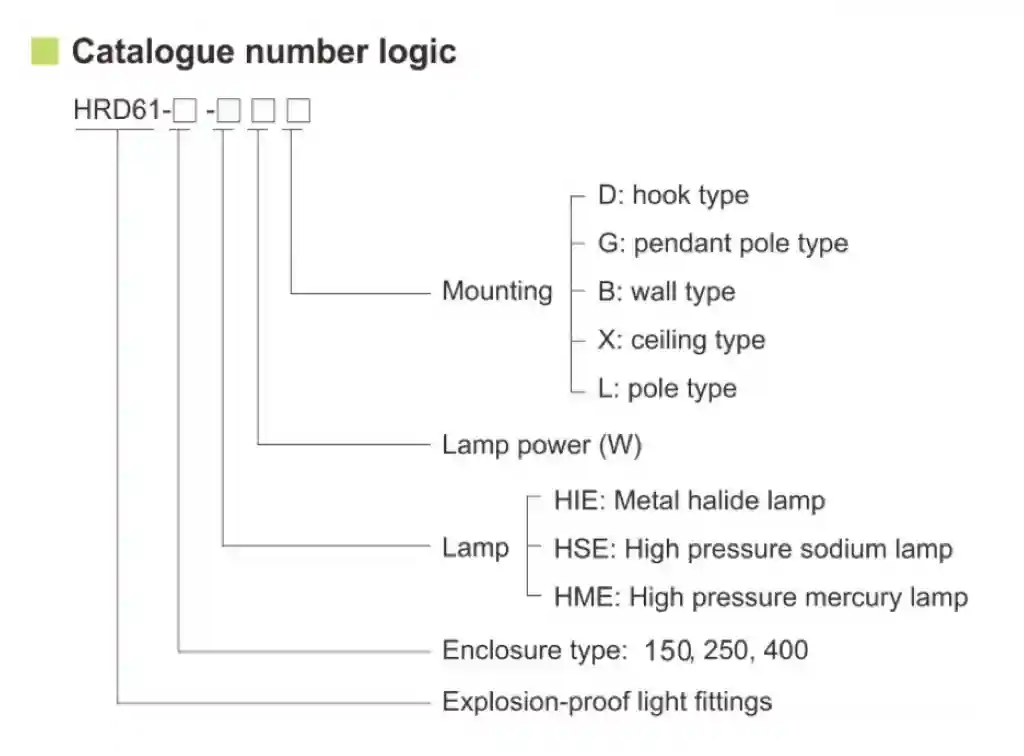

Product Type: HRD61

Material:

Enclosure: Copper-free Aluminium Alloy, powder coated surface, yellow (RAL1021)

Transparent cover: Toughened glass, stands 4J impact

Exposed fastener: Stainless steel

Ballast: Electromagnetic ballast, rapid starting, stable performance

Lamp holder: E27

Available lamp and lamp power: Metal halide lamp (HIE): 70W, 100W, 150W

High pressure mercury lamp (HME): 80W, 125W

High pressure sodium lamp (HSE): 70W, 100W

Rated luminous flux: 5800~13500lm

Rated voltage: 220~240V AC 50Hz (60Hz is optional)

Earthing protection: M5 (internal & external earth bolts)

Degree of protection: IP66

Ambient temperature: T4 or T130°C for Tamb: -60°C~+40°C (HIE, HME)

T3 or T190°C for Tamb: -60°C~+55°C (HIE, HME)

T4 or T130°C for Tamb: -60°C~+55°C (HSE)

Terminal: 3 x 1.5~4mm² (L+N+PE)

Cable entries: 1 x G3/4″ (pendant pole type and hook type)

4 x M25x1.5 (wall type and ceiling type)

1 x G1″ (pole type)

Cable glands: See Mounting type

Available cable outer diameter: Φ10~Φ14 (mm)

Weight: 9.3kg~11.20kg

Size: 237x445mm

Mounting: L: pole type, X: ceiling type, B: wall type, D: hook type, G: pendant pole type

HS code: 940549

Country of origin: China

Applicable Industries

Explosion-Proof Pendant Light is specifically engineered for a wide range of industries and hazardous environments, including petrochemical, natural gas, coal, metallurgy, military, nuclear power, aerospace, firefighting, pharmaceuticals, textiles, grain & oil, municipal services, public security, shipping, ports, railways and so on.

It incorporates core advantages such as a high-strength explosion-proof structure, excellent sealing performance, high efficiency and energy savings, long service life, corrosion resistance, impact resistance, easy maintenance, and flexible installation. Capable of stable operation under harsh environmental conditions including high temperatures, dusty atmospheres, and corrosive gases, it provides continuous, reliable, safe, and bright lighting assurance for personnel in Hazardous Area.

Credibility

Warom Explosion-Proof Light Fittings meet the most stringent international standards, carrying full ATEX, IECEx, and EAC certifications to ensure compliance across the global markets. Built to endure extreme conditions, our lighting luminaires boast IP65/IP66/IP67 ratings, being completely waterproof, dustproof and corrosion-resistant. We partner with clients through comprehensive technical support, robust warranty coverage, and global logistics. Wherever you operate, Warom ensures seamless project execution for safe and reliable illumination solutions in hazardous areas.

Warom Explosion-Proof Lighting: Engineered for Global Compliance and Reliability.

FAQ

Q1: Are the explosion-proof pendant light suitable for outdoor environments?

A: Yes, the product features an IP66 protection rating, enabling it to withstand outdoor rain, snow, and dusty conditions.

Q2: Do you support customization for different voltages?

A: Yes, we support customization and can provide a range of voltages from 110V to 250V among other custom voltage specifications.

Q3: What installation options are available?

A: We offer various flexible installation methods, including pendant mounting, wall mounting, ceiling mounting, and hook installation.
