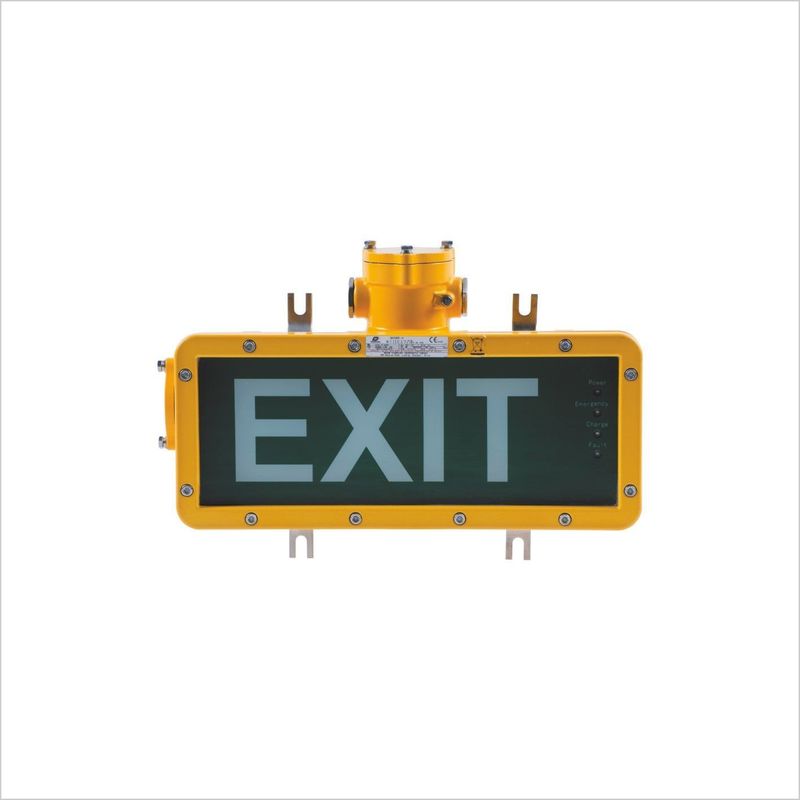

BAYD 85 Series Explosion Proof LED Emergency Exit Lighting Fixtures 4W

Product Details

Place of Origin: China

Brand Name: Warom

Certification: IECEx; ATEX; CU-TR

Model Number: BAYD 85

Payment & Shipping Terms

Packaging Details: carton packing/wooden box package

Payment Terms: T/T

Get Best Price
Contact Now
Specifications
Highlight:

emergency exit lighting fixtures 4w

,

4w led emergency exit lighting fixture

Explosion Protection:
CENELEC,IEC,NEC
Can Be Used In:
Zone1,2,21,22,Class I,Zone 1,2.Class I,Division 1,Groups C,D
Weight:
5.15kg
Rated Capacity:
800mAh
Power Consumption:
4W
Rated Voltage:
100~300V AC 50/60Hz
Explosion Protection:
CENELEC,IEC,NEC
Can Be Used In:
Zone1,2,21,22,Class I,Zone 1,2.Class I,Division 1,Groups C,D
Weight:
5.15kg
Rated Capacity:
800mAh
Power Consumption:
4W
Rated Voltage:
100~300V AC 50/60Hz
Description
BAYD 85 Series Explosion Proof LED Emergency Exit Lighting Fixtures 4W
Product Introduction

20200410161304541.png@!w400




Specification
Global (IECEx) IECEx CQM 16.0032X
Gas and dust

Ex db IIB T6 Gb(-60℃~+60℃)

Ex db IIC T6 Gb(-40℃~+60℃)

Ex tb IIIC T80℃ Db (-60℃~+60℃)

Europe (ATEX) TUV CY 22 ATEX 0206697 X
Gas and dust

20190603152349458.jpg@!w400

 II 2 G Ex db IIB T6 Gb(-60℃~+60℃)



 20190603152349458.jpg@!w400 II 2 G Ex db IIC T6 Gb(-40℃~+60℃)



20190603152349458.jpg@!w400

  II 2 D Ex tb IIIC T80℃ Db IP66(-60℃~+60℃)

Certificates IECEx; ATEX; CU-TR
Conformity to standards EN; IEC
Degree of protection IP66



Data
Enclosure

Copper-free Aluminium Alloy, powder coated surface, yello(RAL1021)

Exposed fastener Stainless steel
Rated voltage 100~300V AC 50/60Hz,100~250V DC,12~48V AC/DC
Lamp LED lamp (working voltage DC 3.6V)
Power consumption 4W
Emergency time 180min
Rated capacity 800mAh
Charging time 16h
Earthing protection M5 (internal & external earth bolts)
Ambient temperature -40℃~+60℃, -60℃~+60℃
Terminal 3 x 1.5~2.5mm² (L+N+PE)
Cable entries

2 x M25 x 1.5  plugs

Cable gland DQM-II (Ex d) or DQM-III (Ex d) is recommended.
Weight 5.15kg



Download

BAYD85 Series Explosion-proof Emergency Exit Light Fittings

(Download here:icon_pdf.gifBAYD85 Series Explosion-proof Emergency Exit Light Fittings.pdf)



Global (IECEx): IECEx CQM 16.0032X

(Download here:icon_pdf.gifIECEx CQM 16.0032X Issue No.1.pdf)
