Product Details
Place of Origin: China
Brand Name: warom
Certification: IECEx;ATEX;CU-TR
Model Number: HRY92-LED
Payment & Shipping Terms
Packaging Details: carton packing/wooden box package
Payment Terms: T/T
LED Colour Temperature: |
5000K |
Lamp Power (W): |
20W,40W,60W |
Explosion Protection: |
IEC,NEC |
Can Be Used In: |
Zone 1,2,21,22 Class I Groups B,C,D |
Two Enclosure Types: |
Type I And Type II Availbale Lamp And Power |
Enclosure: |
In Copper-free Aluminium Alloy,powder Coated Surface,yellow (RAL1021) |
LED Colour Temperature: |
5000K |
Lamp Power (W): |
20W,40W,60W |
Explosion Protection: |
IEC,NEC |
Can Be Used In: |
Zone 1,2,21,22 Class I Groups B,C,D |
Two Enclosure Types: |
Type I And Type II Availbale Lamp And Power |
Enclosure: |
In Copper-free Aluminium Alloy,powder Coated Surface,yellow (RAL1021) |

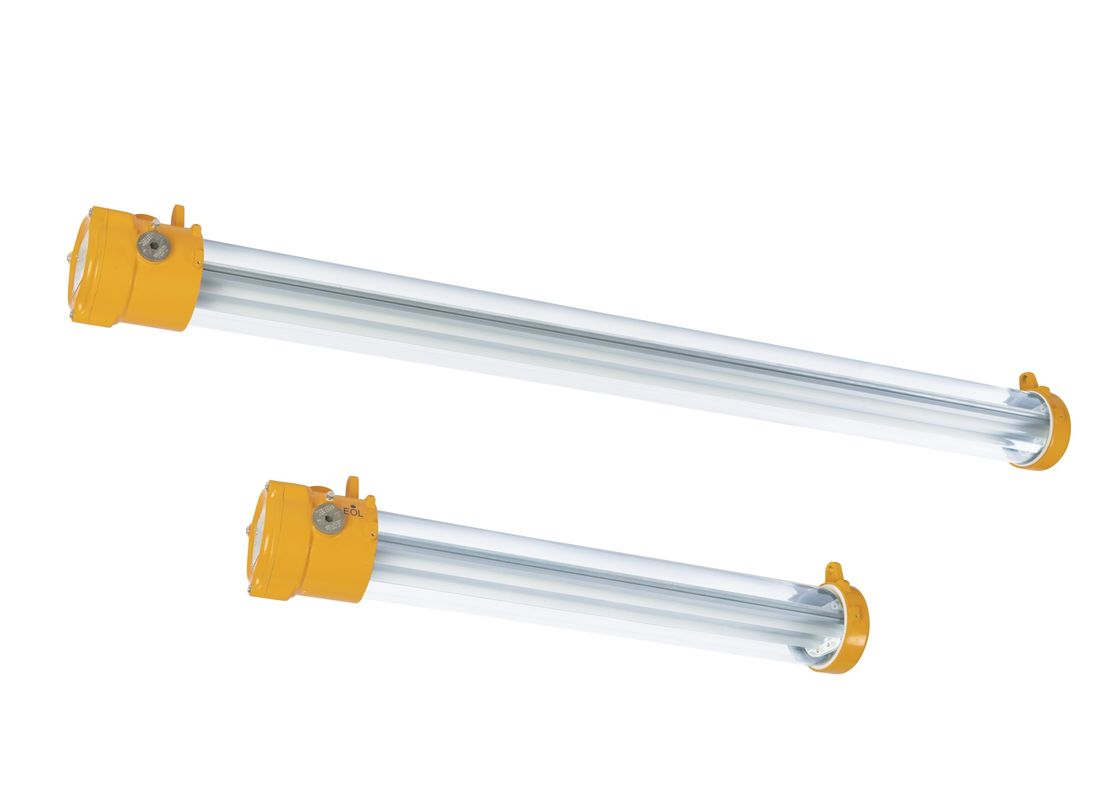

Product Introduction
Specification
| Global(IECEx) | IECEx CQM 24.0040X |
| Gas and dust |
Ex db IIB T6 Gb Ex db IIB+H2 T6 Gb Ex tb IIC T80℃ Db
|
| Europe (ATEX) |
ATEX(applied for) |
| Gas and dust |
|
| Certificates | IECEx,ATEX |
| Conformity to standards | EN.IEC |
| Degree of protection | IP66 |
| Ambient temperature | -60℃~+55℃;-20℃~+55℃ |
Data
| Material |
Copper-free Aluminium Alloy, powder coated surface, yellow (RAL1021) |
| Weight | 5.75~10.33kg |
| Dimensions | 1365x180x165mm |
| Lamp specification | LED module(supplied with the light fittings) |
| Lamp power (W) | 20W,40W,60W |
| LED Colour Temperature | 5000K |
| Rated voltage | 100-277V AC 50/60Hz |
| Earthing protection | M5(interal & external earth bolts) |
| Terminal | 3 x 1.5~4mm2 (L+N+PE) |
| Cable entries | 2 x M25 x 1.5 plugs |
| Cable gland | DQM-II or DQM-III is recommended |
Download
HRY92-LED Series Explosion-proof Light Fittings for Fluorescent Lamp
(Download here:5.HRY92-LED Series Explosion-proof Light Fittings.pdf)
Global (IECEx): IECEx CQM 07.0040X
(Download here:IECEx CQM 24.0040X Issue No.0.pdf)
