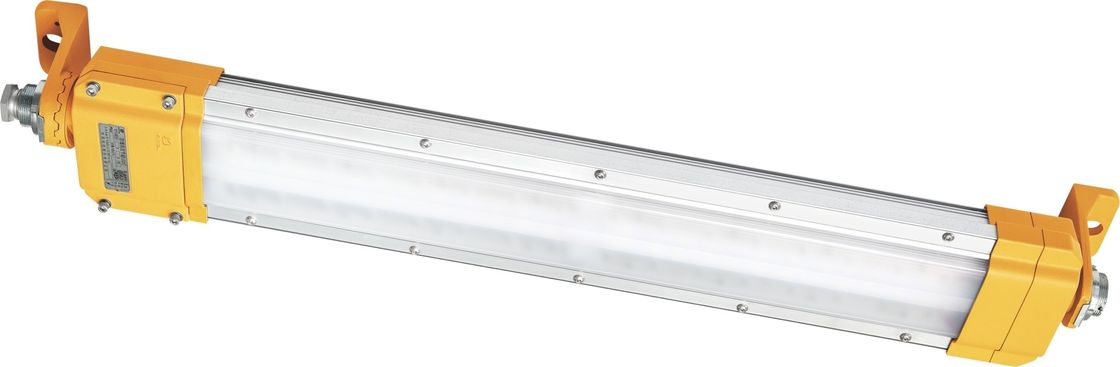

HRY81-QT Series Explosion Proof...
- Product Details
- Place of Origin: China
- Brand Name: Warom
- Certification: IECEx; ATEX;
- Model Number: HRY81-QT
- Payment & Shipping Terms
- Packaging Details: carton packing/wooden box package
- Payment Terms: T/T
TECHNICAL DATA
Specifications
| Explosion Protection: | CENELEC,IEC,NEC | Can Be Used In: | Zone 1, 2,21,22,Class I,Zone 1,2,Class I,Division 2,Group A,B,C,D |
Product Introduction
Specification
| Global (IECEx) | IECEx (applied for) |
| Gas and dust | Ex d e q IIC T4 G
Ex tb IIIC T80℃ Db IP66 |
| Europe (ATEX) | ATEX (applied for) |
| Gas and dust |
II 2 G Ex d e q IIC T4 Gb II 2 D Ex tb IIIC T80℃ Db IP66 |
| Certificates | IECEx; ATEX |
| Conformity to standards | EN; IEC |
| Degree of protection | IP66 |
| Ambient temperature | -40℃~+60℃ |
Data
| Material | Copper-free aluminium, anodicoxidation treatment for surface.
Polycarbonate, 90% light transmission, stands 7J impact |
| Weight | 6.8~9.5kg |
| Dimensions | 1390x170x130mm |
| Lamp specification | T8 tube |
| Lamp power (W) | 18W x 2, 36W x 2 |
| Emergency power (W) | 18W x 1, 36W x 1 |
| Emergency starting time | 0.3s |
| Charging time | 24h |
| Emergency lighting time | 120/180 Mins |
| Rated voltage | 96~254V AC 50/60Hz |
| Rated luminous flux | 2600/6500lm |
| Terminal | 3 x 1.5~4mm2 (L+N+PE) |
| Cable entries | 1 x G3/4″ |
| Available cable outer diameter | Φ10~Φ14 (mm) |
