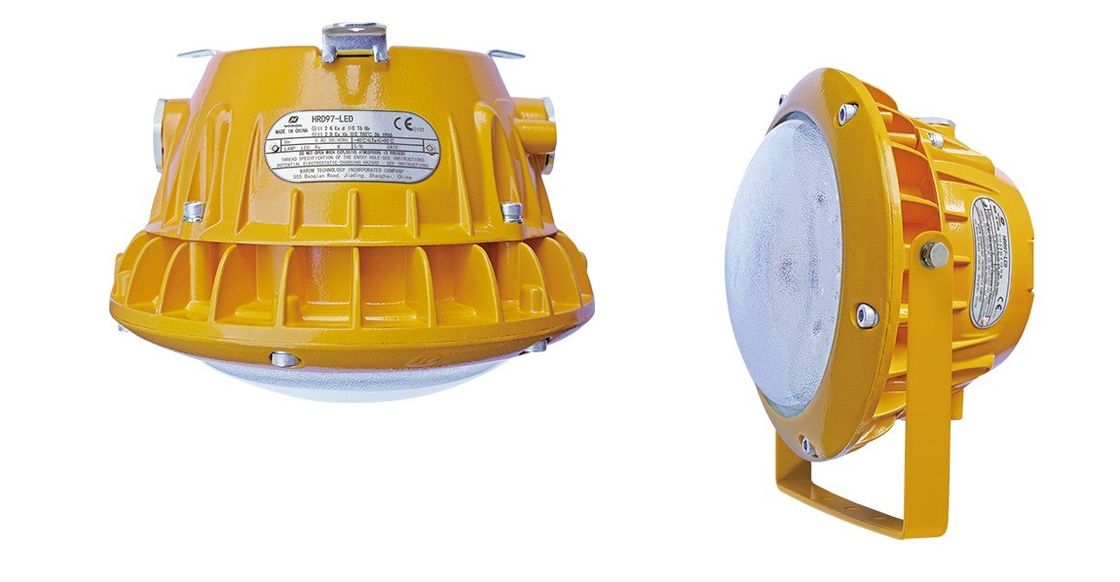

HRD97 Series Explosion Proof...
- ◆ This explosion proof fluorescent light is isolated LED lamp compartment, wide coltage input, CC-CV power controller compartment and terminal compartment, easy to heat dissipation.
- ◆ The LED fluorescent lamp configuration of multiple leds, high lighting efficiency and long service life.
- ◆ Explosion proof fluorescent light fittings has a long service life and low maintenance cost, up to 100,000 hours.
TECHNICAL DATA
Explosion Protection Type
| Standards: CENELEC, IEC, NEC |
| Zones: Zone 1 and Zone 2 Zone 21 and Zone 22 Class I, Zone 1 and Zone 2 Class I, Division 2, Groups A, B, C, D |
Product Parameters
| Explosion protection：IECEX(Gas and dust): Ex db op is IIC T□1) Gb Ex tb op is IIIC T□1) Db IP66 ATEX(Gas and dust): II 2 G Ex db op is IIC T□1) Gb II 2 D Ex tb op is IIIC T□1) Db IP66 |
| Product Type: HRD97 |
| Material: Enclosure: Copper-free aluminium alloy, powder coated surface, yellow (RAL1021) Glass cover: Toughened glass, stands 4J impact Exposed fastener: Stainless steel |
| LED driver: Wide voltage input, CC-CV (constant current – constant voltage) output, power factor ≥0.95, with function of distributed current, constant current, surge-proof and antielectromagnetic interference, and protection against overcurrent, open circuit, and short circuit. |
| Lamp specification: LED module, Multiple LED |
| Lamp power: 60W, 90W |
| Color rendering index: ≥80 |
| Colour temperature: 5700K |
| Rated luminous flux: 7200~19250lm |
| Earthing protection: M5 (internal & external earth bolts) |
| Rated voltage: 100~277V AC 50/60Hz, 130~250V DC |
| Degree of protection：IP66 |
| Ambient temperature：-40℃~+55℃(+40℃) |
| Terminal: 3 x 1.5~4mm2 (L+N+PE) |
| Cable entries: 1 x M25 x 1.5 (hook type, pole type, pendant pole type) 2 x M25 x 1.5 (bracket type) 4 x M25 x 1.5 (wall type, ceiling type) |
| Cable gland: DQM-II (Ex d) or DQM-III (Ex d) is recommended. Please see P7/22~31 |
| Weight: 9.3kg~27.5kg |
| Size: 278x278x335mm |
| Mounting：Bracket type, hook type, pole type, pendant pole type, wall type, ceiling type |
| HS code: 940549 |
Applicable Industries
Country of origin: China
Credibility
Explosion-Proof Fluorescent Luminaire is specifically engineered for a wide range of industries and hazardous environments, including petrochemical, natural gas, coal, metallurgy, military, nuclear power, aerospace, firefighting, pharmaceuticals, textiles, grain & oil, municipal services, public security, shipping, ports, railways and so on.
It incorporates core advantages such as a high-strength explosion-proof structure, excellent sealing performance, high efficiency and energy savings, long service life, corrosion resistance, impact resistance, easy maintenance, and flexible installation. Capable of stable operation under harsh environmental conditions including high temperatures, dusty atmospheres, and corrosive gases, it provides continuous, reliable, safe, and bright lighting assurance for personnel in Hazardous Area.
FAQ
For more detailed information on our explosion-proof fluorescent lighting fixtures, customized solutions, or to request a quote, please do not hesitate to contact us. We are committed to providing you with professional lighting solutions and comprehensive technical service support.
