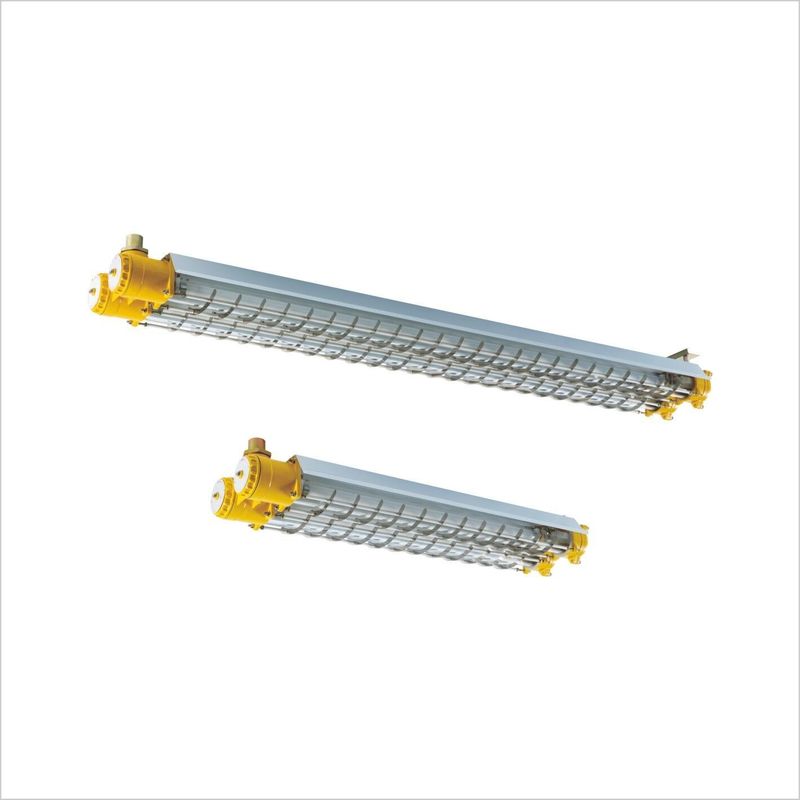

HRY52 Series Explosion Proof...
- Product Details
- Place of Origin: China
- Brand Name: Warom
- Model Number: HRY52
- Payment & Shipping Terms
- Packaging Details: carton packing/wooden box package
- Payment Terms: T/T
TECHNICAL DATA
Specifications
| Explosion Protection To: | IEC,NEC | Can Be Used In: | Zone 1,2,21,22 |
| Enclosure: | In Copper-free Aluminium Alloy,powder Coated Surface,yellow | Degree Of Protection: | IP66 |
| Weight: | 3.9~12.7kg | Dimensions: | 1470x168x104mm |
Product Introduction
Specification
| CNEx(China) | CNEx(China) |
| Gas and dust |  II 2 G Ex d IIC T6 Gb |
 Ex tD A21 IP66 T80℃ | |
| Certificates | PCEC(China) |
| Conformity to standards | IEC |
| Degree of protection | IP66 |
| Ambient temperature | -20℃~+55℃ |
Data
| Material | Copper-free Aluminium Alloy, powder coated surface, yellow (RAL1021) |
| Weight | 3.9~12.7kg |
| Dimensions | 1470x168x104mm |
| Lamp specification | T8 fluorescent lamp(supplied with the light fittings) LED module(supplied with the light fittings) |
| Lamp power (W) | T8:18W x 1, 36W x 1,18W x 2, 36W x 2 LED:9W x 1, 18W x 1,9W x 2, 18W x 2 |
| LED Colour temperature | 5000K |
| Rated voltage | 220~240V AC 50/60Hz |
| Earthing protection | M5 (internal & external earth bolts) |
| Terminal | 3 x 1.5~2.5mm2(L+N+PE) |
| Cable entries | 1×G3/4″ |
| Cable gland(optional) | See Mounting Accessories & Spare Parts Table |
