Product Details
Place of Origin: China
Brand Name: Warom
Certification: CCS,BV,ABS
Model Number: CXH5-1□L LED
Payment & Shipping Terms
Packaging Details: carton packing/wooden box package
Payment Terms: T/T
Application: |
Suitable For Day And Night Navigation Signal Of Ships Whose Length Is 50m (or Above) |
Housing: |
Brass Material |
Cover: |
Toughened Glass |
Electric: |
Constant Current Constant Voltage Drive Power, Wide Voltage Input CXH5-1SL Single Color CXH5-1DL Double Color CXH5-1TL Triple Color CXH5-1DL、CXH5-1TL Switch Luminous Colors Through The Controller |
Application: |
Suitable For Day And Night Navigation Signal Of Ships Whose Length Is 50m (or Above) |
Housing: |
Brass Material |
Cover: |
Toughened Glass |
Electric: |
Constant Current Constant Voltage Drive Power, Wide Voltage Input CXH5-1SL Single Color CXH5-1DL Double Color CXH5-1TL Triple Color CXH5-1DL、CXH5-1TL Switch Luminous Colors Through The Controller |
| Technical parameters | |
| Conformity to standards | Conform to the International Regulations for Preventing Collisions at Sea, 1972, Rules for Classification of Sea-going Steel Ships, IEC60598 and GB/T 3028, CCS standard |
| Ambient temperature | -40℃~+55℃ |
| Light source | LED module |
| Degree of protection | IP66 |
| Cable entris | 2xFQM-IV, M25x1.5 gland (Nickel plated brass), suitable for Ф 10-Ф 18mm cable |
| Terminal | 1.5~2.5mm2 |

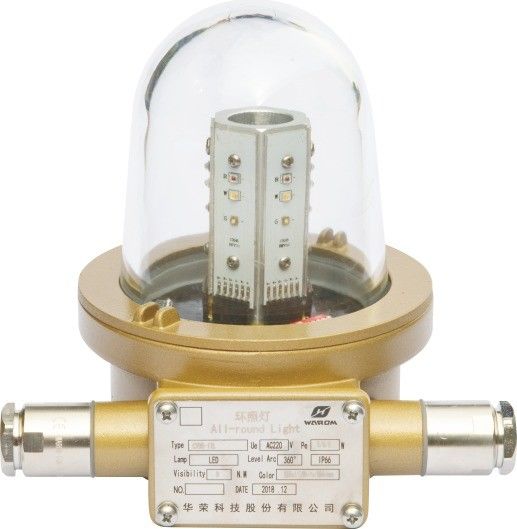

CXH5-1□L LED Signal Light
(Download here:CXH5-1L LED Signal Light.pdf)
