Product Details
Place of Origin: China
Brand Name: WAROM
Certification: IECEx; ATEX;

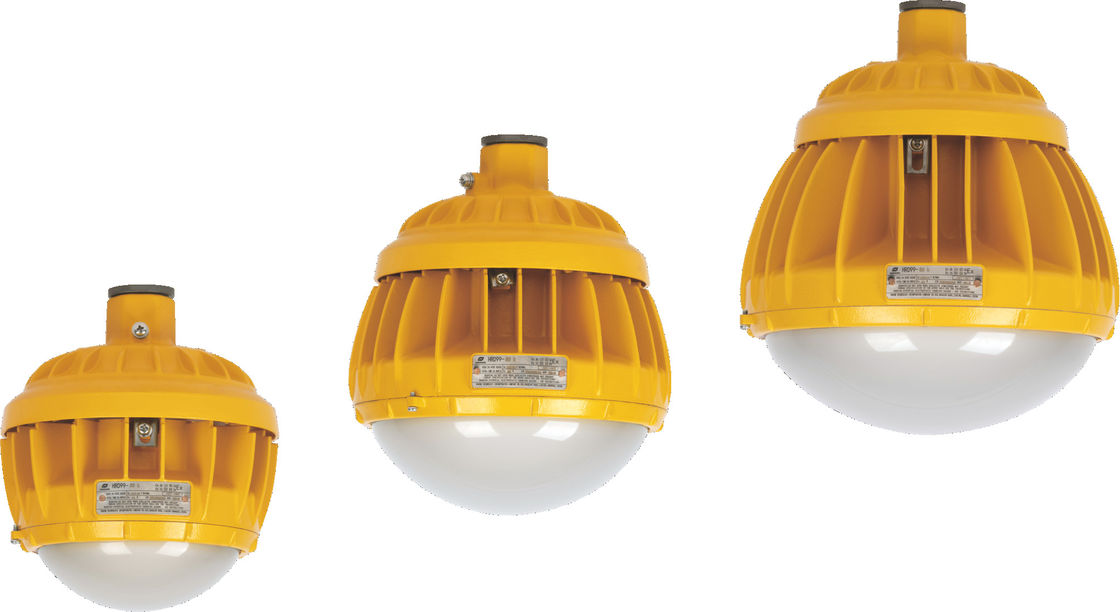

Model Number: HRD99
Payment & Shipping Terms
Can Be Used In: |
Zone1,2,21,22,Class I,Zone 1,2.Class I,Division 1,Groups A,B,C,D |
Applicable Lamp And Power(max.100W): |
LED:20W,30W,50W,70W,80W,100W |
Isolated LED Lamp Compartment: |
CC-CV( Constant Current-constant Voltage)power Controller Compartment And Terminal Compartment;Wind-convection Heat Dissipation Structure. |
Can Be Used In: |
Zone1,2,21,22,Class I,Zone 1,2.Class I,Division 1,Groups A,B,C,D |
Applicable Lamp And Power(max.100W): |
LED:20W,30W,50W,70W,80W,100W |
Isolated LED Lamp Compartment: |
CC-CV( Constant Current-constant Voltage)power Controller Compartment And Terminal Compartment;Wind-convection Heat Dissipation Structure. |
Specification
| Global (IECEx) | IECEx(applied for) |
| Gas and dust | Ex db lIB T6/T5 Gb Ex db lIC T6/T5 Gb Ex tb lIIC T80℃/T95℃ Db |
| Europe(ATEX) | ATEX (applied for) |
| Gas and dust |
|
| Certificates | IECEx; ATEX; |
| Conformity to standards | EN; IEC |
| Degree of protection | IP66 |
Data
| Material | Enclosure:Copper-free aluminium alloy, powder coated surface, yellow Transparent cover:(RAL1021)Polycarbonate,stands 4J impact
|
| Lamp specification | Integrated LED, Multiple LED |
| Lamp power (W) | 20W, 30W, 50W,7OW, 8OW, 100W |
| Colour temperature (CCT) | 5700K Note: cool white is available in general. Warm white or nature white is optional. |
| Colour rendering index (Ra) | ≥80 |
| Ambient temperature | IIB T6/IIIC T80℃ for Tamb:-40℃~+40℃ IIB T5/IIIC T95℃ for Tamb:-40℃~+58℃ IIC T6 for Tamb:-20℃~+40℃ IIC T5 for Tamb:-20℃~+58℃ |
| Rated voltage | 220~240VAC 50160Hz,24~48V DC |
| Terminal | 3 x 1.5~4mm2 (L+N+PE) |
| Cable entries | M25 x 1.5 |
| Available cable outer diameter | Φ10~Φ14 (mm) |
BnY81-LED Series Explosion-proof Light Fittings for Fluorescent Lamp
(Download here:HRD99 Series Explosion-proof LED Lightings.pdf)
