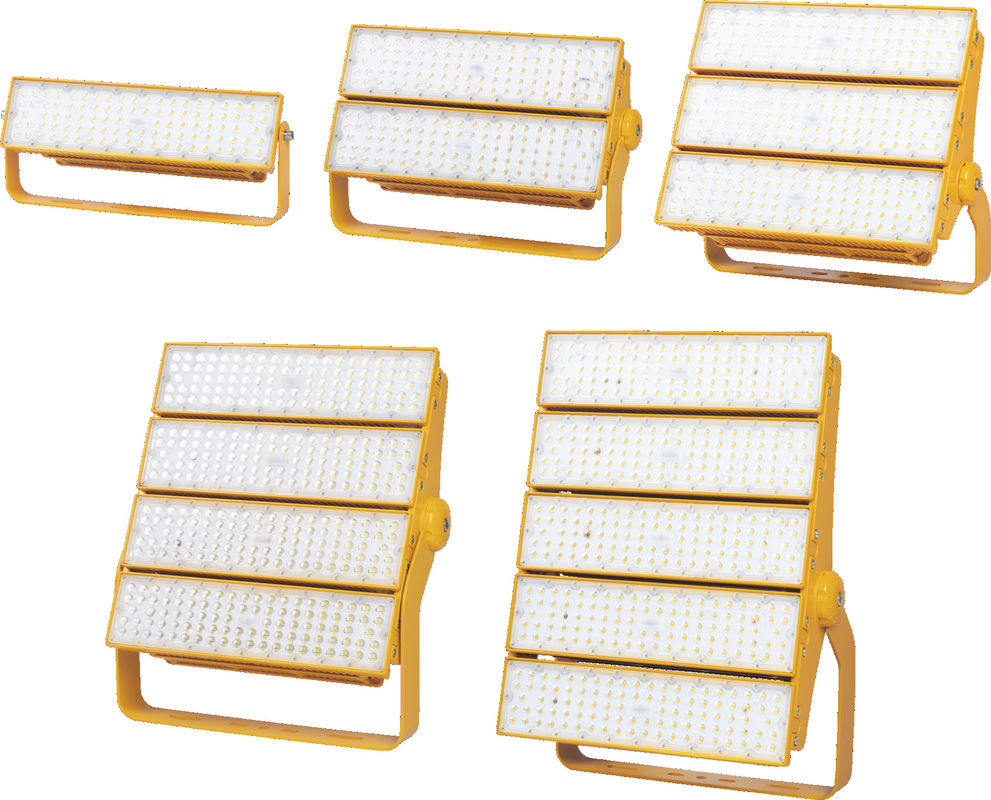

Product Details
Place of Origin: China
Brand Name: WAROM
Certification: IECEx; ATEX;
Model Number: HTR97
Payment & Shipping Terms
Can Be Uesd In: |
Zone 2,21 22 Class I,Zone 2,Class I,Division 2,Groups A,B,C,D |
Applicable Lamp And Power: |
LED:200W,400W,600W,800W,1000W |
Two Types Of Light Distribution: |
Spotlight And Floodlight,which Can Be Selected On Request |
Can Be Uesd In: |
Zone 2,21 22 Class I,Zone 2,Class I,Division 2,Groups A,B,C,D |
Applicable Lamp And Power: |
LED:200W,400W,600W,800W,1000W |
Two Types Of Light Distribution: |
Spotlight And Floodlight,which Can Be Selected On Request |
Specification
| Global (IECEx) | IECEx(applied for) |
| Gas and dust |
Ex ec mc llC T4/T3 Gc |
| Europe(ATEX) | ATEX (applied for) |
| Gas and dust |
|
| Certificates | IECEx; ATEX; |
| Conformity to standards | EN; IEC |
| Degree of protection | IP66 |
Data
|
Material |
Enclosure:Copper-free Aluminium Alloy, powder coated surface, Glass cover:Polycarbonate,stands 4Jimpact LED driver:Wide voltage input, CC-CV (constant current - constant voltage) output, power factor 20.95with function of distributed current, constant current,surge-proof and anti-electromagneticinterference, and protection against overcurrent, open circuit, and short circuit. Exposed fastener:Stainless steel |
| Lamp specification | LED module, Multiple LED |
| Lamp power (W) | 200W, 400W, 600W,80OW, 1000W |
| Colour temperature (CCT) |
5000K Note: nature white is available in general. Warm white is optional. |
| Colour rendering index (Ra) | ≥80 |
| Ambient temperature | T4/T130℃for tamb:-60℃~+40℃ T3/T195℃for tamb:-60℃~+60℃ |
| Emergency lighting time | 120/180 Mins |
| Rated voltage | 100~277VAC 50/60Hz.150~250VDC |
| Terminal | 3 x 1.5~4mm2 (L+N+PE) |
| Cable entries | 1x M20 x1.5 cable gland (DQM-l Ex e)(M25 x 1.5 is optional) |
BnY81-LED Series Explosion-proof Light Fittings for Fluorescent Lamp
(Download here:HRT97 Series Explosion-proof LED Floodlights.pdf)
