Product Details
Place of Origin: China
Brand Name: WAROM
Certification: IECEx; ATEX;
Model Number: HRT99
Payment & Shipping Terms
Payment Terms: T/T
Can Be Used In: |
Zone1,2,21,22,Class I,Zone 1,2.Class I,Division 2,Groups A,B,C,D |
Applicable Lamp And Power: |
LED:80W,100W,120W,160W,200W,240W |
Can Be Used In: |
Zone1,2,21,22,Class I,Zone 1,2.Class I,Division 2,Groups A,B,C,D |
Applicable Lamp And Power: |
LED:80W,100W,120W,160W,200W,240W |
Product Introduction
| Global (IECEx) | IECEx (applied for) |
| Gas and dust |
Ex db eb IIC T6/T5 Gb Ex tb IIIC T80℃/T95℃ Db |
| Europe (ATEX) | ATEX(applied for) |
| Gas and dust |
|
| Certificates | IECEx; ATEX; |
| Conformity to standards | EN; IEC |
| Degree of protection | IP66 |
| Ambient temperature |
T6/T80℃ for tamb:-40℃~+40℃ T5/T95℃ for tamb:-40℃-+60℃ |
| Material |
Copper-free aluminium, powder coated surface, yellow (RAL1021) Toughened glass, stands 4J impact |
| Lamp specification | LED module, Multiple LED |
| Lamp power (W) | 80W,100W,120W,160W,200W,240W |
| Rated voltage | 220~240V AC 50/60Hz,24~48V DC(80W,100W,120W) |
| Earthing protection | M5(Internal & External earth bolts) |
| Terminal | 3 x 1.5~6mm2 (L+N+PE) |
| Cable entries |
1x M20 x 1.5 cable gland (DQM-| Ex e)(M25 x 1.5 is optional) |

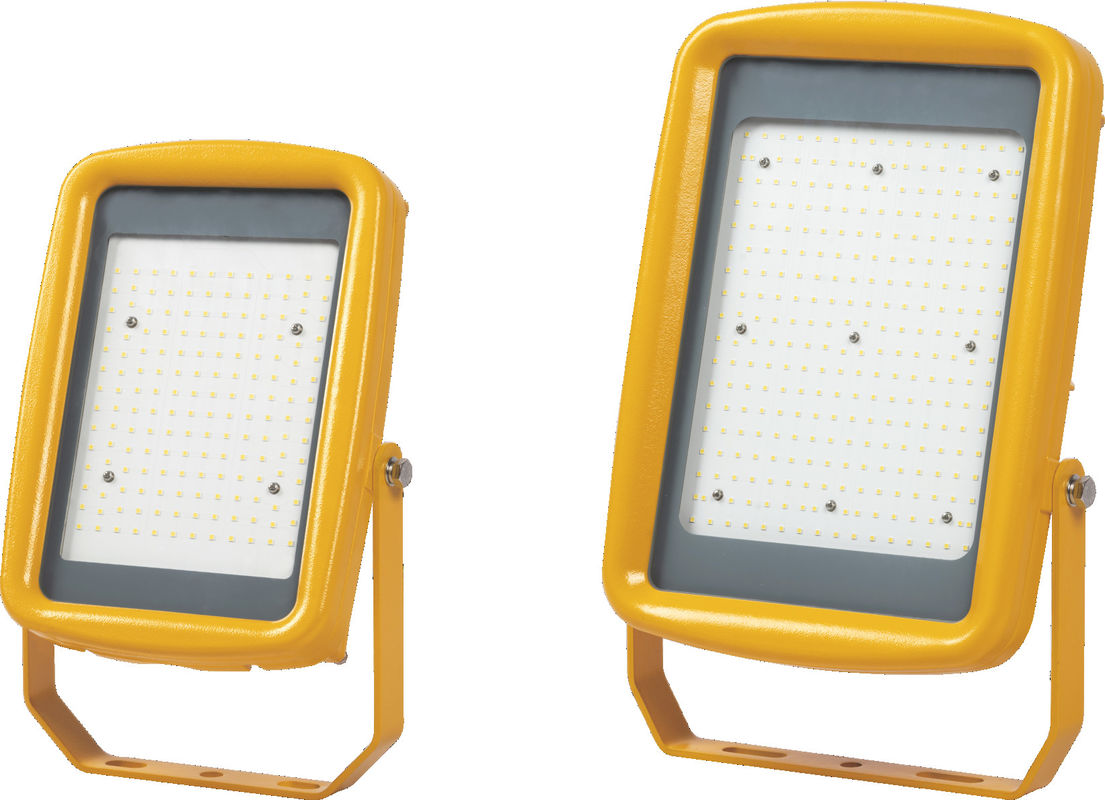

HRD95 Series Explosion-proof LED Lightings
(Download here:HRT99 Series Explosion-proof LED Floodlights.pdf)
