Product Details
Place of Origin: CHINA
Brand Name: WAROM
Certification: IECEX,ATEX
Model Number: BAJ52-6
Payment & Shipping Terms
Payment Terms: T/T
Can Be Uesd In: |
Zone 1 And Zone 2 Zone 21 And Zone 22 Class I Zone 1 And Zone 2 Class I ,Division 1,Groups A,B,C,D |
Enclosure In: |
Copper-free Aluminium Alloy, Powder Coatedsurface, Yellow (RAL1021). |
Feature: |
Emergency Device With Ni-CD Batteries, Charging Automatically;when Power Supply Is Cut Off, The Emerqency Device Startsto Work: With Overcharge And Overdischarge Protection. |
Can Be Uesd In: |
Zone 1 And Zone 2 Zone 21 And Zone 22 Class I Zone 1 And Zone 2 Class I ,Division 1,Groups A,B,C,D |
Enclosure In: |
Copper-free Aluminium Alloy, Powder Coatedsurface, Yellow (RAL1021). |
Feature: |
Emergency Device With Ni-CD Batteries, Charging Automatically;when Power Supply Is Cut Off, The Emerqency Device Startsto Work: With Overcharge And Overdischarge Protection. |
| Global (IECEx) | IECEx (applied for) |
| Gas and dust | Ex db llC T6 Gb Ex tb lllC T80℃ Gb |
| Europe (ATEX) | ATEx (applied for) |
| Gas and dust |
ll 2 G Ex db IIC T6 Gb
II 2 D Ex tb IIIC T80℃ Db |
| Certificates | IECEx; ATEX |
| Conformity to standards | EN; IEC |
| Degree of protection | IP66 |
| Available lamp | Halogen tungsten lamp (LED on request) |
| Lamp power (W) | 2 x 3W |
| Emergency time | 180min |
| Rated luminous flux | 2 x 300lm |
| Description | Ni-CD battery |
| Rated capacity | 4Ah |
| Rated voltage | 3.6V |
| Charging time | 24h |
| Ambient temperature | -40℃~+60℃ |
| Terminal | 3 x 1.5~2.5mm2 (L+N+PE) |
| Cable entries | 2 x M25 x 1.5 plugs |
| Cable gland (optional) | DQM-II (Ex d) or DQM-III (Ex d) is recommended. |
| Weight | 8kg |

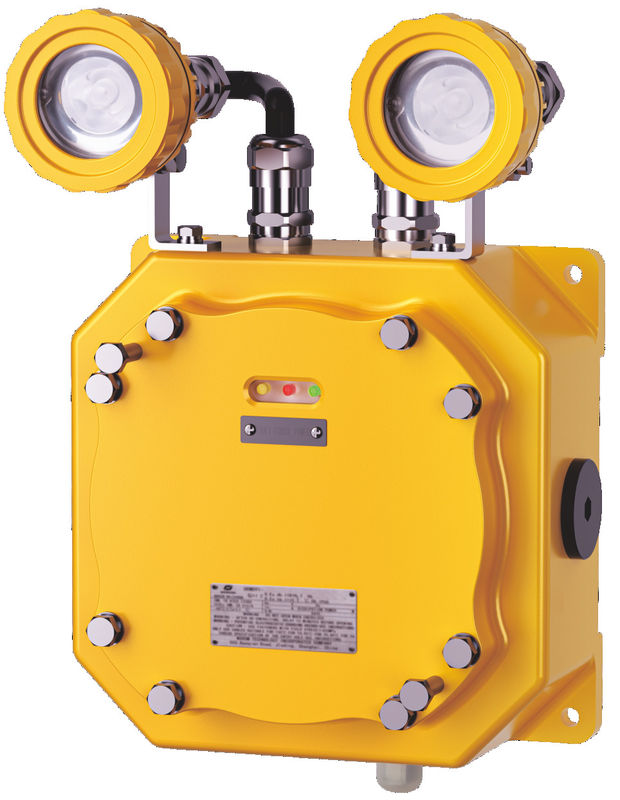

BAJ52-20 Explosion-proof emergency light fittings
(Download here:BAJ52-6 Series Explosion-proof Emergency Light Fittings.pdf)
